Ensuring Product Durability with ASTM B117 Salt Spray Tests: A Critical Evaluation of Accelerated Corrosion Testing

Introduction to Accelerated Corrosion and Its Industrial Imperative

The long-term reliability and functional integrity of manufactured components are non-negotiable prerequisites across virtually all industrial sectors. Among the myriad environmental stressors that can degrade materials, corrosion stands as a pervasive and economically debilitating phenomenon. The annual global cost of corrosion is measured in trillions of dollars, encompassing direct replacement expenses, unplanned downtime, safety compromises, and environmental contamination. For product designers, materials engineers, and quality assurance professionals, the ability to predict and mitigate corrosion is therefore paramount. Laboratory-based accelerated corrosion testing, specifically standardized salt spray (fog) testing, serves as a fundamental tool in this endeavor. By simulating years of environmental exposure within a condensed timeframe, these tests provide invaluable comparative data on the protective qualities of coatings, platings, and base materials. This technical article examines the role of the ASTM B117 salt spray test in ensuring product durability, detailing its methodology, applications across key industries, and the critical importance of precise, reliable testing equipment, with specific reference to the LISUN YWX/Q-010X Salt Spray Test Chamber.

Foundational Principles of the ASTM B117 Standard Test Method

ASTM B117, “Standard Practice for Operating Salt Spray (Fog) Apparatus,” is arguably the most widely recognized and historically established standard for accelerated corrosion testing. Its objective is not to replicate real-world corrosion in a precise, quantitative manner, but to create a controlled, reproducible corrosive environment. This allows for the qualitative ranking of relative corrosion resistance among different materials or coating systems when exposed under identical conditions. The fundamental principle involves the continuous atomization of a 5% sodium chloride (NaCl) solution into a fine fog within an enclosed test chamber maintained at a constant temperature of 35°C (±1.1°C or 2°F). The collected solution within the chamber maintains a pH between 6.5 and 7.2. Test specimens are positioned at an angle (typically 15° to 30° from vertical) to ensure uniform condensation and prevent pooling, which could lead to unrepresentative corrosion patterns. Exposure duration is variable, ranging from 24 hours for rapid comparative checks to 1000 hours or more for highly critical applications. The evaluation of results is primarily visual, assessing the time to the appearance of white rust (zinc corrosion products) or red rust (iron oxide), the extent of blistering, or the creepage of corrosion from scribed lines.

Limitations and Complementary Testing Protocols

A rigorous understanding of ASTM B117 necessitates acknowledging its inherent limitations. The test produces a constant, unvarying corrosive environment, which differs significantly from natural atmospheric conditions that involve cyclic wet-dry phases, UV radiation, and pollutant variations. Consequently, a material’s performance in a salt spray test does not always correlate directly with its real-world service life. It is most effectively used as a quality control check to ensure process consistency and to detect gross deficiencies in coating thickness, porosity, or adhesion. For more correlative predictive testing, cyclic corrosion tests (CCT) such as those outlined in standards like ASTM G85, SAE J2334, or ISO 16701 are increasingly employed. These protocols introduce phases of humidity, drying, and sometimes sub-zero temperatures, creating a more realistic simulation of service environments. However, the simplicity, reproducibility, and extensive historical data library associated with ASTM B117 ensure its continued, indispensable role in material qualification and supplier validation processes.

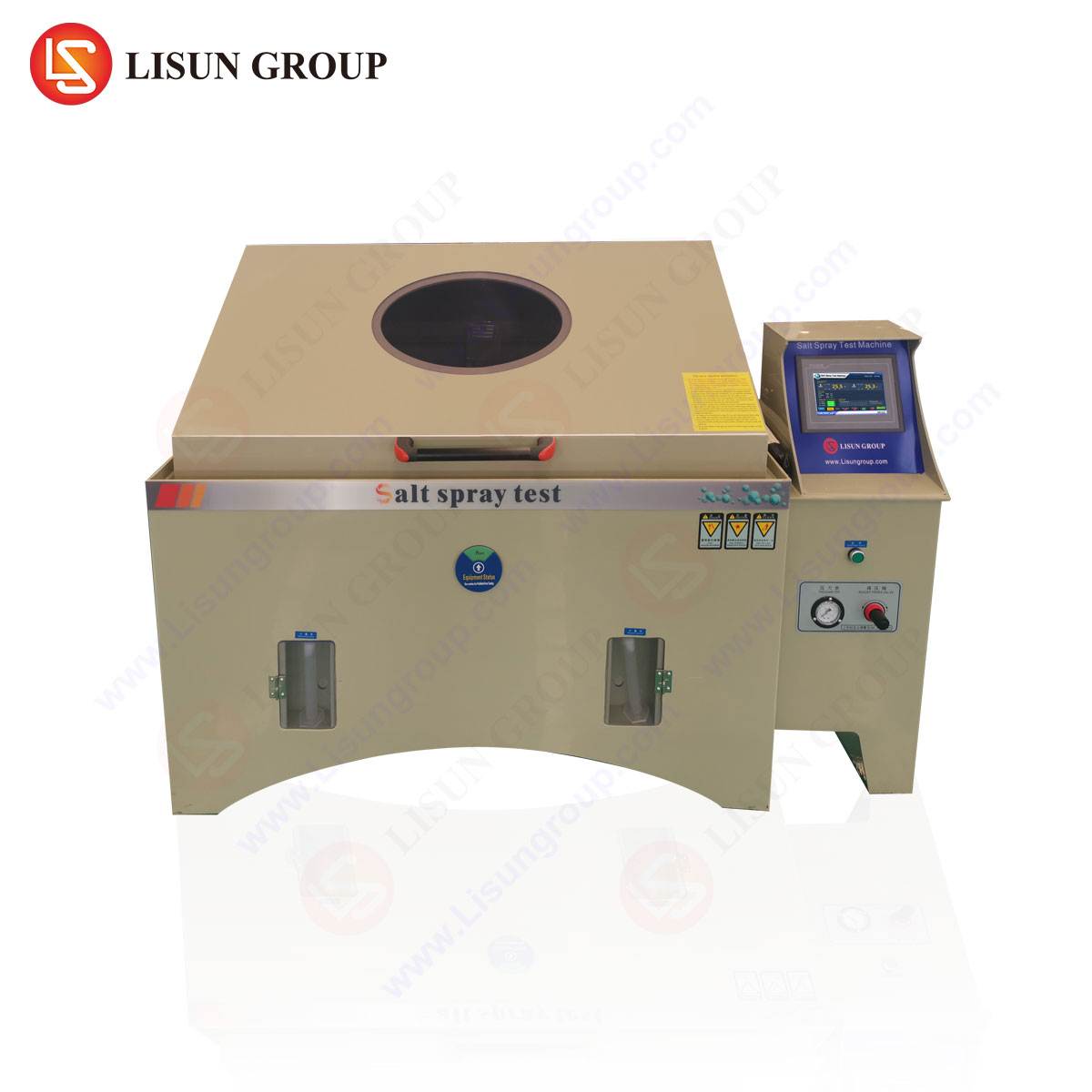

Instrumentation for Reproducibility: The LISUN YWX/Q-010X Salt Spray Test Chamber

The validity of any standardized test hinges on the precision and reliability of the equipment used to execute it. The LISUN YWX/Q-010X Salt Spray Test Chamber is engineered to meet and exceed the stringent requirements of ASTM B117, along with other related standards such as ISO 9227, JIS Z 2371, and GB/T 2423.17. This apparatus is designed to provide the stable, consistent environment critical for generating reproducible and comparable test data.

The chamber’s construction utilizes imported corrosion-resistant PVC plastic for the main body, ensuring long-term resistance to the aggressive saline environment. The temperature control system employs a PID (Proportional-Integral-Derivative) algorithm for precise thermal regulation, maintaining the 35°C chamber temperature with minimal deviation. The heart of the system is its atomization system, which features a specialized nozzle designed to generate a uniform, fine salt fog with consistent droplet size and distribution. The chamber includes a built-in saturated air barrel, which pre-heats and humidifies the compressed air used for atomization, preventing a cooling effect within the chamber and ensuring the salt solution meets the specified pH and concentration parameters upon collection.

Technical Specifications and Operational Advantages

Key specifications of the YWX/Q-010X include a standard test volume of 108 liters, suitable for a wide range of component sizes. Its temperature range is ambient +5°C to 55°C, with a resolution of 0.1°C. The salt solution reservoir is constructed of SUS 304 stainless steel, and the chamber incorporates a pneumatic lid opening mechanism for ease of access. From an operational standpoint, the YWX/Q-010X offers several competitive advantages. Its digital microcontroller provides intuitive programming and real-time monitoring of test parameters, including temperature, test duration, and solution level. The design emphasizes low maintenance, with accessible components for cleaning and calibration. Furthermore, its construction quality ensures minimal temperature stratification within the workspace, guaranteeing that all specimens are subjected to identical environmental conditions—a critical factor often overlooked in inferior equipment.

Industry-Specific Applications and Use Cases

The application of ASTM B117 testing via equipment like the LISUN YWX/Q-010X spans a vast industrial landscape, each with unique durability requirements.

• Automotive Electronics and Components: Modern vehicles contain hundreds of electronic control units (ECUs), sensors, and connectors. Salt spray testing validates the corrosion resistance of housing seals, printed circuit board (PCB) conformal coatings, and the terminal plating on connectors. A failure in a brake system sensor or engine management module due to corrosion can have severe safety implications.
• Electrical and Electronic Equipment & Industrial Control Systems: Outdoor enclosures for power distribution, industrial programmable logic controllers (PLCs), and motor drives are exposed to harsh atmospheres. Testing ensures that powder coatings, galvanized steel cabinets, and gasket materials can withstand corrosive ingress, preventing short circuits and system failures.
• Aerospace and Aviation Components: While aerospace often employs more severe exfoliation or stress corrosion cracking tests, ASTM B117 is used for qualifying non-critical structural fasteners, cabin fixture platings, and the protective finishes on avionics bay components against general atmospheric corrosion.
• Lighting Fixtures: Outdoor and roadway lighting fixtures, particularly those in coastal or de-icing salt environments, are subjected to rigorous salt fog testing. This evaluates the integrity of aluminum housings, the performance of anodized or painted finishes, and the seal of polycarbonate lenses.
• Medical Devices: For devices used in sterile processing or in certain clinical environments, corrosion resistance is vital for longevity and hygiene. Components of surgical tools, imaging device housings, and portable diagnostic equipment may be tested to ensure coatings remain intact and free from corrosive byproducts.
• Telecommunications Equipment: 5G enclosures, coastal antenna mounts, and buried connector hardware must endure decades of exposure. Salt spray testing is a key part of qualifying materials and finishes for these long-lifecycle products.
• Household Appliances and Consumer Electronics: Dishwashers, washing machines, and outdoor kitchen components are tested for resistance to detergent salts and humid environments. Similarly, the metallic finishes on consumer electronics like smartphones and laptops are evaluated for aesthetic durability against perspiration and incidental moisture exposure.

Implementing a Effective Salt Spray Testing Program

Establishing a robust testing protocol extends beyond simply placing samples in a chamber. A comprehensive program involves several critical steps. First, specimen preparation must be meticulous, including thorough cleaning to remove oils and contaminants, and precise scribing if evaluating underfilm corrosion resistance per standards like ASTM D1654. The positioning and density of samples within the chamber must not obstruct fog circulation. During the test, daily monitoring of collected solution pH, concentration, and chamber temperature is mandatory to maintain compliance with ASTM B117. Upon test completion, specimens require careful rinsing to remove salt residues before evaluation. Assessment criteria must be defined a priori—whether it’s the percentage of surface area corroded, the creepage from a scribe, or the number and size of coating blisters. Documenting results with high-resolution photography is essential for creating a historical record and for comparative analysis.

Data Interpretation and Correlation to Field Performance

Interpreting salt spray data requires engineering judgment. As a comparative tool, it excels: if Coating A shows red rust after 96 hours while Coating B remains intact after 500 hours under identical test conditions, B is demonstrably more resistant in this specific environment. Translating 500 hours of ASTM B117 exposure to a predicted service life in years is not straightforward and requires correlation factors derived from long-term field exposure studies for similar materials in similar environments. Many organizations develop internal correlation databases. For example, a zinc-nickel plating on an automotive brake component that passes 720 hours of salt spray may be correlated to a 10-year service life in a North American “salt-belt” region, based on historical field return data. This correlation is proprietary and industry-specific, underscoring that ASTM B117 is one vital link in a chain of validation that includes cyclic testing, mechanical stress tests, and real-world field trials.

Conclusion

The pursuit of product durability in a corrosive world is an ongoing engineering challenge. The ASTM B117 salt spray test remains a cornerstone of material and coating evaluation, providing a accelerated, reproducible, and standardized method for assessing relative corrosion resistance. Its value is maximized when executed with precision instrumentation, such as the LISUN YWX/Q-010X chamber, which ensures the environmental consistency required for reliable data. When integrated into a broader validation strategy that acknowledges its limitations and complements it with cyclic and functional testing, ASTM B117 testing forms an indispensable part of the quality assurance process. It empowers industries—from automotive to aerospace, medical devices to telecommunications—to deliver products with enhanced longevity, reliability, and safety, ultimately reducing life-cycle costs and upholding brand reputation in competitive global markets.

Frequently Asked Questions (FAQ)

Q1: What is the key difference between the ASTM B117 test and a cyclic corrosion test (CCT)?
A1: ASTM B117 provides a constant, unvarying environment of continuous salt fog at a steady temperature. It is excellent for detecting coating porosity and for quality control comparisons. Cyclic Corrosion Tests (CCT), such as those in ASTM G85, introduce programmed cycles that include wet (salt fog), humid, and dry phases, and sometimes freezing. This better simulates the diurnal and seasonal changes in real-world environments, often providing better correlation to actual service life for many materials, particularly those used in automotive and coastal applications.

Q2: For a new product, how do we determine the appropriate duration for an ASTM B117 test?
A2: Test duration is typically dictated by the relevant product specification or industry standard. For example, an automotive specification for decorative trim might require 240 hours to white rust, while a specification for a critical underbody component may require 720 hours to red rust. In the absence of a governing standard, duration can be based on internal quality benchmarks, competitor analysis, or historical data for similar components. It is often useful to conduct a series of tests at increasing durations (e.g., 96, 192, 384 hours) to establish a performance curve.

Q3: The LISUN YWX/Q-010X features a “saturated air barrel.” What is its function?
A3: The saturated air barrel is a critical component for test compliance. Compressed air, used to atomize the salt solution, is typically cool and dry. If injected directly into the 35°C chamber, it would cool the fog and cause excessive evaporation of the droplets, altering the solution concentration and chamber humidity. The saturated air barrel pre-heats the air to the chamber temperature and saturates it with moisture (via a bubbler system). This ensures the atomized salt fog enters the chamber at the correct temperature and humidity, maintaining the specified equilibrium conditions for consistent droplet settlement on the test specimens.

Q4: Can the YWX/Q-010X chamber be used for testing with solutions other than neutral 5% NaCl?
A4: Yes, with proper cleaning and calibration, the chamber can be adapted for modified tests outlined in ancillary standards. For instance, ASTM G85 includes annexes for acidified salt spray (e.g., with acetic acid for the ASS test) or a copper-accelerated acetic acid spray (CASS test) used primarily for decorative copper-nickel-chromium plating. However, it is crucial to consult the equipment manual and ensure all wetted parts are compatible with the alternative test solution to avoid damage to the chamber.

Q5: How often should a salt spray chamber be calibrated and maintained?
A5: Daily checks of collected solution pH, concentration, and chamber temperature are mandatory during operation. A more formal calibration of the temperature sensors and airflow meters should be performed at least annually, traceable to national standards. Routine maintenance includes cleaning the chamber interior and nozzles to prevent salt buildup, checking and cleaning the saturated air barrel, and inspecting seals and gaskets for integrity. A logbook should be maintained to document all checks, calibrations, and maintenance activities.
