Introduction to Temperature Testing in Industrial Applications

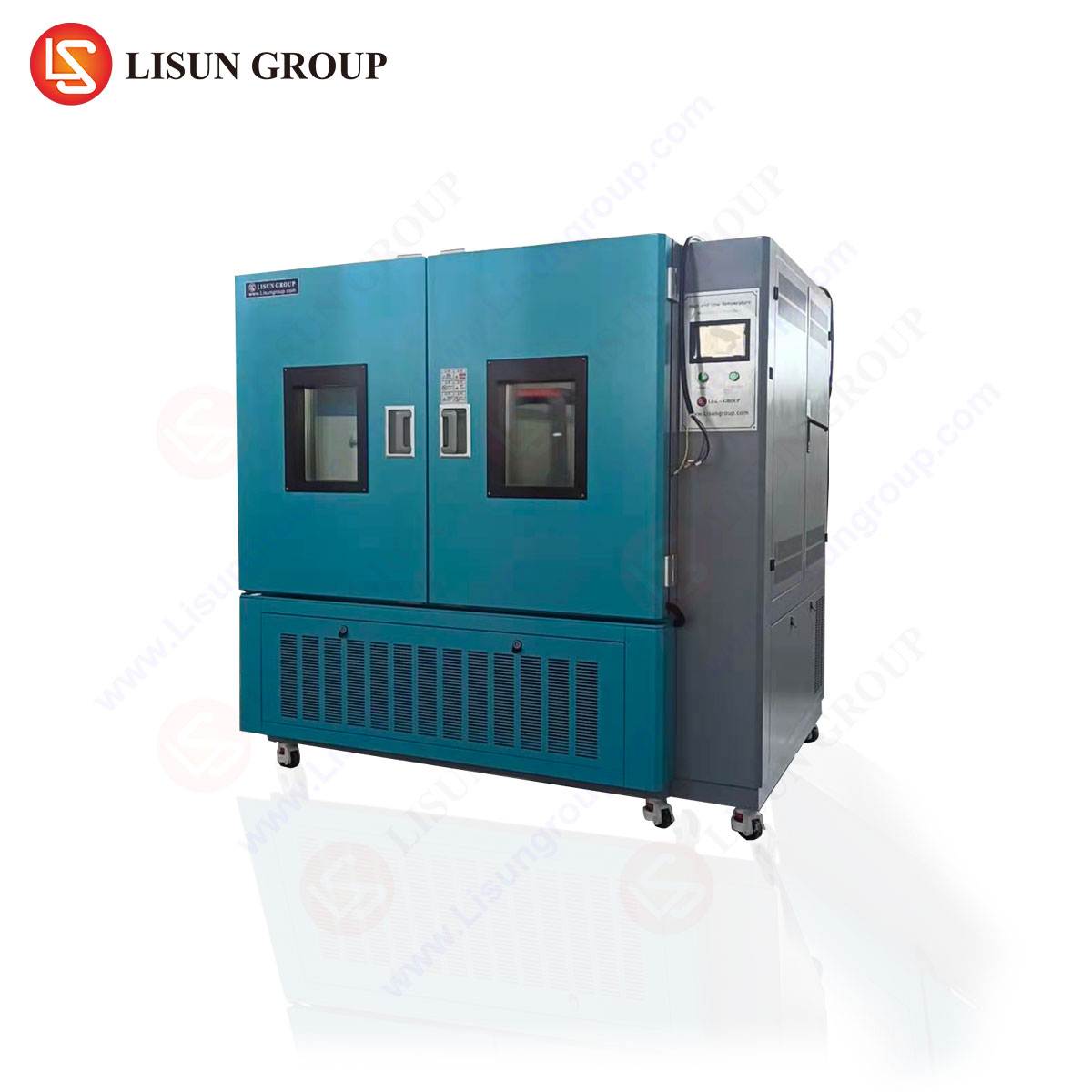

Environmental stress testing is a critical phase in product development, ensuring reliability under extreme thermal conditions. The LISUN HLST-500D Temperature Chamber is engineered to simulate a broad range of temperature environments, facilitating accelerated life testing and compliance validation for electrical, electronic, and electromechanical components. This chamber adheres to stringent international standards, including IEC 60068-2-1 (Cold), IEC 60068-2-2 (Dry Heat), and ISO 16750-4 (Automotive Environmental Testing), making it indispensable for industries requiring precise thermal cycling and stability.

Core Technical Specifications of the HLST-500D

The HLST-500D is a high-performance temperature chamber designed for rigorous testing protocols. Key specifications include:

• Temperature Range: -70°C to +150°C
• Temperature Fluctuation: ±0.5°C
• Temperature Uniformity: ±2.0°C
• Heating Rate: 3°C/min (average, from ambient to +150°C)
• Cooling Rate: 1°C/min (average, from ambient to -70°C)
• Internal Dimensions: 500 × 500 × 600 mm (W × D × H)
• External Construction: Stainless steel with reinforced insulation
• Control System: PID-regulated microprocessor with touchscreen interface
• Data Logging: Real-time monitoring with USB/RS-232 output

These parameters ensure repeatability and accuracy, critical for validating product durability in industries such as automotive electronics, aerospace, and medical devices.

Testing Principles and Operational Methodology

The HLST-500D employs forced-air convection to achieve uniform temperature distribution, minimizing thermal gradients that could skew test results. The chamber’s refrigeration system utilizes a cascade cooling mechanism, enabling ultra-low temperature stability without compressor overload.

Key Testing Modes:

1. Static Temperature Testing – Sustained exposure to fixed temperatures for stability assessment.
2. Thermal Cycling – Rapid transitions between high and low temperatures to evaluate material fatigue.
3. Thermal Shock Testing (via supplementary modules) – Extreme transitions to assess failure modes.

For example, automotive electronics manufacturers use thermal cycling to verify solder joint integrity in printed circuit boards (PCBs), while aerospace component suppliers subject avionics to prolonged cold soak tests at -55°C to simulate high-altitude conditions.

Industry-Specific Applications

1. Automotive Electronics

Automotive components must endure extreme thermal fluctuations, from desert heat to arctic cold. The HLST-500D validates:

• ECU (Engine Control Unit) performance under -40°C to +125°C ranges.
• Lithium-ion battery resilience in electric vehicles.
• Connector and wiring harness durability per ISO 16750-4.

2. Medical Devices

Medical equipment, such as implantable devices and diagnostic tools, must operate reliably in controlled environments. The chamber tests:

• Polymer degradation in sterilization cycles.
• Sensor accuracy in refrigerated storage conditions.

3. Telecommunications Equipment

5G infrastructure components, including base station modules, undergo thermal stress testing to ensure uninterrupted operation in varying climates.

4. Aerospace and Aviation

Avionics systems are exposed to rapid depressurization and temperature shifts. The HLST-500D simulates:

• High-altitude cold starts.
• Thermal expansion in satellite components.

Competitive Advantages Over Conventional Chambers

1. Enhanced Uniformity Control – Advanced airflow design reduces temperature stratification, ensuring compliance with MIL-STD-810G.
2. Energy Efficiency – Dual-stage refrigeration minimizes power consumption during prolonged testing.
3. Modular Expandability – Optional humidity control (10%–98% RH) for combined temperature-humidity testing.
4. Regulatory Compliance – Pre-configured test profiles for IEC, ISO, and AEC-Q100 standards.

Case Study: Thermal Endurance Testing in LED Lighting Systems

A leading lighting manufacturer utilized the HLST-500D to assess LED driver reliability under thermal stress. Over 1,000 cycles (-30°C to +85°C) revealed:

• No lumen depreciation beyond ANSI C78.377 tolerances.
• Stable forward voltage characteristics in extreme cold.

This data validated product longevity, reducing field failure rates by 18%.

FAQ Section

Q1: What is the maximum load capacity of the HLST-500D?
The chamber supports up to 30 kg of test specimens, provided heat dissipation does not exceed 500W.

Q2: Can the HLST-500D integrate with third-party data acquisition systems?
Yes, RS-232 and USB outputs allow seamless integration with LabVIEW, MATLAB, or proprietary monitoring software.

Q3: How does the chamber mitigate condensation during low-temperature testing?
A nitrogen purge option is available to prevent frost accumulation in sensitive components.

Q4: What maintenance intervals are recommended for optimal performance?
Quarterly inspections of refrigeration systems and annual calibration checks are advised.

Q5: Is the HLST-500D suitable for explosive environment testing?
No, the chamber is not ATEX-certified; alternative inert gas configurations may be required for hazardous materials.

By integrating precision engineering with industry-specific validation protocols, the LISUN HLST-500D establishes itself as a critical tool for reliability testing across multiple high-stakes sectors.
