Introduction to ASTM B117 Salt Spray Testing

The ASTM B117 salt spray (fog) test is a standardized corrosion evaluation method designed to assess the durability of materials and protective coatings under accelerated corrosive conditions. Developed by ASTM International, this test simulates harsh environmental exposure to saline atmospheres, providing a controlled and repeatable means of evaluating corrosion resistance. Industries ranging from automotive electronics to aerospace rely on ASTM B117 to validate product longevity, ensuring compliance with international quality and safety standards.

This article examines the technical principles of ASTM B117, its industrial applications, and the role of advanced testing equipment such as LISUN’s YWX/Q-010 and YWX/Q-010X salt spray test chambers in ensuring precise, reliable results.

Technical Principles of ASTM B117 Testing

Test Methodology and Environmental Simulation

ASTM B117 subjects test specimens to a continuous saline mist (5% NaCl solution) at a controlled temperature (35°C ± 2°C) within an enclosed chamber. The test duration varies based on material type and industry requirements, typically ranging from 24 to 1,000 hours. Key parameters include:

• Solution Composition: 5% sodium chloride (NaCl) by mass, with pH adjusted to 6.5–7.2.
• Spray Nozzle Pressure: 0.7–1.4 bar (10–20 psi), ensuring uniform mist distribution.
• Chamber Saturation: Relative humidity maintained at 95–98% to prevent evaporation-induced concentration shifts.

The test evaluates:

• Corrosion initiation time (time to first visible rust).
• Coating adhesion failure (blistering, peeling, or delamination).
• Metallic substrate degradation (pitting, galvanic corrosion).

Standards Compliance and Interoperability

ASTM B117 aligns with several international standards, including:

• ISO 9227 (Corrosion tests in artificial atmospheres).
• JIS Z 2371 (Japanese salt spray testing standard).
• DIN 50021 (German standard for neutral salt spray testing).

While ASTM B117 remains the most widely referenced, manufacturers must ensure compatibility with regional regulatory frameworks.

Industrial Applications of Salt Spray Testing

Electrical and Electronic Equipment

Printed circuit boards (PCBs), connectors, and enclosures undergo salt spray testing to validate resistance to conductive corrosion, which can lead to short circuits or signal degradation. For example, automotive ECU housings must endure 500+ hours of testing to meet ISO 16750-4 standards.

Automotive Electronics and Components

Exposed metallic parts (e.g., brake components, sensor housings) are tested to simulate road salt exposure. Zinc-nickel coatings on fasteners, for instance, must demonstrate >720 hours of resistance per ASTM B117 to qualify for use in coastal environments.

Aerospace and Aviation Components

Aluminum alloys and titanium fasteners undergo extended testing (1,000+ hours) to ensure airworthiness under high-humidity, high-salinity conditions. ASTM B117 complements ASTM G85 for modified salt spray tests involving acidified or cyclic conditions.

Medical Devices and Implants

Stainless steel surgical instruments and implantable devices are tested to verify biocompatibility and corrosion resistance, adhering to ASTM F2129 for electrochemical testing.

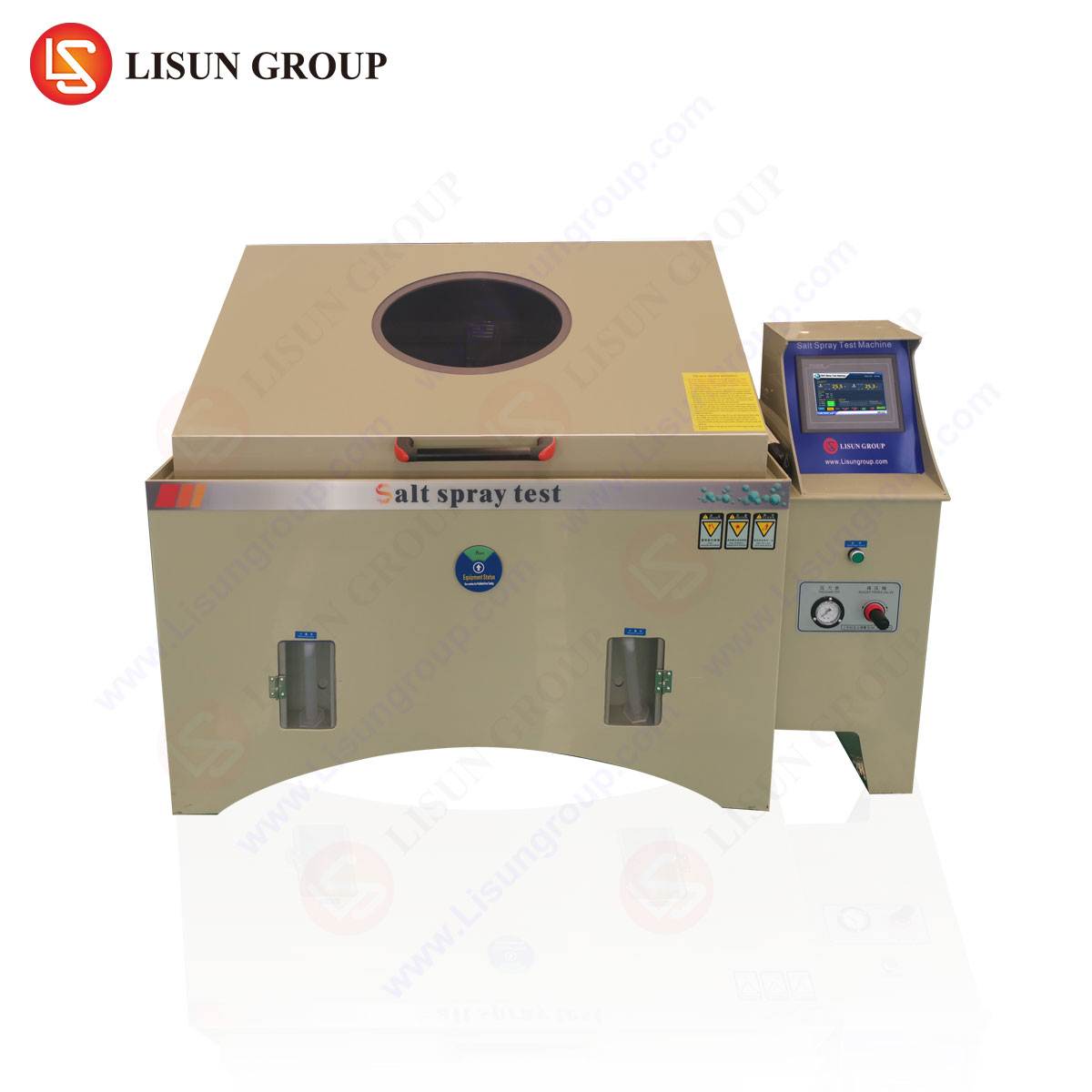

LISUN YWX/Q-010 and YWX/Q-010X Salt Spray Test Chambers: Technical Specifications and Advantages

Core Features and Testing Capabilities

LISUN’s YWX/Q-010 and YWX/Q-010X salt spray test chambers are engineered for precision and compliance with ASTM B117, ISO 9227, and JIS Z 2371. Key specifications include:

Competitive Advantages

1. Enhanced Uniformity: Nozzle design ensures consistent mist distribution, eliminating localized overexposure.
2. Automated pH Monitoring: Integrated sensors maintain solution pH within ASTM-mandated ranges.
3. Corrosion-Resistant Construction: Polypropylene (PP) chambers resist degradation from prolonged saline exposure.
4. Multi-Standard Compliance: Validated for ASTM B117, ISO 9227, and JIS Z 2371, reducing cross-industry compliance costs.

Industry Use Cases

• Telecommunications Equipment: Testing aluminum antenna housings for coastal deployment.
• Lighting Fixtures: Evaluating powder-coated streetlight enclosures against 1,000-hour exposure.
• Industrial Control Systems: Validating stainless steel control panel corrosion resistance.

Comparative Analysis: ASTM B117 vs. Alternative Corrosion Tests

While ASTM B117 remains the benchmark, alternative methods include:

• Cyclic Corrosion Testing (CCT): Combines salt spray, humidity, and drying phases (e.g., ASTM G85).
• Kesternich Test (DIN 50018): Simulates industrial SO₂ pollution.
• Electrochemical Impedance Spectroscopy (EIS): Quantifies coating degradation rates.

ASTM B117’s simplicity and reproducibility make it ideal for high-throughput quality control, whereas CCT offers greater real-world simulation for automotive and aerospace applications.

FAQ Section

Q1: How does the YWX/Q-010X improve upon the YWX/Q-010 model?
The YWX/Q-010X features a larger chamber (270L vs. 108L), higher temperature stability (±0.3°C), and expanded programmability for complex test sequences.

Q2: What industries require the longest ASTM B117 test durations?
Aerospace (1,000+ hours) and marine applications (720+ hours) demand extended testing due to extreme environmental exposure.

Q3: Can ASTM B117 evaluate non-metallic materials?
Yes, the test assesses coatings, plastics, and composite materials for blistering, adhesion loss, or chemical degradation.

Q4: How often should salt spray test chambers be calibrated?
Annual calibration is recommended, with weekly pH checks and nozzle inspections to ensure compliance.

Q5: Does LISUN provide ASTM B117-compliant test reports?
Yes, LISUN chambers include data logging and export functions for standardized reporting.
