Understanding Temperature Test Chambers: A Comprehensive Guide

Fundamental Principles of Environmental Stress Screening

Environmental Stress Screening (ESS) represents a critical phase in the manufacturing and qualification lifecycle of modern industrial and consumer products. The systematic application of controlled environmental stresses, primarily temperature and humidity, serves to precipitate latent defects in materials and assemblies that would otherwise manifest as premature field failures. Temperature test chambers are the principal apparatus employed to simulate these conditions, providing a repeatable and controlled environment for accelerated reliability testing, performance verification, and material analysis. The underlying principle is rooted in the physics of thermal expansion and contraction, where differing coefficients of thermal expansion (CTE) among bonded materials—such as silicon dies, solder joints, and printed circuit board (PCB) substrates—induce mechanical stresses. By cycling products through extreme temperature profiles, manufacturers can identify weaknesses in design, workmanship, and component selection, thereby enhancing product robustness and long-term reliability. This process is governed by a framework of international standards, including IEC 60068-2-1 (Cold), IEC 60068-2-2 (Dry Heat), and IEC 60068-2-14 (Change of Temperature), which define rigorous test methodologies.

Architectural Configurations and Refrigeration Mechanics

The core architecture of a temperature test chamber comprises an insulated test volume, a heating system, a refrigeration system, and a sophisticated control unit. The insulation, typically high-density fiberglass or polyurethane foam, is paramount for thermal efficiency. Heating is conventionally achieved via finned or sheathed resistance heaters. The refrigeration system, however, is the most mechanically complex subsystem, directly determining the chamber’s low-temperature capability and pull-down rate. Most industrial-grade chambers utilize a vapor-compression refrigeration cycle, often employing cascade systems for achieving temperatures below -40°C. A cascade system integrates two separate refrigeration circuits: a primary (high-stage) circuit that cools the condenser of a secondary (low-stage) circuit, which in turn extracts heat from the test volume. This configuration allows the low-stage circuit to operate at a much lower evaporating temperature than would be possible with a single-stage system. The refrigerants used, such as R404a or R507a, are selected for their thermodynamic properties and environmental impact, in compliance with regulations like the EU F-Gas regulation. Advanced chambers may incorporate liquid nitrogen (LN2) or carbon dioxide (CO2) injection for ultra-rapid cooling, a feature often found in thermal shock test chambers where transition speed is critical.

The Critical Role of Thermal Shock Testing

While steady-state temperature testing is invaluable, many real-world applications involve rapid transitions between extreme conditions. An automotive control unit, for instance, may be subjected to desert heat during the day and frigid mountain temperatures at night. Thermal shock testing is specifically designed to simulate these abrupt thermal changes, exposing products to a more severe form of stress that can rapidly identify flaws like cracked solder joints, delamination, and package cracking in integrated circuits. This testing methodology is distinct from temperature cycling in its rate of change; thermal shock tests mandate a transfer time between hot and cold zones measured in seconds, whereas temperature cycling may involve gradual ramps over minutes or hours. The test is typically defined by the extreme temperatures (e.g., -55°C to +125°C), the dwell time at each extreme, and the number of cycles. Standards such as JESD22-A104 and MIL-STD-883, Method 1010.9 provide detailed protocols for this accelerated stress test.

Analysis of the HLST-500D Thermal Shock Test Chamber

The LISUN HLST-500D thermal shock test chamber exemplifies the application of these principles in a high-performance industrial instrument. It is engineered to provide a rigorous testing environment for a wide array of components and finished products.

Operating Principle and Specifications:
The HLST-500D employs a three-zone (two-zone moving) basket system. It consists of a high-temperature zone, a low-temperature zone, and a stationary test zone where the specimen basket resides. The test basket, containing the samples, is mechanically transferred between the pre-conditioned high and low temperature chambers. This design ensures that the test specimens are subjected to the most rapid possible temperature transition, as the target zones are maintained at their setpoints continuously.

Key specifications for the HLST-500D include:

• Test Volume: 500 Liters
• Temperature Range:
  • High Temperature Chamber: +60°C to +200°C
  • Low Temperature Chamber: -10°C to -65°C (or -55°C, depending on configuration)
• Recovery Time: ≤ 5 minutes (from +150°C to -55°C and vice-versa, under full load)
• Temperature Fluctuation: ≤±0.5°C
• Basket Transfer Time: ≤10 seconds
• Controller: A programmable, multi-channel microprocessor-based controller with a color TFT-LCD touchscreen interface, providing real-time graphing and data logging capabilities.

Industry Use Cases and Application:
The HLST-500D’s capability for rapid thermal transience makes it indispensable across multiple sectors.

• Automotive Electronics: Testing engine control units (ECUs), sensors, and infotainment systems for resilience against the extreme temperature swings encountered in vehicle operation.
• Aerospace and Aviation Components: Qualifying avionics, navigation systems, and satellite components that must endure the severe thermal vacuum-like conditions of high-altitude flight or space.
• Telecommunications Equipment: Validating the reliability of 5G base station components, fiber optic transceivers, and network switches that are deployed in uncontrolled environments.
• Lighting Fixtures: Subjecting high-power LED arrays and drivers to thermal shock to assess the integrity of solder joints and thermal management systems, which directly impact lumen maintenance and lifespan.
• Electrical Components: Accelerated life testing of connectors, relays, and switches to ensure electrical continuity and mechanical integrity are maintained after thousands of thermal expansion cycles.

Competitive Advantages:
The HLST-500D incorporates several design features that confer distinct operational advantages. Its use of a high-efficiency cascade refrigeration system ensures stable and reliable achievement of low temperatures, even with high thermal mass loads. The mechanical transfer mechanism is engineered for minimal vibration and high reliability over millions of cycles, reducing maintenance downtime. Furthermore, the advanced controller not only manages the complex test profiles but also facilitates compliance with industry standards by allowing pre-programmed test sequences and detailed, auditable data export, which is crucial for certification processes in medical and aerospace industries.

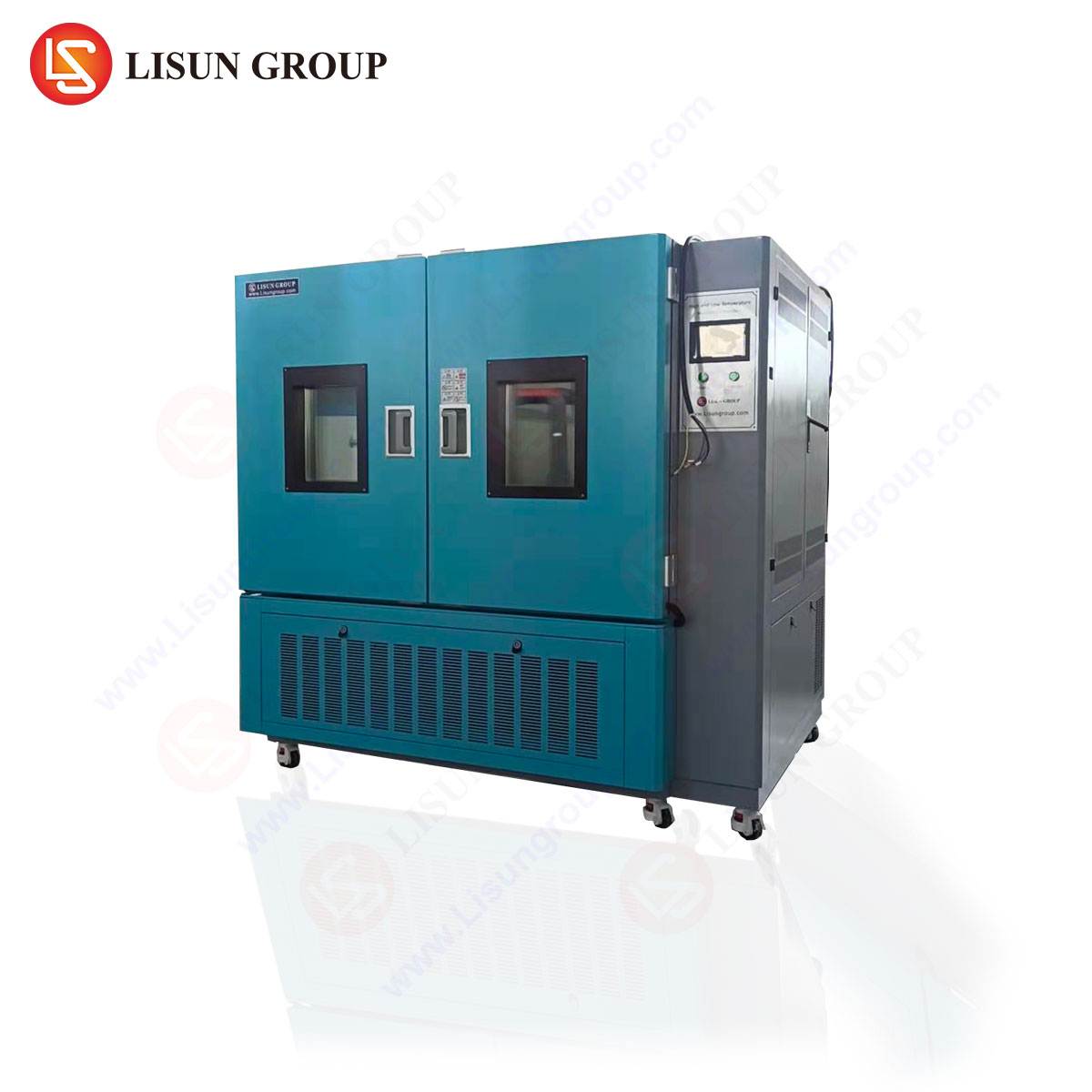

Integrating Humidity into Environmental Testing

For many applications, temperature alone is an insufficient stressor. The presence of moisture can lead to a host of failure mechanisms, including electrochemical migration, metal corrosion, and hygroscopic swelling. Combined temperature and humidity testing, often referred to as “temperature humidity bias” (THB) testing, is essential for evaluating product robustness in humid climates or applications where condensation may occur. Tests like the Highly Accelerated Stress Test (HAST) and 85°C/85% Relative Humidity (RH) test are used to rapidly assess the moisture resistance of electronic components and the effectiveness of protective conformal coatings. The addition of a humidity system, typically involving a steam generator or ultrasonic humidifier and a dedicated dehumidification system via a cold coil, significantly increases the chamber’s complexity. Control of relative humidity is notoriously challenging, as it is a function of both temperature and the absolute moisture content in the air, requiring sophisticated control algorithms to maintain stability.

Calibration and Adherence to International Standards

The validity of any environmental test is contingent upon the accuracy and traceability of the chamber’s measurements. Regular calibration is not a recommendation but a necessity. This process involves placing calibrated traceable sensors at multiple locations within the test volume to map temperature (and humidity, if applicable) uniformity and stability. Key parameters verified during calibration include setpoint deviation, spatial uniformity, and temporal fluctuation. This activity must be performed in accordance with recognized standards, such as ISO/IEC 17025, by accredited laboratories. The test procedures themselves are dictated by a suite of international standards. For example, the telecommunications industry often relies on Telcordia GR-63-CORE, the automotive sector on ISO 16750, and the military and aerospace industries on various MIL-STD and RTCA DO-160 protocols. Adherence to these standards ensures that test results are reproducible, comparable, and recognized across global supply chains.

Selection Criteria for Test Chamber Deployment

Selecting an appropriate temperature test chamber requires a meticulous analysis of technical requirements and operational constraints. The following table outlines primary selection parameters:

Addressing Common Failure Mechanisms Through Testing

The ultimate goal of environmental testing is to proactively identify and mitigate failure modes. Specific tests are correlated with known physical failures.

• Solder Joint Fatigue: Caused by CTE mismatch during temperature cycling. Thermal shock testing accelerates this failure, revealing cracks in Ball Grid Array (BGA) solder balls.
• Popcorning: The explosive delamination of plastic integrated circuit packages due to rapid vaporization of absorbed moisture during reflow soldering. This is screened using moisture sensitivity level (MSL) testing, which relies on precise humidity control.
• Electrochemical Migration: The growth of conductive metal filaments (dendrites) on a PCB under bias in a humid environment, leading to short circuits. This is a primary target of THB and HAST testing.
• Contact Failure: In components like switches and connectors, thermal cycling can cause fretting corrosion and loss of contact force, leading to increased electrical resistance and intermittent connections.

Frequently Asked Questions (FAQ)

Q1: What is the fundamental difference between a thermal shock chamber like the HLST-500D and a standard temperature cycling chamber?
The primary distinction lies in the rate of temperature change. A thermal shock chamber achieves its transition by mechanically moving samples between two pre-heated and pre-cooled zones, achieving a temperature change rate that can exceed 30°C per second. A standard temperature cycling chamber uses a single compartment and relies on its internal refrigeration and heating systems to ramp the entire volume, resulting in much slower, controlled rates of change, typically 1°C to 10°C per minute.

Q2: For testing a new automotive sensor, how do I determine the appropriate temperature extremes and number of cycles?
The test parameters are almost always defined by the customer’s specification or a relevant industry standard. In the automotive sector, ISO 16750-4 is a common reference, which defines specific temperature profiles for “in-vehicle” locations (e.g., engine compartment: -40°C to +125°C; passenger compartment: -40°C to +85°C). The number of cycles is determined by the required reliability target and is often calculated based on the product’s expected lifetime and usage profile, frequently ranging from 500 to 2,000 cycles for qualification testing.

Q3: Why is the recovery time specification critical for a thermal shock chamber?
Recovery time measures the chamber’s ability to return to its target setpoint temperature after the introduction of a high-thermal-mass test load. A short recovery time (e.g., ≤5 minutes for the HLST-500D) ensures that the specified dwell time at the temperature extreme is accurately maintained for the majority of the test cycle. A long recovery time would effectively shorten the dwell period, potentially under-stressing the samples and producing non-representative and invalid test results.

Q4: Can the HLST-500D be used for testing materials beyond electronics, such as polymers or composites?
Absolutely. While extensively used for electronics, the fundamental principles of thermal stress apply to a wide range of materials. It is commonly employed to test polymers for glass transition temperature (Tg) effects, composites for interlaminar shear strength degradation, and metals for fatigue life analysis. The test parameters (temperature range, dwell time, cycles) would be defined by the material’s properties and its intended application environment.

Q5: What are the key safety precautions when operating a chamber at extreme temperatures like +200°C?
Operational safety is paramount. Key precautions include: wearing high-temperature gloves and face protection when accessing the chamber after a high-temperature cycle; ensuring the chamber is equipped with over-temperature protection independent of the main controller; maintaining clear ventilation paths and ensuring the chamber is installed in a well-ventilated area to dissipate the substantial waste heat; and establishing lockout-tagout procedures during maintenance to prevent accidental activation.
