An Analytical Examination of the Vertical Needle Flame Testing Machine

The relentless miniaturization and increasing complexity of electrical and electronic components across diverse industries have precipitated a concomitant escalation in fire safety concerns. A minuscule fault, such as an overheated connection, a compromised capacitor, or an electrical overstress event, can generate a localized ignition source of limited energy yet sufficient intensity to ignite surrounding materials. To assess the resilience of equipment and materials to such specific threats, the Vertical Needle Flame Test has been established as a critical compliance and quality assurance procedure. The apparatus engineered to perform this test with precision and repeatability is the Vertical Needle Flame Testing Machine, a specialized piece of laboratory equipment indispensable for validating product safety.

Fundamental Principles of the Needle Flame Test

The underlying principle of the needle flame test is to simulate, under controlled laboratory conditions, the effect of a small flame that may result from a fault condition within an electrical circuit. This is not a test of a material’s resistance to a large, fully developed fire, but rather an assessment of its ability to withstand and not propagate a fire initiated by a small ignition source. The test methodology involves the application of a precisely defined needle flame, produced by a specific burner and fuel mixture, to a test specimen for a predetermined period. The specimen is mounted in a vertical orientation, and the flame is applied either to its surface or to a specified region deemed to be at high risk from internal faults.

Post-ignition, the machine facilitates the observation of several critical parameters: the duration of any subsequent flame combustion, the presence and duration of glowing combustion, and most importantly, the extent of flame spread and whether burning droplets or particles are ejected that could ignite other materials below. The pass/fail criteria are typically stringent, often requiring self-extinguishment within a specified time after the removal of the test flame and limiting the extent of burned area or prohibiting the falling of ignited debris. This test is fundamentally a measure of a product’s inherent fire containment characteristics.

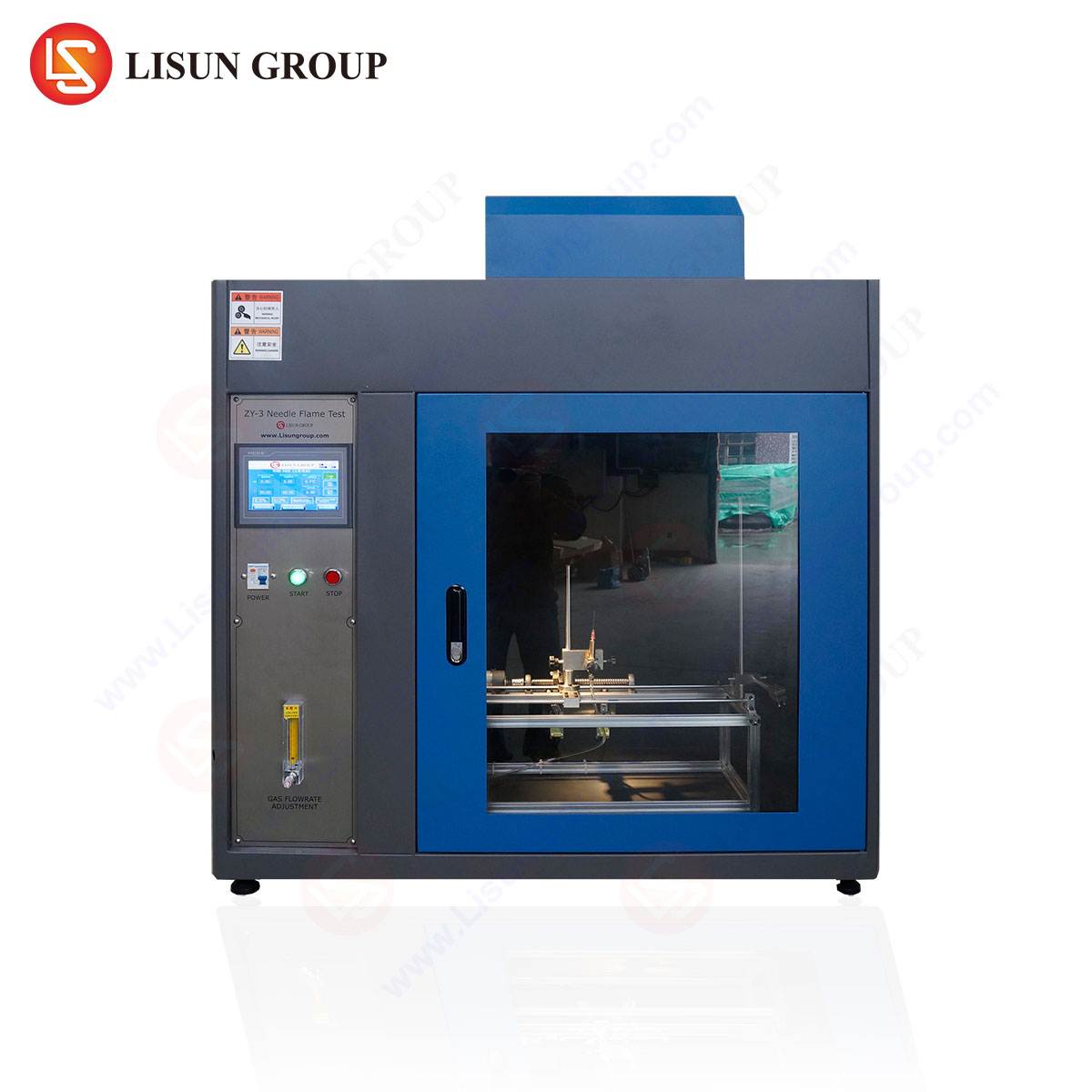

Deconstructing the LISUN ZY-3 Needle Flame Test Apparatus

The LISUN ZY-3 Needle Flame Test Apparatus represents a contemporary implementation of this testing paradigm, engineered to meet and exceed the requirements of international standards such as IEC 60695-11-5, GB/T 5169.5, and other cognate specifications. Its design prioritizes operational accuracy, user safety, and procedural consistency, which are non-negotiable in a certified testing environment.

The core of the ZY-3 system is its burner assembly. This component is meticulously calibrated to produce a needle flame with a nominal thermal power output of 45W, achieved by regulating the flow of high-purity butane gas at 100% purity. The gas flow is controlled via a precision needle valve and monitored by a calibrated flowmeter, ensuring a consistent flame height of 12mm ± 1mm. This consistency is paramount for test repeatability. The burner is mounted on a mobile sled, allowing for precise positioning of the flame relative to the test specimen, with adjustments possible in three spatial axes to target specific fault-condition locations accurately.

The test chamber is constructed from non-combiliable materials, typically stainless steel, and incorporates a draft shield to protect the test flame from ambient air currents that could compromise its stability and geometry. A critical safety feature is the integrated fume extraction system, which safely removes combustion products from the testing area, protecting the operator and laboratory environment from potentially hazardous pyrolytic gases. The specimen holder is designed to be versatile, accommodating components of various geometries and sizes, from a small PCB-mounted transformer to a section of insulated wiring or a plastic housing for a switch.

Key Specifications of the LISUN ZY-3:

Calibration and Validation of Test Parameters

The scientific validity of any flame test is contingent upon the rigorous calibration of its input parameters. For the ZY-3, this involves a multi-step verification process. The flame thermal power is not directly measured for every test but is assured through the calibration of the gas flow rate and the verification of flame geometry. A key calibration procedure involves the use of a standardized copper block calorimeter. The flame is impinged upon the copper block for a set duration, and the subsequent temperature rise is measured. This temperature delta is directly correlated to the heat input, thereby confirming the 45W nominal power output.

Furthermore, the consistency of the flame itself is verified visually against a gauge to ensure the 12mm height is maintained. The digital timers for flame application and after-flame duration are calibrated against a traceable time standard to ensure accuracy to within 0.1 seconds. This meticulous attention to calibration ensures that test results are not merely reproducible on a single machine but are comparable across different laboratories and testing facilities worldwide, a cornerstone of global product compliance.

Industry-Specific Applications and Use Cases

The Vertical Needle Flame Test is a ubiquitous requirement in product safety standards across a multitude of sectors. The LISUN ZY-3 apparatus is employed to verify compliance for a vast array of components and end-use products.

• Electrical and Electronic Equipment & Household Appliances: Printed circuit boards (PCBs), relay housings, insulation bobbins for transformers, and internal plastic casings within devices like power supplies, routers, and washing machine control modules are tested to ensure a fault in a current-carrying part does not lead to a fire that breaches the enclosure.

• Automotive Electronics: The harsh and vibration-prone environment of a vehicle makes electronic components particularly susceptible to fault conditions. Connectors, sensor housings, wire harness insulation, and control unit casings are subjected to the needle flame test to prevent fire initiation from an electrical short circuit.

• Lighting Fixtures: Especially with the proliferation of LED technology, the drivers and power supplies integral to light fixtures are tested. The plastic materials used in lamp holders, diffusers, and internal electronic housings must not propagate a flame from an overheated driver component.

• Industrial Control Systems & Telecommunications Equipment: These systems often operate 24/7 in critical infrastructure. Components such as terminal blocks, communication module casings, and server power distribution units are tested to ensure maximum operational reliability and fire safety.

• Medical Devices: For patient-connected equipment and devices with internal power sources, fire safety is paramount. The plastic enclosures and internal components of devices like patient monitors, infusion pumps, and diagnostic equipment are validated using this test.

• Aerospace and Aviation Components: The weight-saving imperative in aerospace leads to extensive use of polymers. Every non-metallic component, from overhead panel switches to wiring insulation in an aircraft’s avionics bay, must demonstrate high resistance to ignition from a small flame.

• Electrical Components and Cable Systems: Switches, sockets, and the insulation and jacketing of wires and cables are classic applications. The test verifies that an arc or overheating at a connection point will not cause the component itself or its insulating materials to act as a significant fuel source.

Comparative Analysis of Testing Standards

While the core principle of the needle flame test remains consistent, subtle variations exist between different international standards. A competent testing machine must be adaptable to these nuances. The IEC 60695-11-5 standard is perhaps the most universally recognized, forming the basis for many other regional standards. It provides detailed specifications for the burner, test laboratory conditions, and the classification of test results.

The Chinese standard GB/T 5169.5 is largely technically equivalent to the IEC standard, ensuring global harmonization. Underwriters Laboratories (UL) standards in North America, such as UL 746C, may reference similar test methods for evaluating polymeric materials. The LISUN ZY-3 is designed with this harmonization in mind, allowing testing laboratories to configure the apparatus to meet the specific procedural requirements of the standard invoked by their client’s target market, whether in Europe, North America, Asia, or elsewhere.

Operational Advantages of the ZY-3 Design Philosophy

The design of the LISUN ZY-3 incorporates several features that translate into tangible operational benefits within a quality control or certification laboratory setting. The digital timing and control system eliminates the subjectivity and potential for human error associated with manual stopwatch timing, providing auditable, precise data for after-flame and after-glow durations. The three-dimensional positioning mechanism allows the operator to target the flame with sub-millimeter accuracy, which is critical when testing small components or specific areas of a larger assembly that are deemed to represent a worst-case fault scenario.

The integration of a robust fume extraction system is not merely a convenience but a critical health and safety requirement, ensuring compliance with laboratory air quality standards. The use of durable, corrosion-resistant materials like stainless steel for the chamber construction guarantees a long operational lifespan and resistance to the corrosive byproducts of combustion. Finally, the machine’s design for compliance with multiple key international standards makes it a versatile capital investment for a test house serving a global clientele, eliminating the need for multiple, single-standard test apparatuses.

Frequently Asked Questions (FAQ)

Q1: What is the primary distinction between the Needle Flame Test and the more common Glow-Wire Test?
Both tests assess fire hazard, but they simulate different ignition sources. The Glow-Wire Test (e.g., IEC 60695-2-10) simulates thermal stresses from an overheated or glowing element, such as a faulty resistor, by applying a heated element to the specimen. The Needle Flame Test specifically simulates a small, open flame resulting from an ignition source like a small electrical arc or a burning component. The test flames are fundamentally different in their nature and heat transfer mechanisms.

Q2: How often should the LISUN ZY-3 apparatus be calibrated to ensure ongoing accuracy?
Calibration frequency is typically recommended on an annual basis to maintain traceability to national standards. However, the frequency should be dictated by the laboratory’s quality management system (e.g., ISO 17025), usage intensity, and the requirements of the accrediting body. A daily or pre-test verification of flame height and gas flow is considered a best practice.

Q3: Can the ZY-3 test specimens that are not in a vertical orientation?
The standard methodology, as defined by IEC 60695-11-5 and related standards, specifies a vertical orientation for the specimen. This is to properly assess the effect of potentially falling burning droplets. The ZY-3 is designed for this vertical testing. Testing in other orientations would constitute a non-standard procedure and would not be valid for certification against these specific standards.

Q4: What are the critical pass/fail criteria in a typical needle flame test?
While specific criteria can vary by end-product standard, common failure conditions include: after-flame time exceeding a specified limit (e.g., 30 seconds); after-glow time exceeding a specified limit (e.g., 30 seconds); ignition of a surgical cotton indicator pad placed below the specimen by falling burning particles; or the combustion or deformation of the specimen extending beyond a defined boundary from the point of flame application.

Q5: For a complex assembled product, how is the test location determined?
The selection of the test location is a critical part of the test procedure and is based on a fault condition analysis. Standards often require testing in the area deemed most susceptible to a fault, which could be near current-carrying parts, in areas of heat concentration, or on thin-walled sections of an enclosure. If no specific area is identified, the test is typically performed on the center of a flat surface or a representative worst-case location. The product committee or the relevant safety standard usually provides guidance on this matter.
