Introduction to Xenon Arc Testing Fundamentals

The spectral power distribution of terrestrial sunlight serves as the critical benchmark for simulating environmental degradation in materials testing. Xenon arc lamp systems are engineered to replicate the full spectrum of sunlight, including ultraviolet, visible, and infrared wavelengths, thereby providing the most accurate laboratory method for predicting the service life and performance of materials and components. The selection of an appropriate xenon tester is not a trivial exercise; it is a foundational decision that directly influences the reliability, repeatability, and regulatory acceptance of accelerated weathering data. An improperly specified instrument can lead to Type I or Type II errors in material qualification, with significant financial and safety ramifications. This guide delineates the core technical parameters and application-specific considerations essential for the informed procurement of a xenon arc test apparatus.

Deconstructing Spectral Irradiance and Optical Filter Technology

The fidelity of a xenon arc test is predominantly governed by the optical filter system used to modify the lamp’s native output. Different filters are employed to simulate various service environments, such as direct noon sunlight or sunlight filtered through window glass. The most prevalent filter systems include Daylight-Q (e.g., Quartz/Borosilicate), Window Glass, and Extended UV filters. Each filter type selectively attenuates specific wavelength bands to achieve a spectral power distribution that correlates with real-world conditions. For instance, a Window Glass filter typically blocks short-wave ultraviolet radiation below approximately 310 nm, replicating the conditions experienced by products installed indoors. The selection of the correct filter type is paramount and must be dictated by the end-use environment of the product under test. International standards, including ISO 4892-2, ASTM G155, and SAE J2527, provide explicit guidance on filter selection for various applications, making compliance with these standards a non-negotiable criterion in tester selection.

Calibration Protocols and Irradiance Control Systems

Maintaining consistent and calibrated irradiance levels is the cornerstone of reproducible accelerated weathering tests. Modern xenon testers utilize closed-loop irradiance control systems that employ calibrated light sensors to monitor the intensity at specific wavelengths, typically 340 nm or 420 nm. A 340 nm control is sensitive to the UV region most responsible for polymer degradation, while 420 nm control is often used for monitoring color change and fading. The system automatically adjusts the lamp’s power to maintain a user-set irradiance level, compensating for lamp aging and ensuring test consistency over time. The frequency and rigor of calibration for both the irradiance sensor and the lamp itself are critical operational factors. Systems that facilitate straightforward, traceable calibration against NIST-traceable standards minimize downtime and safeguard data integrity. The chosen instrument should provide a clear, auditable calibration trail, a feature of increasing importance in regulated industries like automotive electronics and medical devices.

Integrating Environmental Stressors: Temperature and Humidity Modulation

Photodegradation is rarely an isolated phenomenon; it is synergistically accelerated by thermal and hydrolytic stresses. A sophisticated xenon tester must therefore offer precise, independent control over the chamber’s black panel temperature, chamber air temperature, and relative humidity. The black panel temperature, which represents the temperature of a specimen’s surface under irradiation, is a critical parameter that directly influences reaction rates. The ability to program complex cycles that alternate between high irradiance, elevated temperatures, and condensation or spray cycles is essential for replicating diurnal and seasonal environmental cycles. For comprehensive testing that requires standalone environmental stress validation prior to or in conjunction with light exposure, the integration with dedicated environmental chambers is a significant advantage. For example, coupling a xenon tester with a device like the **LISUN GDJS-015B Temperature Humidity Test Chamber** enables exhaustive preconditioning and subsequent evaluation of a product’s resilience. The GDJS-015B offers a temperature range of -70°C to +150°C and a humidity range of 20% to 98% RH, providing the necessary environmental breadth to simulate everything from arctic cold to tropical damp heat, conditions highly relevant to automotive electronics and telecommunications base station equipment.

Specialized Fixturing for Diverse Product Geometries

The efficacy of a weathering test is contingent upon uniform exposure of the specimen surface to the irradiance source. Standardized flat specimen racks are suitable for many applications, but many industrial components present complex, three-dimensional geometries that demand specialized fixturing. A robust tester selection process must account for the availability of custom racks and fixtures designed to hold items such as complete automotive lamp assemblies, connector housings, or irregularly shaped industrial control modules. Furthermore, for testing complete products or sub-assemblies that generate their own heat during operation, such as powered consumer electronics or LED drivers, fixtures that provide operational power and monitor performance in-situ are indispensable. This capability allows for the simultaneous application of light, temperature, and operational load stresses, providing a profoundly more realistic assessment of a product’s operational lifespan.

Application-Specific Testing Regimens for Electrical and Electronic Components

The failure modes of electrical and electronic equipment under light and environmental stress are diverse and potentially catastrophic. Insulation materials can embrittle and crack, printed circuit boards can delaminate, conductive traces can corrode, and connectors can suffer from a loss of mechanical integrity. Consequently, test regimens for these components must be meticulously designed. For automotive electronics, adherence to OEM-specific standards and broader standards like ISO 16474-2 is mandatory. These tests often combine high irradiance, high temperature, and aggressive humidity cycles to simulate years of in-vehicle exposure within a few thousand hours. For electrical components like switches and sockets, the focus may be on the retention of mechanical strength and dielectric properties after exposure. The test chamber must be capable of creating the precise conditions that induce these specific failure modes in a controlled and accelerated manner.

The Role of Combined Environmental Stress Testing

In many real-world scenarios, products are subjected to rapid thermal transitions in conjunction with solar loading. A prime example is an automotive component that heats rapidly from cold-soak conditions when a vehicle is started and then exposed to intense solar radiation. To replicate such extreme thermal shock events, a dedicated thermal shock test chamber is required. The **LISUN HLST-500D Thermal Shock Test Chamber** is engineered for this purpose, featuring a high-low temperature transition time of less than 5 seconds. This chamber typically comprises three zones: a high-temperature zone (e.g., +150°C to +200°C), a low-temperature zone (e.g., -55°C to -10°C), and a room temperature ambient zone. Test specimens are automatically shuttled between these zones according to a programmed schedule. When used in a complementary test strategy with a xenon arc chamber, the HLST-500D can first induce mechanical stresses through rapid thermal cycling, after which the xenon tester can evaluate how these micro-fractures and stressed states accelerate photodegradation. This combined approach is invaluable for aerospace components, where materials must withstand the extreme temperature differentials of high altitude while being exposed to intense, unfiltered UV radiation.

Data Acquisition and Compliance with International Standards

The value of accelerated testing is realized only through defensible and actionable data. A modern xenon tester should be equipped with a sophisticated data acquisition system that logs all critical test parameters—irradiance, temperature, humidity, and test time—at regular intervals. This data is not only vital for internal quality control but is often a prerequisite for demonstrating compliance with international safety and performance standards. For medical devices, this includes ISO 10993 and other biocompatibility standards that assess the effects of simulated aging on material properties. For lighting fixtures and consumer electronics, standards such as IEC 60598 and IEC 60068 dictate specific environmental sequences. The tester’s software should facilitate easy reporting and provide the necessary tools to demonstrate that the test was conducted within the tolerances specified by the relevant standard, ensuring that the results will be accepted by clients and regulatory bodies alike.

Lifecycle Cost Analysis and Operational Efficiency

The capital expenditure of a xenon tester is only one component of its total cost of ownership. A comprehensive evaluation must include operational consumables, notably the xenon lamps themselves, which have a finite operational life. Lamp cost and longevity vary significantly between manufacturers and models. Furthermore, systems that are designed for ease of maintenance, with readily accessible components and intuitive calibration procedures, will incur lower labor costs and reduce chamber downtime. Energy and water consumption are additional recurring expenses. Advanced systems with efficient cooling mechanisms and water recirculation systems can offer substantial savings over their operational lifespan. A thorough analysis projecting these costs over a five to ten-year period is essential for making a fiscally responsible selection that aligns with long-term testing laboratory objectives.

Validating Performance Through Material Benchmarking

Prior to finalizing the selection of a xenon arc testing system, it is a recommended practice to conduct a performance validation using well-characterized benchmark materials. These are materials with known and documented performance when exposed to standardized weathering conditions. By testing these benchmarks in the candidate machine and comparing the results—such as color change (Delta E) or gloss retention—to historical data or data from a reference instrument, a laboratory can verify the accuracy and reproducibility of the new equipment. This step de-risks the procurement process and provides immediate confidence in the data generated by the system. It is a critical final step, transforming a theoretical specification match into a proven operational capability.

Frequently Asked Questions

What is the significance of controlling irradiance at 340 nm versus 420 nm?
Control at 340 nm is targeted at the ultraviolet wavelengths that cause polymer chain scission and embrittlement, making it critical for assessing mechanical property degradation. Control at 420 nm is more relevant to the visible light spectrum and is primarily used for testing colorfastness and fading of pigments and dyes. The choice depends on the primary failure mode of interest for the material under test.

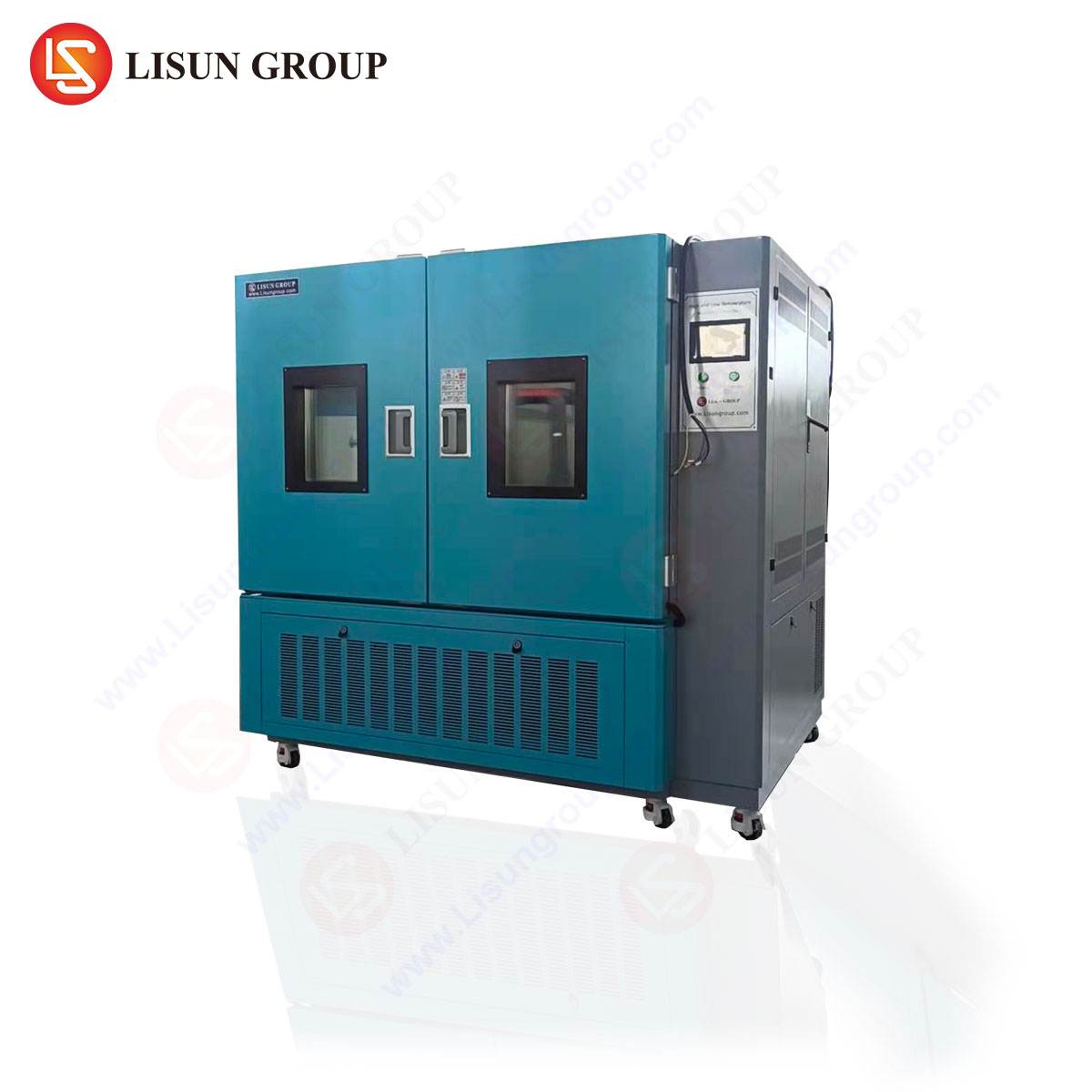

How does the LISUN GDJS-015B chamber enhance a xenon testing program?
The GDJS-015B is not a xenon chamber but a dedicated temperature and humidity test chamber. Its role is to provide preconditioning or concurrent environmental stress testing. It can be used to subject components to extreme damp heat or dry cold cycles before they are evaluated for photodegradation in the xenon tester, or to conduct separate, rigorous assessments of their environmental durability, thereby providing a more complete reliability picture.

Can a xenon arc test chamber simulate indoor lighting conditions?
Yes, through the use of specific optical filters, primarily the Window Glass filter. This filter removes the short-wave UV radiation not present indoors, creating a spectrum that accurately replicates the damage caused by sunlight filtered through typical window glass. This is essential for testing products like office equipment, display screens, and interior automotive components.

Why is transition speed a critical specification for a thermal shock chamber like the HLST-500D?
A rapid transition time (e.g., <5 seconds for the HLST-500D) ensures that the specimen experiences the full thermal shock of moving between extreme temperatures without significant temperature stabilization during the transfer. This rapid change induces higher mechanical stresses in the materials, which is the intended failure mechanism for thermal shock testing, making the test more severe and accelerated.

What is the typical operational lifespan of a xenon arc lamp?
The operational lifespan varies by manufacturer and lamp power, but a typical range is between 1,000 to 2,000 hours. However, the lamp’s spectral output degrades over time, which is why regular calibration and monitoring of irradiance are mandatory. Most standards recommend a maximum usage life after which the lamp should be replaced, regardless of whether it has failed, to ensure spectral fidelity.
