Artificial network equipped with EMI receiver is for electromagnetic interference measurement. The system detect frequency range: 9kHz~30MHz. The EMI Test System fully meets CISPR 16-1-2, FCC, EN55015 and EN55022.
Standard:
CISPR15-2018/EN55015, GB17743-2007 “Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment “
CISPR 16-1″Specification for radio disturbance and immunity measuring apparatus and methods – Part 1-1:Radio disturbance and immunity measuring apparatus – Measuring apparatus”
EN55022 “Information technology equipment — Radio disturbance characteristics — Limits and methods of measurement”
Specifications:
| LISUN Model | LISN-A | LISN-C | LISN-H | LISN50A-T | LISN100A-T | LISN200A-T |
| Max Current for EUT | 5A | 16A | 36A | 50A*4 | 100A*4 | 200A*4 |
| Max Voltage for EUT | AC/DC250V, 50Hz/60Hz | AC400V/DC600V, 50Hz/60Hz | ||||
| Remark | Single Phase L/N/PE, 9k-30MHz, 50Ω/50μH+5Ω | Three Phases L1/L2/L3/N, 150k-30MHz, 50Ω/50μH | ||||

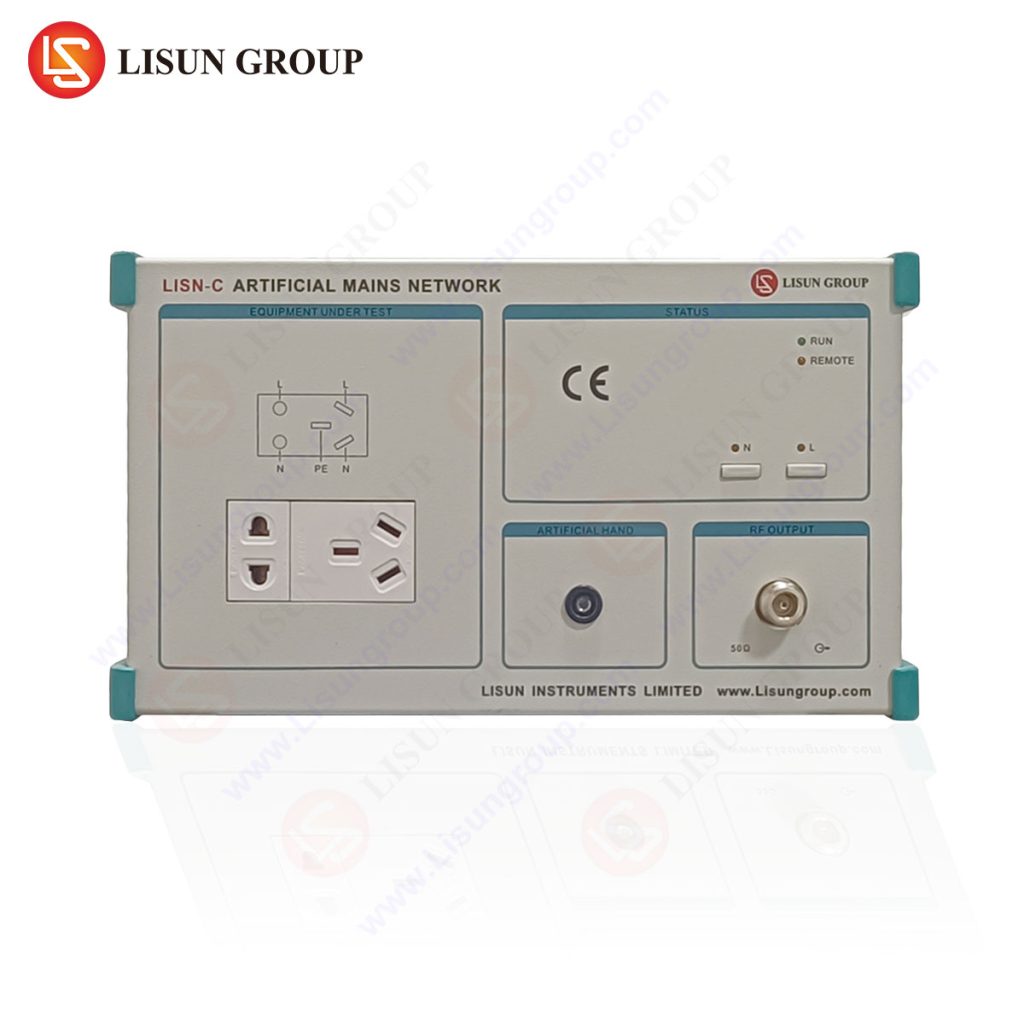

LISN-C 16A Single Phase Artificial Network
LISN100A-T 100A*4 Three Phases Artificial Network
