1. Application:
This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to BS 1363 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.
2. Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Material hardness is more than 50HRC; Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable.
3. Specifications:

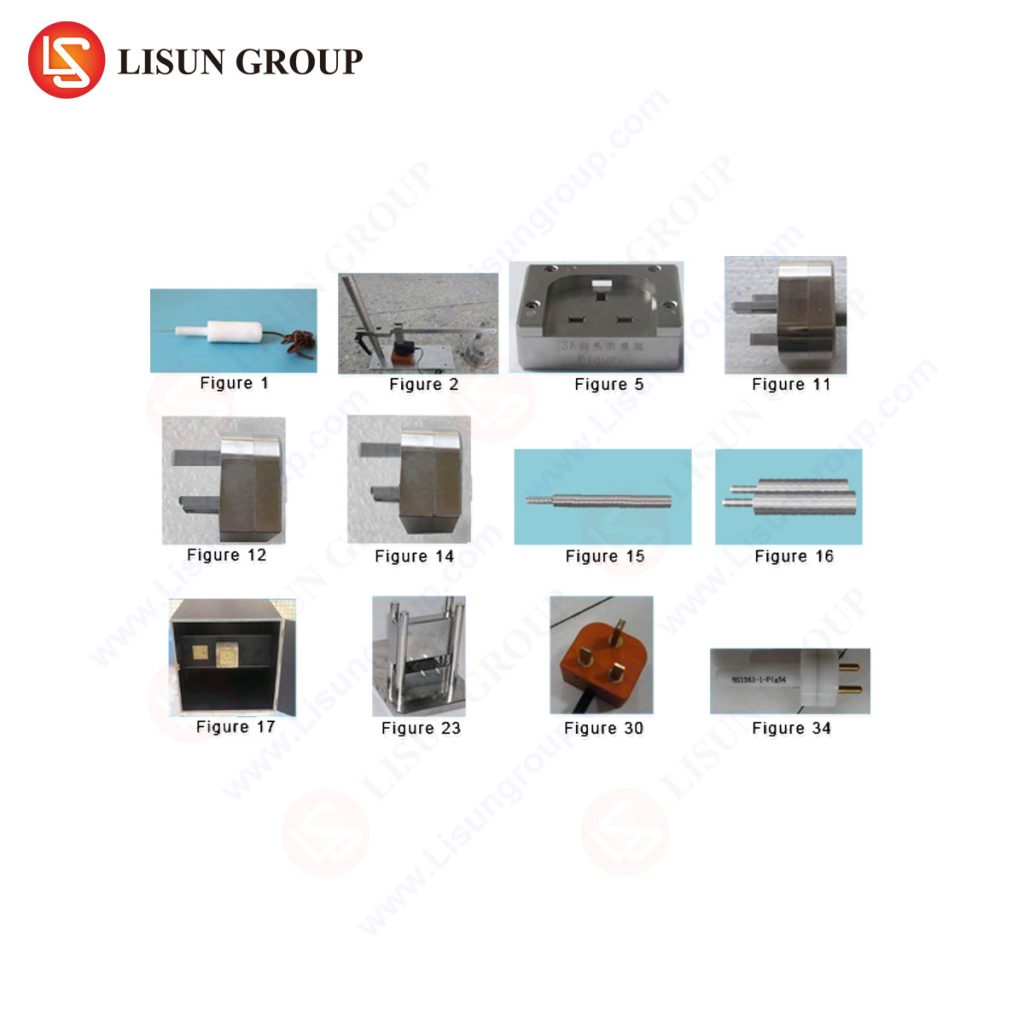

| LISUN Model | Product Specifications |
| GNGPL-3601 | Test pin with BS 1363-2 Figure 1 |
| GNGPL-3602 | Apparatus for Mechanical Strength Test on Resilient Covers with BS 1363 Figure 2 |
| GNGPL-3603 | Socket contacts of BS1363-2 Figure 3 |
| GNGPL-3604 | ISODs of BS1363-1 Figure 4b |
| GNGPL-3605 | Gauge for Adaptor Pins with BS 1363-3 Figure 5 |
| GNGPL-3605 | BS 1363-1 Figure 5 Gauge for Plug Pins |
| GNGPL-3607 | Mounting plate of BS1363-1 Figure 7 |
| GNGPL-3608 | Plug pin of BS1363-1 Figure 8 |
| GNGPL-3610 | Test Apparatus for Pressure Test At High Temperatures with BS 1363 Figure 10 |
| GNGPL-3611 | Go Gauges for Socket-Outlet of BS1363-1 Figure 11 |
| GNGPL-3612 | Contact Test Gauge – BS 1363-2 Figure 12 |
| GNGPL-3612 | Contact Test Gauge with BS 1363-2 Figure 12 |
| GNGPL-3614 | Non-contact Test Gauge OF BS 1363-2 Figure 14 |
| GNGPL-3615 | Turning Moment Gauge of BS 1363-2 Figure 15 |
| GNGPL-3616 | Withdrawal Pull Gauges for Effectiveness of Contact of BS1363-2 Figure 16 |
| GNGPL-3617 | Test apparatus of BS1363-1 Figure 17a/17b |
| GNGPL-3619 | Solid link of BS1363-1 Figure 19 |
| GNGPL-3623 | Apparatus of BS1363-2 Figure 23 |
| GNGPL-3628 | Calibrated link of BS1363-1 Figure 28 |
| GNGPL-3629 | Calibration jig of BS1363-2 Figure 29 |
| GNGPL-3630 | Test plug of BS1363-2 Figure 30 |
| GNGPL-3632 | Test Apparatus for Tests on Plug Pins of BS 1363-1 Figure 32 |
| GNGPL-3633 | Apparatus of BS1363-1 Figure 33 |
| GNGPL-3634 | Test Plug with BS 1363-3 Figure 34 |
| GNGPL-3635 | Adaptors of BS1363-3 Figure 35 |
