1. Application:
This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to CEE7 ( CEE7/7 ) standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.
2. Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Material hardness is more than 50HRC;Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable.

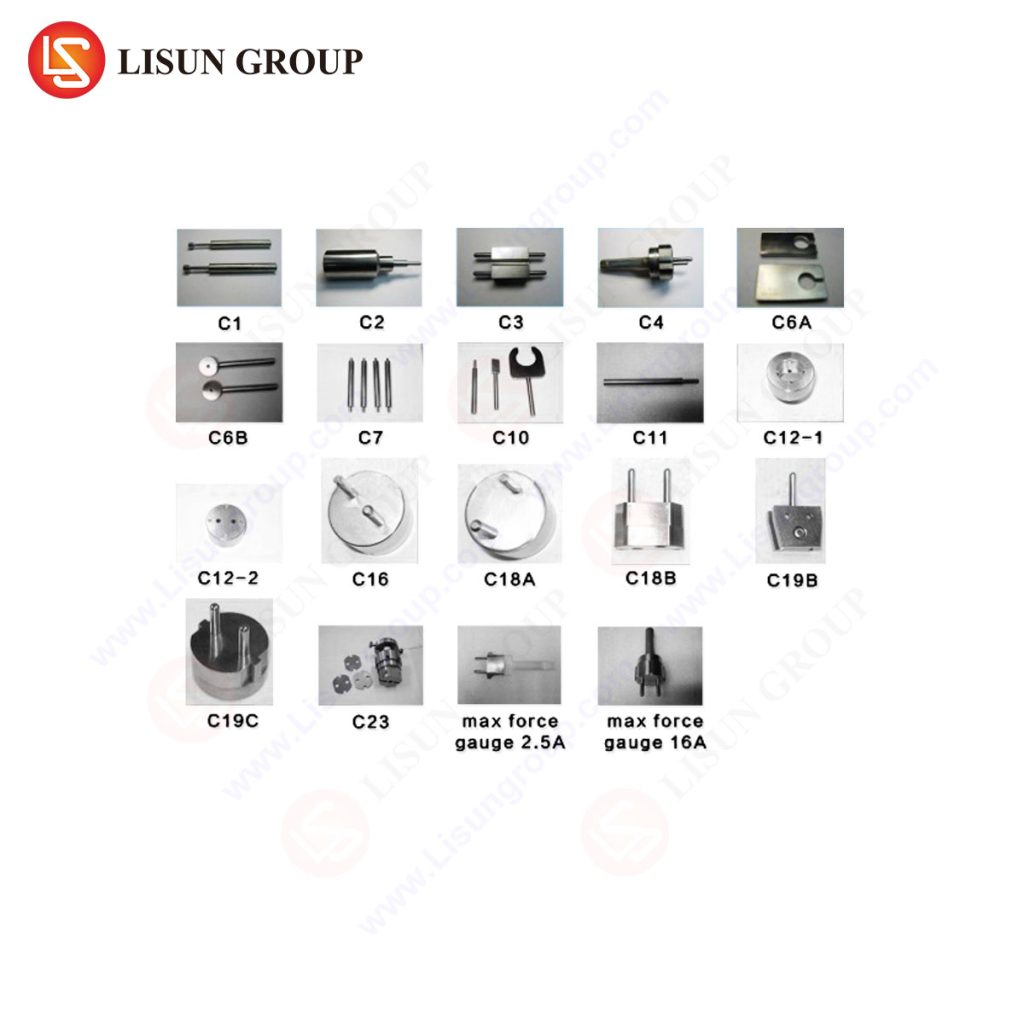

CEE 7 Socket-outlets and Plug Gauges
| LISUN Model | Product Specifications |
| GNGPL-57C1 | 10/16A 250V two-pole socket-outlets Gauges C1 of CEE7 for size of entry holes for plug pins |
| GNGPL-57C2 | 10/16A 250V two-pole socket-outlets and two-pole plugs with pin-type earthing-contact Gauges C2 of CEE7 for minimum opening of contact tubes |
| GNGPL-57C3 | 10/16A 250V two-pole socket-outlets Gauge C3 of CEE7 for acceptance of two-pole plugs |
| GNGPL-57C4 | 10/16A 250V two-pole socket-outlets with side earthing-contacts Gauge C4 of CEE7 for acceptance of two-pole plugs with side earthing contacts |
| GNGPL-57C6 | 10/16A 250V two-pole fixed socket-outlets Gauges C6 of CEE7 for fixing holes or slots |
| GNGPL-57C7 | 10/16A 250V two-pole socket-outlets Gauges C7 of CEE7 for distance to point of first contact |
| GNGPL-57C8 | 10/16A 250V two-pole socket-outlets Gauge C8 of CEE7 for wiring channel |
| GNGPL-57C9 | 2.5A 250V and 10/16A 250V two-pole plugs and 10/16A 250V two-pole socket-outlets with pin-type earthing-contact Gauges C9 of CEE7 for pin diameter |
| GNGPL-57C10 | 10/16A 250Vtwo-pole plugs Gauges C10 of CEE7 for pin spacing |
| GNGPL-57C11 | 10/16A 250V two-pole socket-outlets and two-pole plugs with pin-type earthing-contact Gauge C11 of CEE7 for maximum opening of contact tubes |
| GNGPL-57C12 | 10/16A 250V two-pole plugs with side earthing-contacts Gauge C12 of CEE7 for interchange ability |
| GNGPL-57C13 | 2.5A 250V two-pole plugs for class ii appliances Gauge C13 for interchange ability |
| GNGPL-57C14 | 10/16A 250V two-pole flush-type socket-outlets for screw fixing Gauge C14 for dimensions of mounting boxes |
| GNGPL-57C15 | 10/16A 250V two-pole plugs without earthing contact Gauge C15 for non-interchange ability with two-pole plugs with earthing contact |
| GNGPL-57C16 | 10/16A 250V two-pole socket-outlets with side earthing-contacts Gauge for non-acceptance of two-pole plugs wihout earthing contact of CEE7 C16 |
| GNGPL-57C18 | 10/16A 250V two-pole socket-outlets without earthing contact Gauge for checking impossibility of single-pole insertion of plugs CEE7 C18 |
| GNGPL-57C19AB | 2.5A 250V and 10/16A 250V two-pole plugs Gauges for checking impossibility of single-pole insertion of plugs into socket-outlets CEE7/C19A.B |
| GNGPL-57C20 | Device for testing non-solid pins CEE7 C20 |
| GNGPL-57C21 | Device for checking the resistance to lateral strain of 10/16A 250V two-pole fixed socket-outlets with with CEE7 C21 |
| GNGPL-57C22 | Splash apparatus CEE7 C22 |
| GNGPL-57C23 | Device for measuring the contact pressure of earthing contacts of 10/16A 250V two-pole socket-outlets with side earthing-contacts with with CEE7 C23 |
| GNGPL-57C26 | Apparatus for checking the withdrawal force CEE7 C26 |
| GNGPL-57C27 | Apparatus for testing the cord anchorage CEE7 C27 |
