The CDN61000-5C Series Coupling Decoupling Network for Communication Lines fully meets IEC 61000-4-5, EN 61000-4-5, GB/T 17626.5, ITU-T K.45, ITU-T K.21 and ITU-T K.20. The output surge waveforms are Combine wave (1.2/50μs and 8/20μs) and CCITT wave (10/700μs and 5/320μs). CDN61000-5C Series can works with LISUN SG61000-5 Series Surge Generator to test all of the communication lines, signal wires and control cables.
Standard:
IEC 61000-4-5/EN61000-4-5/GB/T17626.5 “Electromagnetic compatibility (EMC) – Part 4-5: Testing and measurement techniques – Surge immunity test
Specification:
| LISUN Model | CDN61000-5C-H8CC | CDN61000-5C-H8BC | CDN61000-5C-M8TK | CDN61000-5C-M4CC | CDN61000-5C-M4BC | CDN61000-5C-L4BK |
| Data Rate | ≤1000MB/s | ≤10MB/s | ≤100kB/s | |||
| EUT Channel | 8 Channels | 4 Channels | ||||
| Coupling Waveform | 10/700μs and 5/320μs | 1.2/50μs and 8/20μs | 1.2/50μs and 8/20μs、10/700μs and 5/320μs | 10/700μs and 5/320μs | 1.2/50μs and 8/20μs | |
| Coupling Mode | Common Mode | Common Mode and Differential Mode | Common Mode | Common Mode and Differential Mode | ||
| Port Type | Unshielded Symmetrical Lines | Unshielded Symmetrical Lines, unshielded asymmetric line | Unshielded Symmetrical Lines | Unshielded Symmetrical Lines, unshielded asymmetric line | ||
| Max Surge Voltage | 6KV (Note: 1.2/50μs CDN must work with SG61000-5 Generator; 10/700μs CDN must work with SG61000-5C Generator (SG61000-5C already has a built-in CDN61000-5C-M4CC) | |||||
| EUT Type | Ethernet and LAN (such as RJ45) | LIN, CAN, RS485, RS232, RS422, 4-20mA | LIN, RS232 | |||

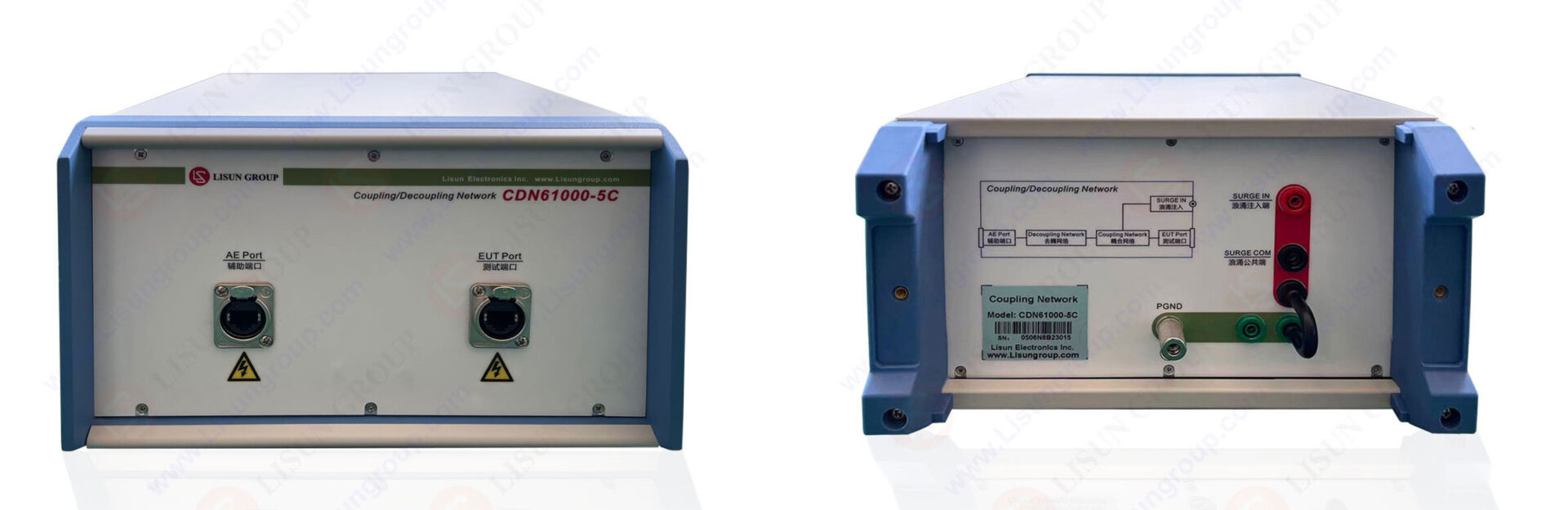

CDN61000-5C-H Series Coupling Decoupling Network for High Speed Communication Lines

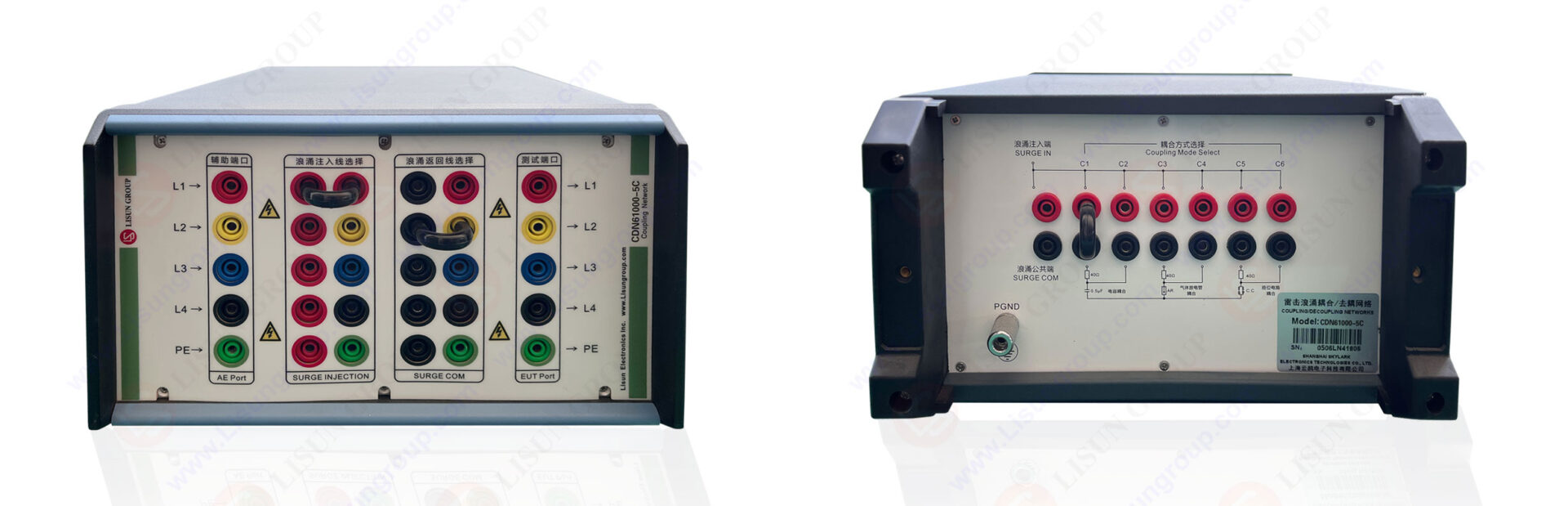

CDN61000-5C-M Series Coupling Decoupling Network for Low Speed Communication Lines
