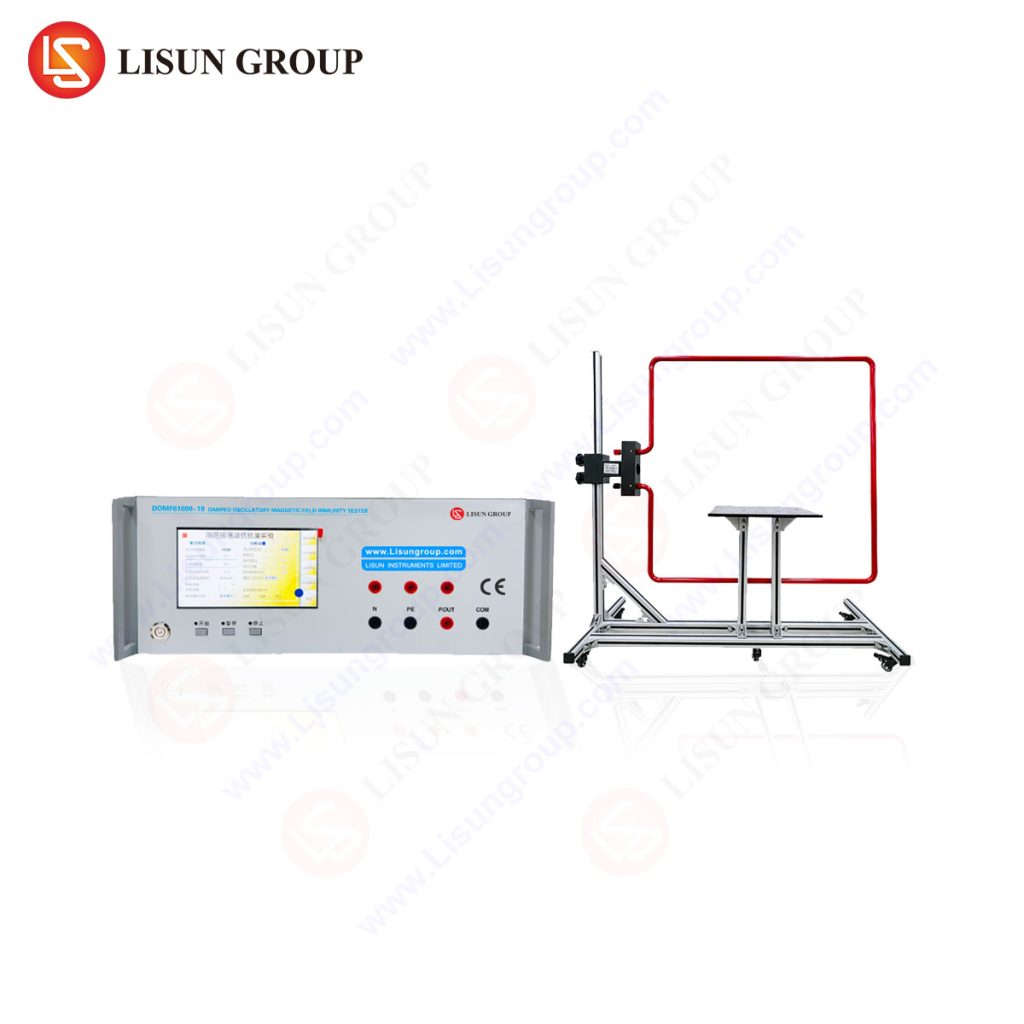

DOMF61000-10 damped oscillatory magnetic field immunity test system includes damped oscillating wave generator and single ring coil. It’s designed for damping oscillation magnetic field immunity test.
Standard:
IEC 61000-4-10, EN61000-4-10/GB/T 17626.10 “Electromagnetic compatibility (EMC) – Part 4-10: Testing and measurement techniques; Damped oscillatory magnetic field immunity test; Amendment 1”
IEC 255-22-1 “amortie 1 MHz Electrical relays – Part 22-1: Electrical disturbance tests for measuring relays and protection equipment – 1 MHz burst immunity tests”
IEC 255-22-3 “Measuring relays and protection equipment – Part 22-3: Electrical disturbance tests – Radiated electromagnetic field immunity “
ANSI C37.90 “Relays and Relay Systems Associated with Electric Power Apparatus “
GB/T 14598.13 “Electrical disturbance tests for measuring relays and protection equipment Part 1: 1 MHz burst disturbance “
Specification:
| Magnetic Field Strength | 0~100A/m |
| Oscillation Frequency | 100kHz, 1MHz |
| Pulse Polarity | Positive, Negative or Positive/Negative automatic |
| Rise Time | 75ns±20% |
| Attenuation | Attenuation to half value of first peak within fifth peak to tenth peak |
| Repeat Frequency | 1~80Hz(oscillation frequency: 100kHz)-Adjustable; 1~500Hz(oscillation frequency: 1MHz)-Adjustable |
| Burst Width | 1～9999s(Adjustable) |
| Pulse Interval | 1～9999s(Adjustable) |
| Test Function | Built-in IEC standard test levels; Step voltage; Big LCD touch screen |
