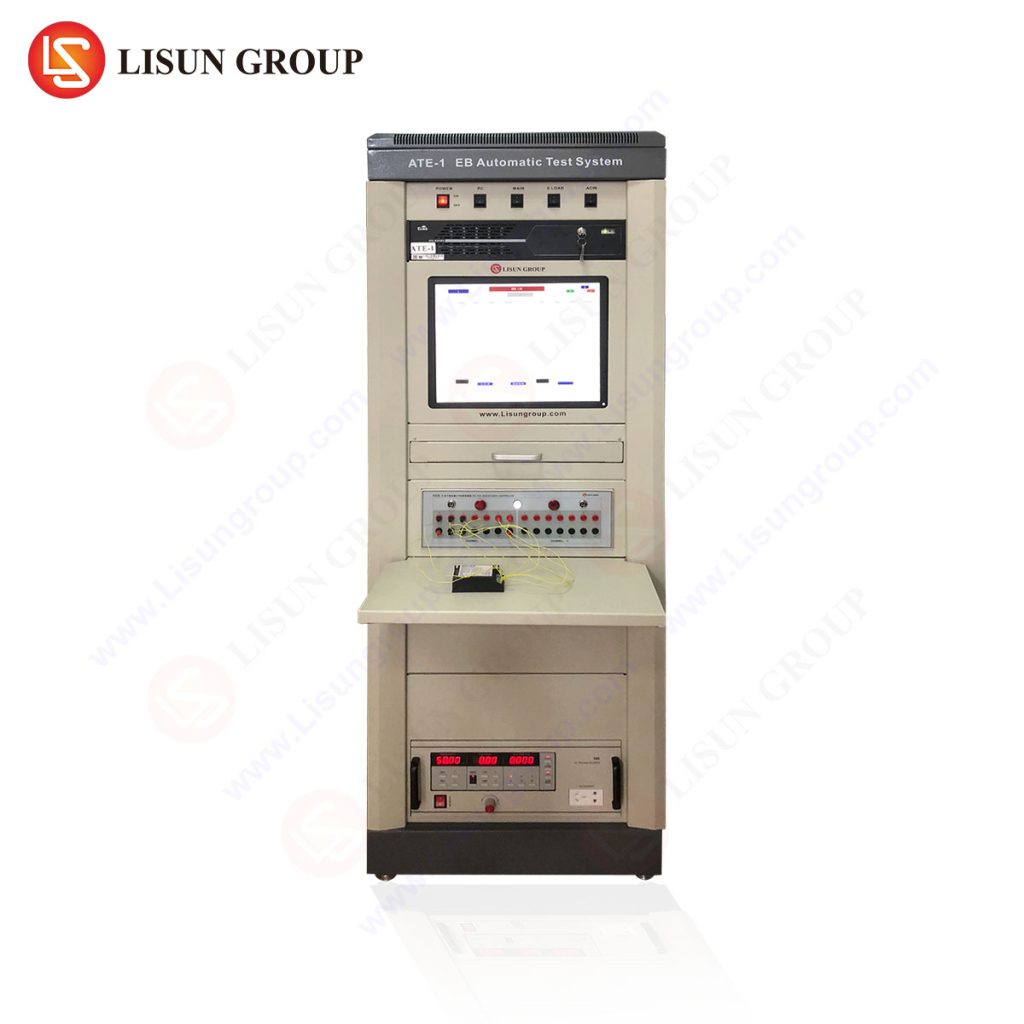

The ATE-1 is designed for testing fluorescent ballast on production line. It fully meet the IEC62384 and UL935 Standard.

Standard:
IEC62384 “DC or AC supplied electronic controlgear for LED modules – Performance requirements”
UL935 “Standard for Fluorescent-Lamp Ballasts”

Specification:
Test series connection, parallel connection and series/parallel connections of the electronic ballast (about 15 kinds of connections), available for various electronic ballast.
• With a precise resistance box, tube is substituted for the resistance, can act as many as 6 tubes. Resistance value: 1-4095Ω adjustable.
• Measure input parameters (vrms, irms, w, pf, harmonics, etc), output parameters (on-circuit voltage, lamp voltage, filament voltage, lamp current, lamp power, oscillatory frequency), can also test the ballast efficiency, abnormity protection, and power symmetry of partial rectifier effect and etc.
• Program controlled AC power source to guarantee the smart choice of input voltage and the frequency.
• Equipped with 17 inch LCD controlled machine, specially designed A/D combined with special CPU, has the two left and right testing interfaces to achieve stability of data and high- speed testing.
• We can make the special-designed product for you and promise to upgrade the software for free.
