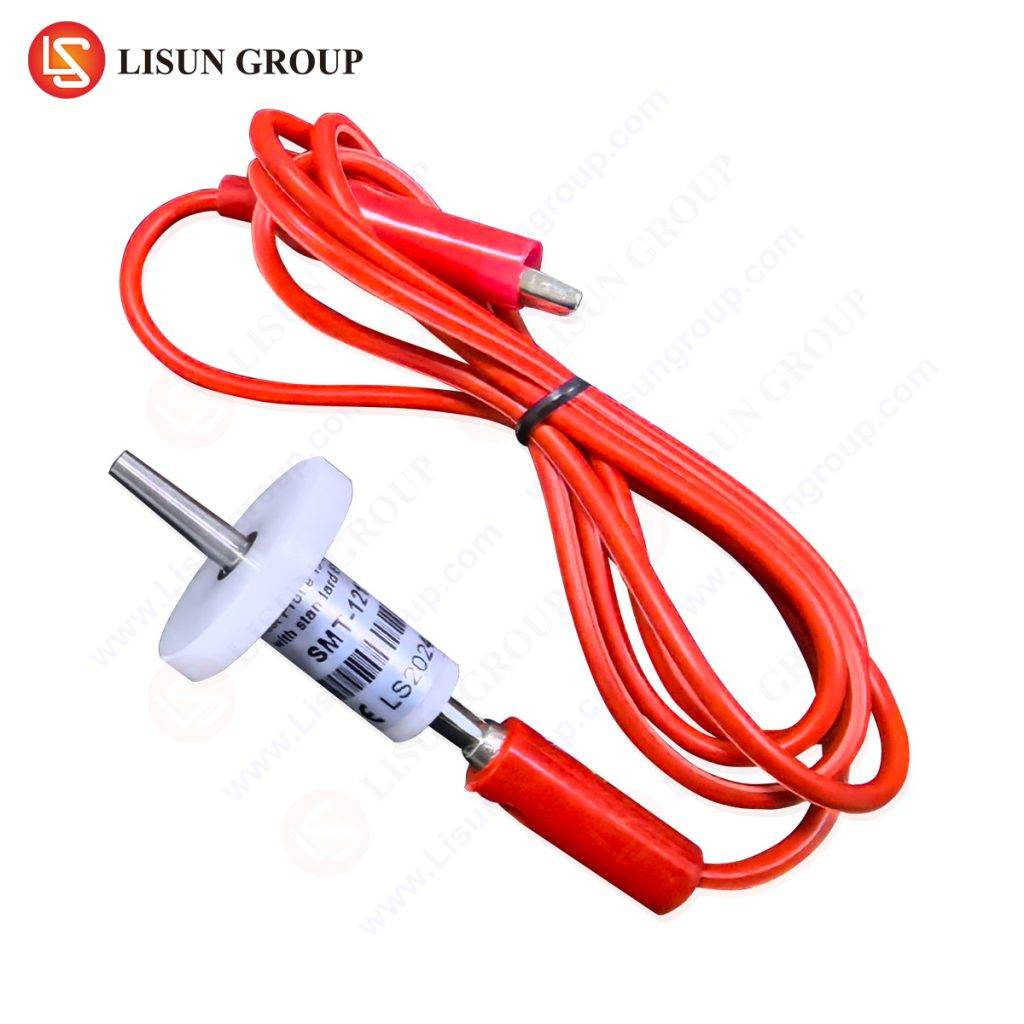

Meets IECCSA & UL requirements Test Probe 13 of Short Test Pin – Fig. 9 of EN 61032.

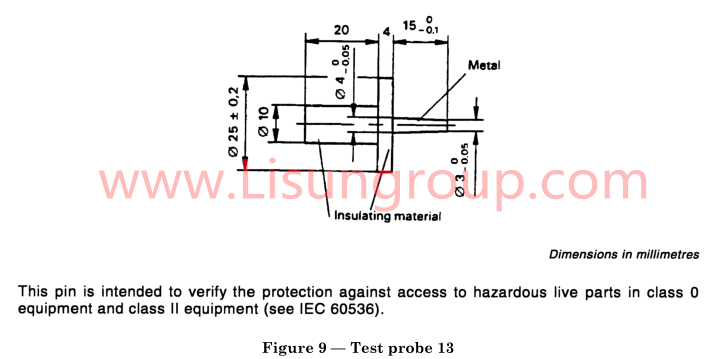

This Test Probe Pins (Figure 9 – Test probe 13 of IEC61032) is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment (see IEC60536).

Conforms to:
Standard IEC61032, IEC60065, IEC60335-1, IEC60950, IEC60601, IEC60745 and UL etc.

Technical Parameter:
Test probe diameter: 3 mm
Test probe length: 15 mm
Baffle plate thickness: 4 mm
Baffle plate diameter: 25 mm
Handle length: 20 mm
Handle diameter: 10 mm

Standard:
IEC 61032 “Protection of persons and equipment by enclosures – Probes for verification
IEC 60065 “Audio, video and similar electronic apparatus – Safety requirements”
IEC 60335 “Household and similar electrical appliances – Safety – Part 1: General requirements”
IEC 60950-1 “Information technology equipment – Safety – Part 1: General requirements”
IEC 60601 “Safety requirements for electrical equipment for measurement, control, and laboratory use – Part 1: General requirements”
IEC 60745 “Hand-held motor-operated electric tools – Safety – Part 1: General requirements”
