Foot Probe of EN 60335-2-2 Figure Z101

Product No:

Leave a Message

=

Foot Probe of EN 60335-2-2 Figure Z101

Leave a Message

=
Product Description

Application:
The Foot Probe conforms to the standard of BS EN 60335-2-2 Figure Z101 and UL 1447 Figure 65.1. The standard requires rotary power mowers to have protective shields.

These shields prevent the operator’s foot from contacting the blade, either under the mower’s deck or in the discharge chute area, when the operator has his or her hands on the mower’s controls. Generally, a shield must prevent a foot probe from entering the path of the mower blade or from forcing any part of the mower into the path of the blade. The only difference between the UL Foot Probe and International Foot Probe is the length of the simulated leg.

Standard:
BS EN 60335-2-2 “Household and similar electrical appliances. Safety – Particular requirements for vacuum cleaners and water-suction cleaning appliances” Figure Z101
UL 1447 “Electric Lawn Mowers” Figure 65.1

SMT PA235A YK

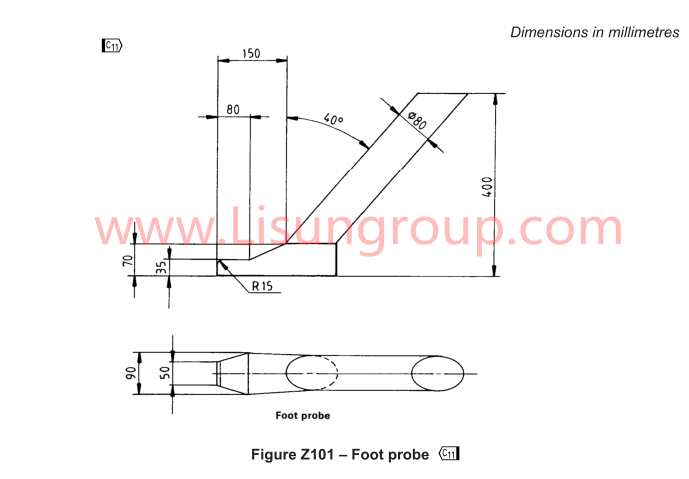

Foot Probe of EN 60335-2-2 Figure Z101

SMT PA235A YK1

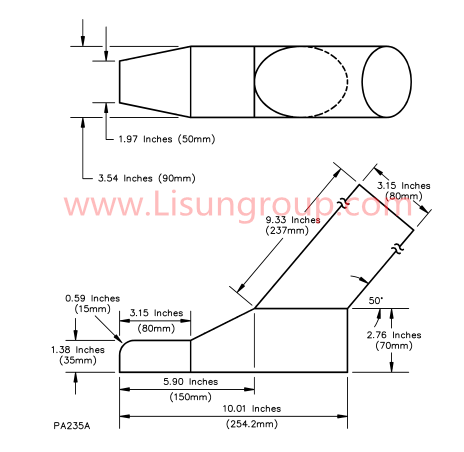

Foot Probe of EN 60335-2-2 Figure Z101
