The 69kpa cylindrical weight and compression liner are made according to the requirements of Annex Y.4.4 and Figure Y.1 of IEC 62368-1:2023 and Figure 19.26.1 of Clause 19.26 of UL 1598:2008, and are used for compression testing of gaskets.
Specifications:
| Cylindrical weight outer diameter | φ100 |
| Cylindrical weight mass | 18kg |
| Compressed liner external dimensions | Length 225mm*Width 50mm，Thickness not limited |
| Compressed liner inner dimensions | Length 200mm*Length 25mm |

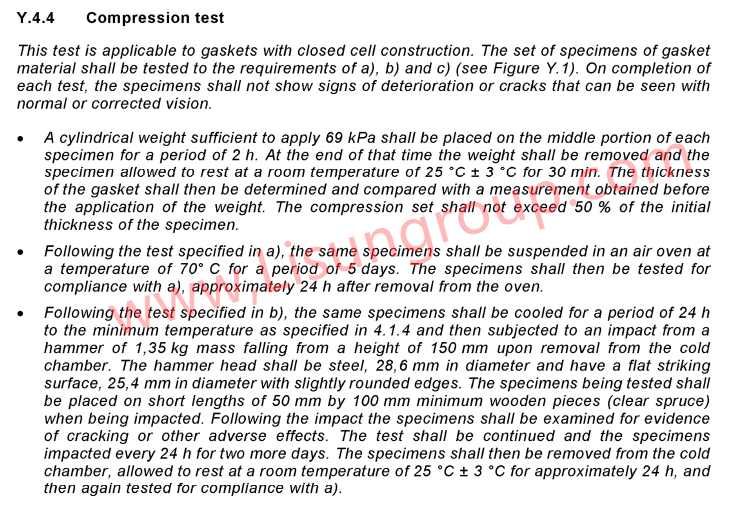

IEC 62368-1:2023 Annex Y.4.4
IEC 62368-1:2023 Figure Y.1

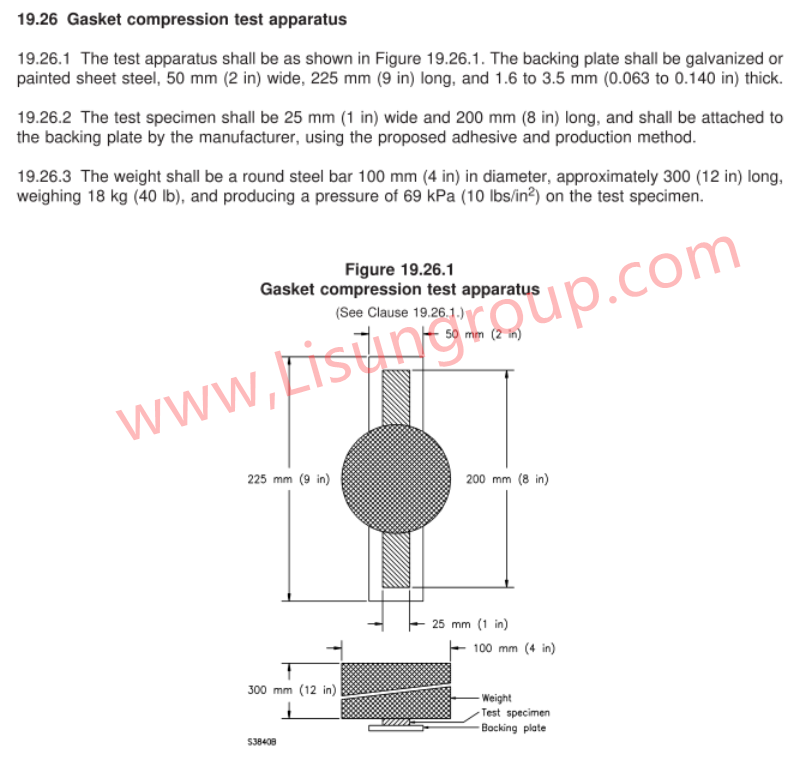

UL 1598:2008 Clause 19.26 and Figure 19.26.1
