Haze Meter and Spectrophotometer (Transmittance)

Product No:

Leave a Message

=

Haze Meter and Spectrophotometer (Transmittance)

Leave a Message

=
Product Description

Haze Meter and Spectrophotometer HM-700 is designed for color, haze, spectral transmittance and total transmittance measurement of transparent and translucent materials such as plastic sheets, films, glass, LCD panel and touch screen, etc.

Product Introduction:
1. Comprehensive Transmission Color Parameters

Color and haze meter hascomprehensive color parameters, which can measure dozens of color parameters such as Lab, yellowness index, whiteness index, Gardner, Pt-Co / APHA / Hazen colors.

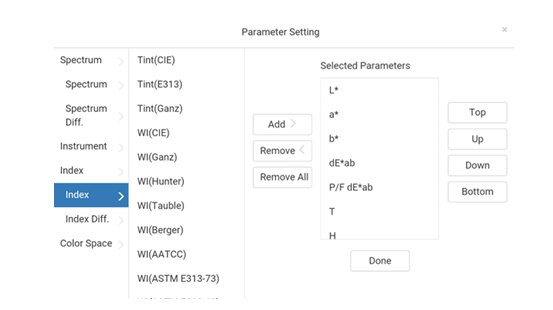

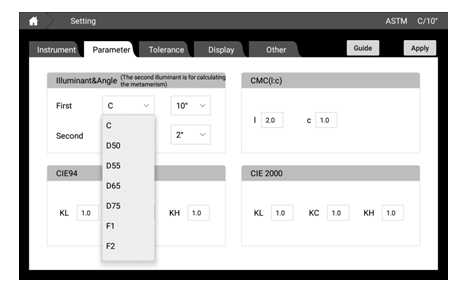

HM-700 parameter setting

HM-700 parameter setting

2. Comply with ASTM and ISO standards
The clarity and haze meter complies with both ASTM and ISO measurement standards. It can meet the following measurement standards ASTM D1003 / D1044, ISO13468 / ISO14782, JIS K7105, JIS K7361, JIS K7163 and other international standards.

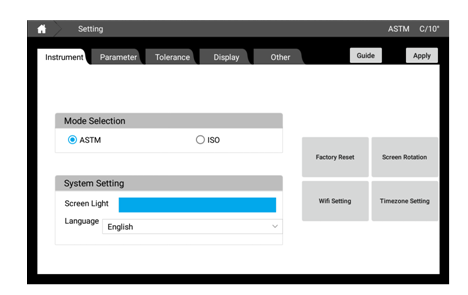

HM-700 ASTM and ISO standards

HM-700 ASTM and ISO standards

3. Different Light Sources for Different Measurement Requirements
Color and haze meter provides A, C and D65 measurement light source selection, and 24 types of measurement light source for color measurement.

HM-700 standard light sources

HM-700 standard light sources

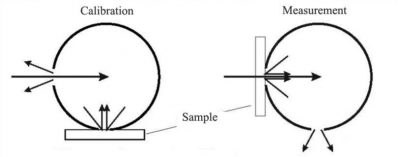

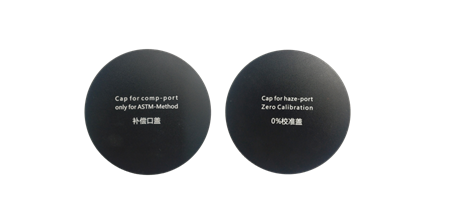

4. Compensation Measurement to Make Test Result More Accurate
It can realize the compensation measurement of transmittance and provide more accurate transmittance test results.

HM 700 Haze And Transmittance Measurement 4

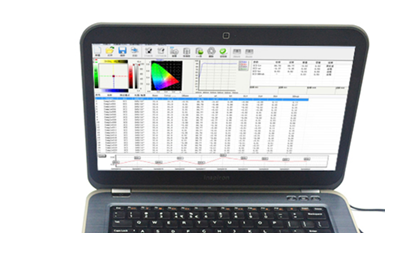

5. Haze QC software as Standard Accessory
Provide powerful haze, color, and transmittance measurement and analysissoftware, which can operate on a computer to generate and print test reports.

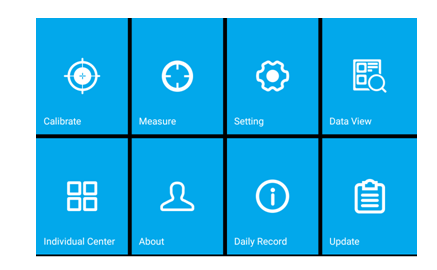

6. Seven-inch Android Touch Screen for Better Testing Experience
Android operate system and touch screen for more convenient operation and better user experience.

HM-700 android program

7. Open Sample Measurement Area, Sample can be Measured Horizontally or Vertically
Open samplemeasurement area, which is no limit on sample size, you can perform horizontal or vertical measurement according to different samples.

8. Abundant Measurement Fixtures
Meet the measurement needs of different forms of sheet and liquid samples

Specification:

Model

HM-700

Light source

Haze / Transmittance: CIE-A、CIE-C、CIE-D65
Chromaticity index: A, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CMF,U30,DLF,NBF,TL83,TL84

Standards

ASTM D1003/D1044,ISO13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08,CIE No.15,ISO 7724/1,ASTM E1164,DIN 5033 Teil7,JIS Z8722 Condition c standard

Parameters

Haze (HAZE),Transmittance (T),Spectral transmittance,

CIE Lab,LCh,CIE Luv,XYZ,Yxy, , Hunter Lab MunsellMI,CMYK,Whiteness WI(ASTM E313-00,ASTM E313-73, CIE/ISO, Hunter, Taube Berger Stensby),

Yellow Index YI(ASTM D1925, ASTM E313-00, ASTM E313-73),

Tint(ASTM E313-00), Heterochromatic index Milm,

APHA, Pt-Co(Index of platinum cobalt),Gardner, Color difference (ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*94, ΔE*00)

Measuring Range

0-100% (Haze, transmittance)

Spectral Response

CIE The spectrum functionY/V(λ)

Wavelength Range

400-700nm

Wavelength Interval

10nm

Geometry

0/d

Illumination Area and Aperture

16.5mm/21mm

Resolution

0.01 unit

Repeatability

haze<10%, repeatability≤0.05;

haze≥10%, repeatability≤0.1%;

Transmittance≤0.1%

Sample Size

thickness≤145mm

Display

7 InchesTouch Screen

Data Storage

20,000 values

Interface

USB

Power

110V / 220V / 240V

Working Temperature

0~45℃, Relative humidity 80% or below (at 35 ° C), no condensation

Storage Temperature

-25 ℃ ~ 55℃, relative humidity 80% or below (at 35 ℃), no condensation

Instrument Size

598mm*247mm*366mm

(length * width * height)

Standard

PC management software (Color QC)

Optional

Measuring Fixture, Haze Standards, Transmittance Standards, 5mm / 7mm / 10mm Apertures, 40 * 10 Glass Cell

Standard:
ASTM D1003 “Standard Test Method for Haze and Luminous Transmittance of Transparent Plastics”
ASTM D1044 “Standard Test Method for Resistance of Transparent Plastics to Surface Abrasion by the Taber Abraser”
ISO 13468 “Plastics — Determination of the total luminous transmittance of transparent materials”
ISO 14782 “Plastics — Determination of haze for transparent materials”
CIE No.15 “Colorimetry”
ISO 7724-1 “Paints and varnishes — Colorimetry”
ASTM E1164 “Standard Practice for Obtaining Spectrometric Data for Object-Color Evaluation”
DIN 5033-7 “Colorimetry; measuring conditions for object colours”
ASTM E313 “Standard Practice for Calculating Yellowness and Whiteness Indices from Instrumentally Measured Color Coordinates”
ASTM D1925 “Test Method for Yellowness Index of Plastics”
JISK7105, JISK7361, JISK7136, JIS Z8722, GB/T2410-08

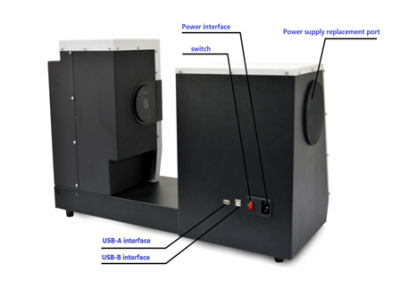

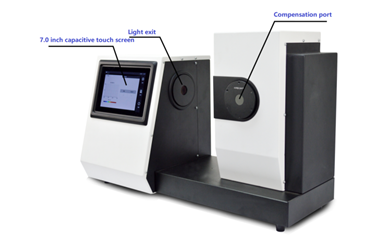

Instrument detail:

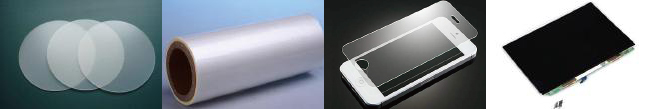

Application:
Plastic sheet, film, glass, screen, etc.
Haze Meter Application
