LS-B58 Test Device for Contact Water Luminaire fully complies with IEC 60598-2-18 Clause 18.13 Figure 1 (GB/T 7000.218-2023 Clause 13.3 Figure 1), and is an ideal test device for testing institutions and water contact lamp manufacturers. This test device is suitable for durability tests and thermal tests of swimming pool lamps that are in contact with water at the front. The machine cools the water temperature through the chiller through circulating water, and can also heat the water through the heater to increase the water temperature. The water temperature is controlled by PLC intelligent adjustment to the test water temperature.
Specification:
Name | Specification |
Power Supply | AC220~240V, 50Hz/60Hz, 1500W Max |
Control System | 7-inch color touch screen and PLC control |
Water Chiller | Temperature control range ≤300 liters, refrigerant R134a, cooling capacity 600W, compressor power 1/3HP |
Heater | 220V, 1kW, stainless steel heater |
Circulating Water Pump | 40W, 220V |
Water Tank | SUS304 |
Liquid Level Control | Liquid level sensor intelligent identification |
Temperature Monitoring | 1 channel |
Lighting Installation Plate | Overall dimensions: 250*250，maximum opening φ200mm (default is the opening size of 36W lamps. Note: other sizes can be customized) |
Glass Observation Window | Opposite the lamp installation position is the observation window |
Lighting Sand Filling Space | Left and right direction ≥250mm |
Overall Dimensions | L*W*H=670*370*1300mm |
Standard:

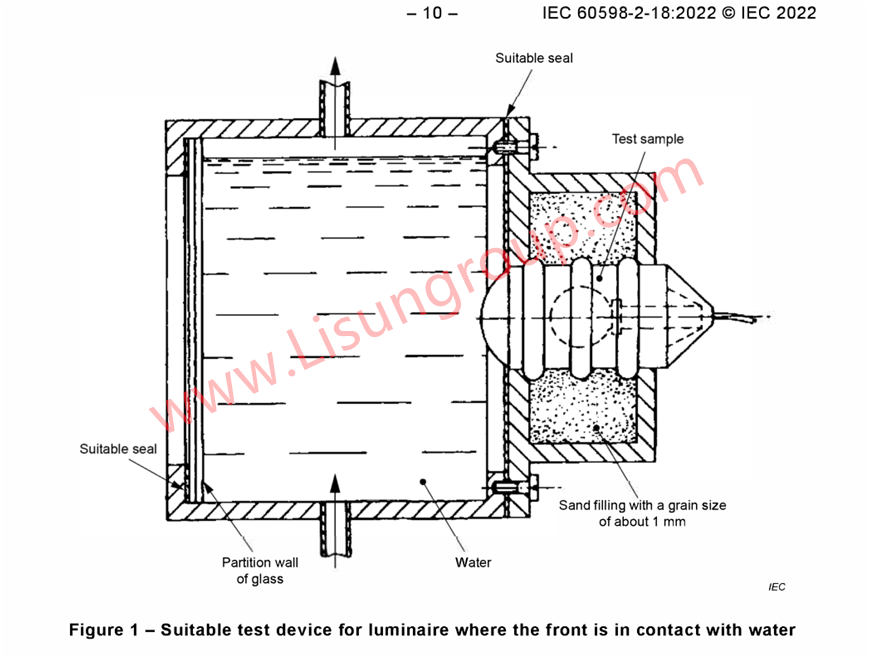

IEC 60598-2-18 Clause 18.13 Figure 1 (GB/T 7000.218 Clause 13.3 Figure 1) “Luminaires – Part 2-18: Particular requirements – Luminaires for swimming pools and similar applications”
IEC 60598-2-18:2022 Clause 18.13 Figure 1
