The LS-B05 Concealed Socket IP Testing Wall fully complies with IEC 60884-1:2022 Clause 16.2 Figure 18 (GB/T 2099.1-2021, Section 16.2 and Figure 15). It is used to simulate the waterproof performance (IP rating) of electrical accessories, such as 86 mounting box sockets, when used in damp environments.
Standard:
IEC 60884-1 (GB/T 2099.1) “Plugs and socket-outlets for household and similar purposes – Part 1: General requirements” Clause 16.2 Figure 18
Specification:
|
Parameter |
Specification |
|
Housing Material |
SUS304 |
|
Mounting Box |
86 mounting box |
|
Dimensions |
Minimum: 400mm×400mm |
|
Composition |
Brick, cement mortar, stainless steel housing, electrical mounting box |

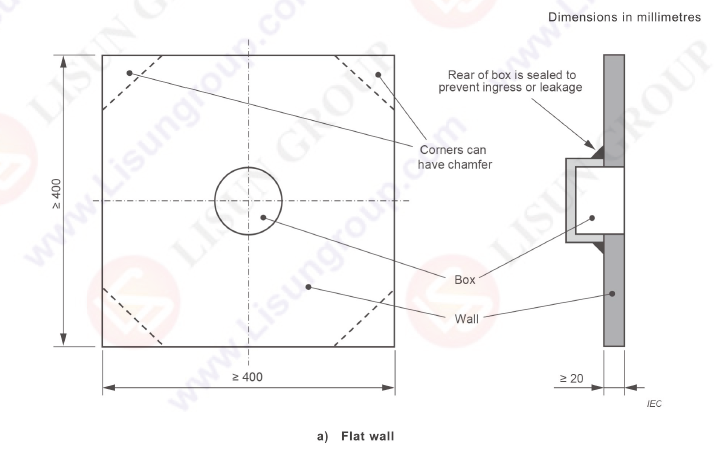

IEC 60884 1 Figure 18
