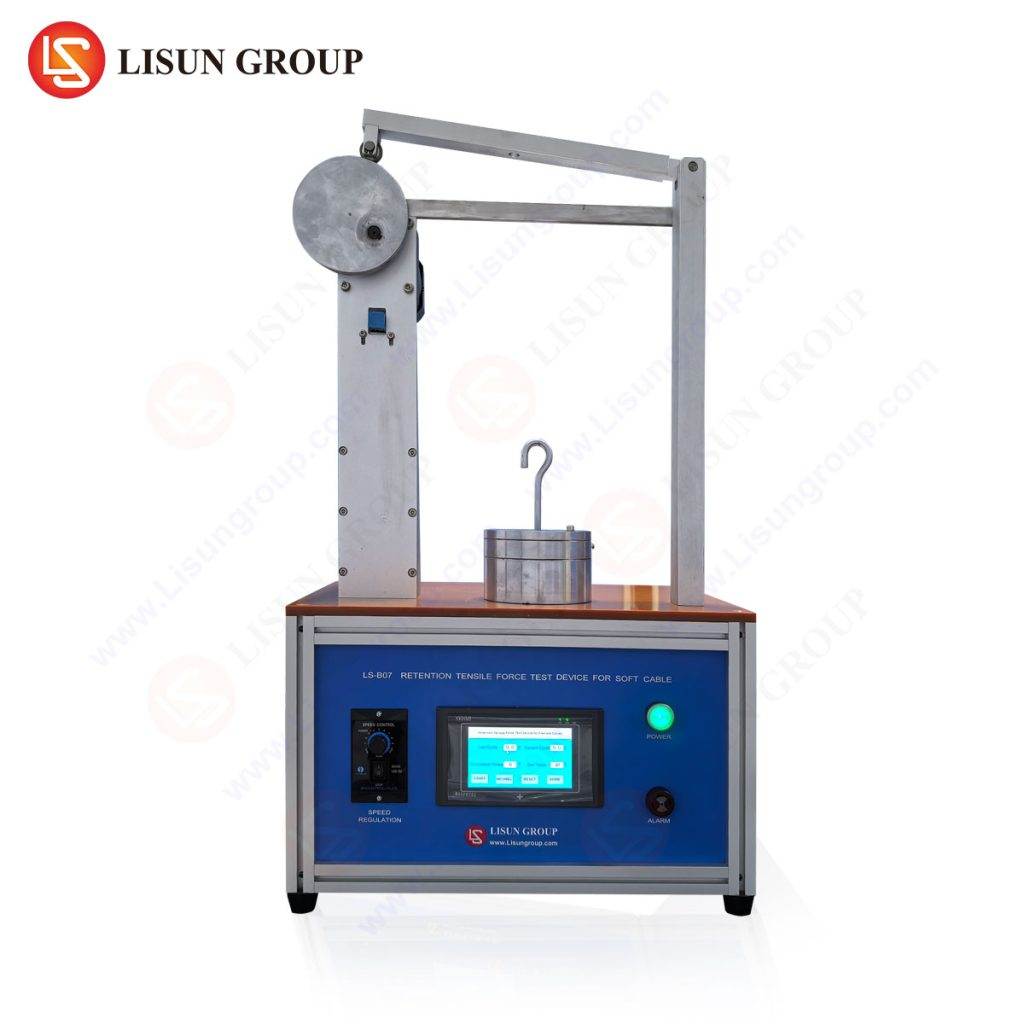

The LS-B07 Retention Tensile Force Test Device for Flexible Cables is designed and manufactured in full accordance with the requirements of IEC 60884-1:2022 Clause 23.2 Figure 27, and EN 50075:1990 Clause 12.2 and Figure 5. It is used to inspect whether the fixing of the plug or socket wires to electrical accessories is secure.
Standard:
IEC 60884-1 (GB/T 2099.1) “Plugs and socket-outlets for household and similar purposes – Part 1: General requirements” Clause 23.2 Figure 27
EN 50075 “Flat non-rewirable two-pole plugs, 2,5 A 250 V, with cord, for the connection of class II-equipment for household and similar purposes” Clause 12.2 and Figure 5
Specification：
| Display Touch Screen | Color touch screen + PLC |
| Drive Mode | Gear motor |
| Eccentric Wheel | Effective diameter φ125 |
| Eccentricity of the Eccentric Wheel | 32.5mm |
| Sample Distance from Pivot | 200mm |
| Sample Distance from Impact Point of Eccentric Wheel | 160mm |
| Weights | Combination of 50N, 60N, 80N, 100N weights |
| Number of Tests | Presettable from 0 to 9999 |
| Duration of Force Application Control | Adjusted by speed controller, with screen displaying the duration of force application |
| Test Completion Alarm | Audio-visual alarm |
IEC 60884 1 Figure 27
