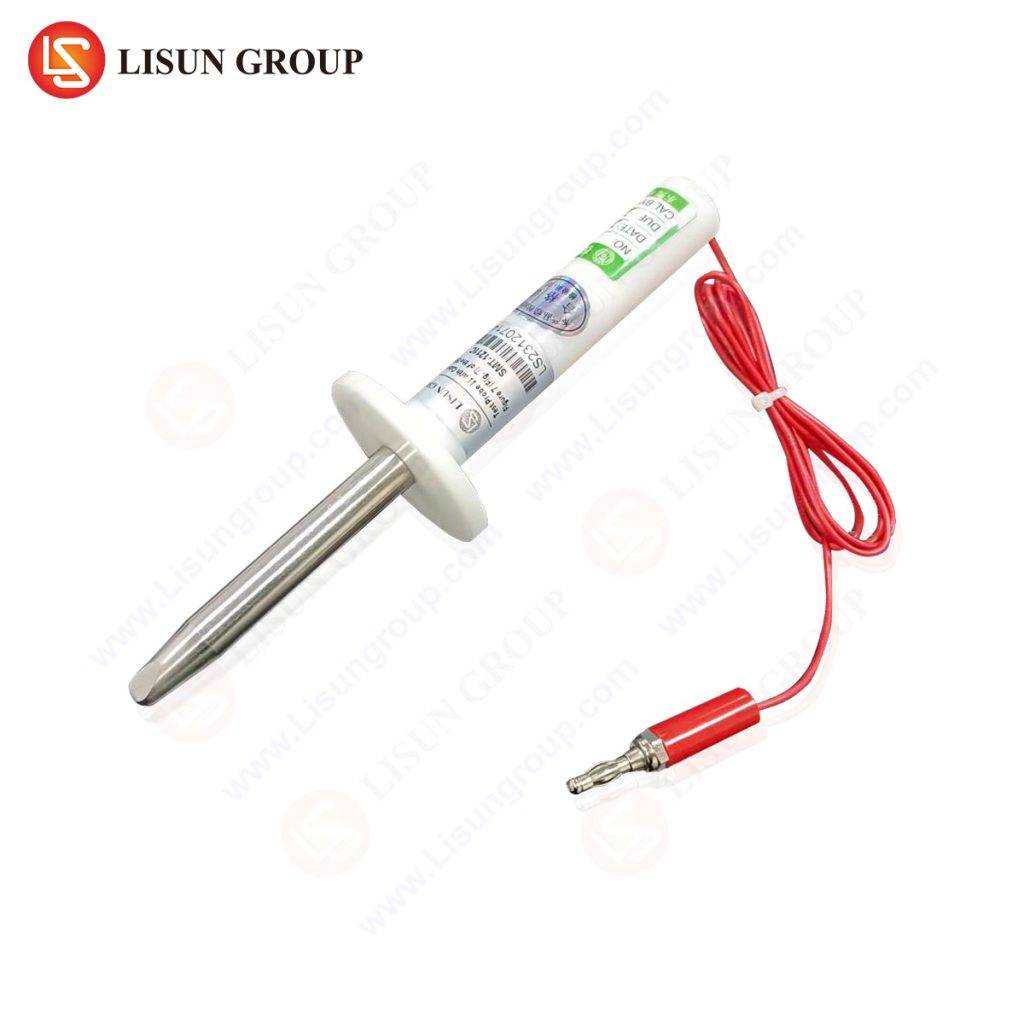

Unjointed Rigid Finger Test Probe of IRAM 4220-1 / IEC61032 / IEC60335

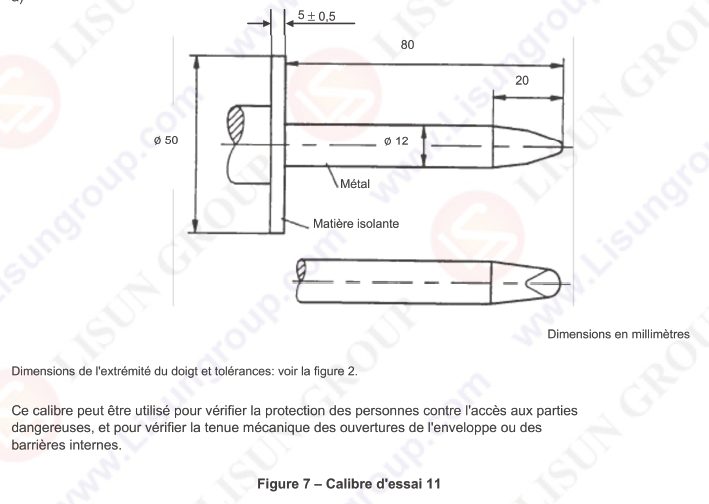

The Rigid Test Finger is a precision test probe made according to Figure 7 (Fig. 7) of the IEC61032 (Test probe 11) and is used to simulate a human finger. It is also used by the standards of CSA, IRAM, UL. IEC60335, IRAM 4220-1 and in most of the rules involved in the verification of accessibility to live parts.

The Rigid Test Finger was made on stainless steel and Polyamide handle.

Material: Stainless Steel.
Handle: Polyamide.
Finish: Chrome plating.

Standard:
IEC 61032 “Protection of persons and equipment by enclosures – Probes for verification
IEC 60529 “Degrees of protection provided by enclosures (IP Code)”
IEC 60335 “Household and similar electrical appliances – Safety – Part 1: General requirements”
IRAM 4220-1, CSA, IRAM, UL
