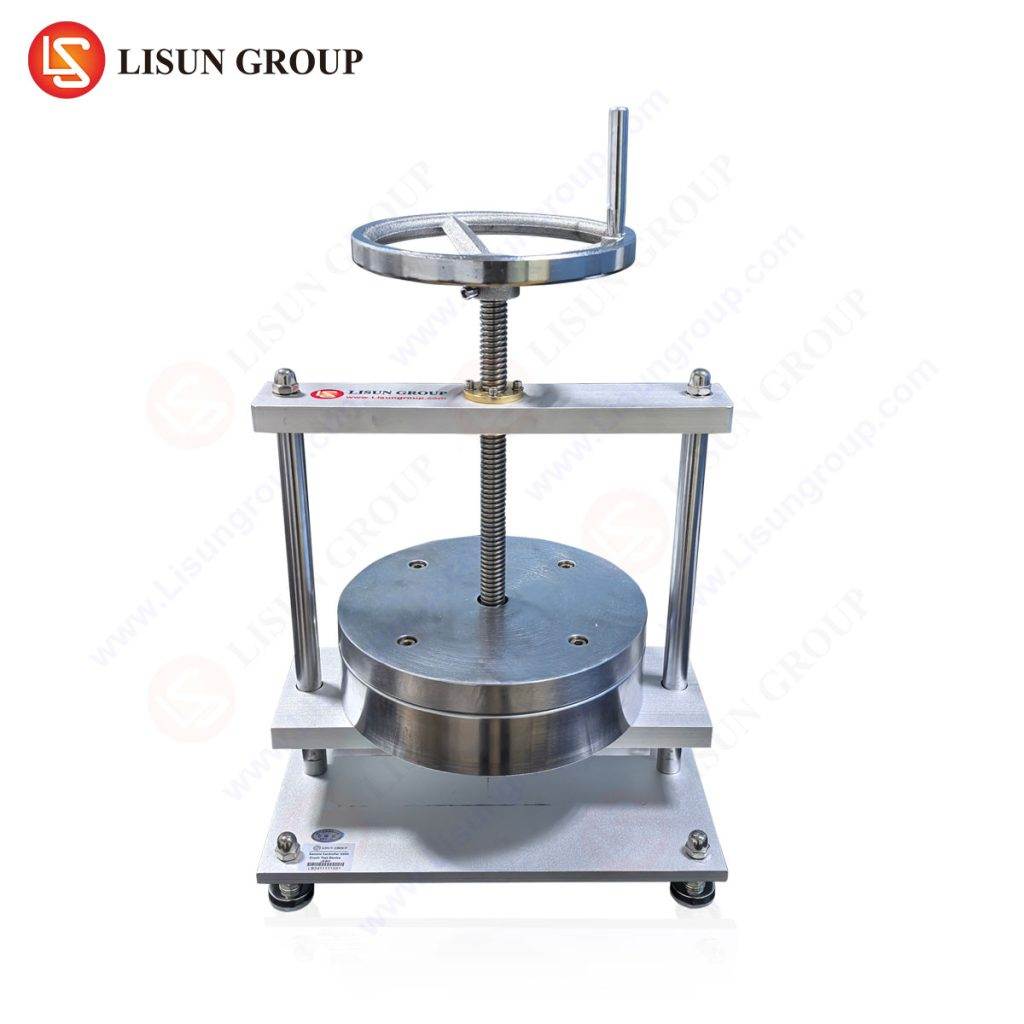

This device complies with the crush test requirements of clause 4.8.4.6 of the standard IEC  62368-1:2023 and is suitable for handheld remote control devices, as long as they can remain self-supporting , then place it on a fixed rigid support surface in a state that can produce the most unfavorable results, and perform a crush test.

This device uses a flat rigid surface with a size of approximately 100*250mm to apply a crushing force of 330N±5N to the exposed top and back surfaces of the remote control in a stable state for a duration of 10S.

Standard:
IEC  62368-1:2023 “Audio, video, information technology and communication technology equipment Part 1: Safety requirements” clause 4.8.4.6

Specification:
• Weight: 330N±5N
• Workstation: single workstation
• Operation mode: Manual
• Rigid supporting surface: greater than 150mm×300mm
• Force application plane: 100mm×250mm

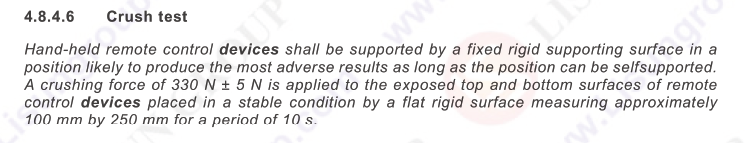

Clause 4.8.4.6 of IEC  62368-1:2023
