IEC 62560 IEC 60598 Bending Moment Test Device for Lamp Cap

Product No:

Leave a Message

=

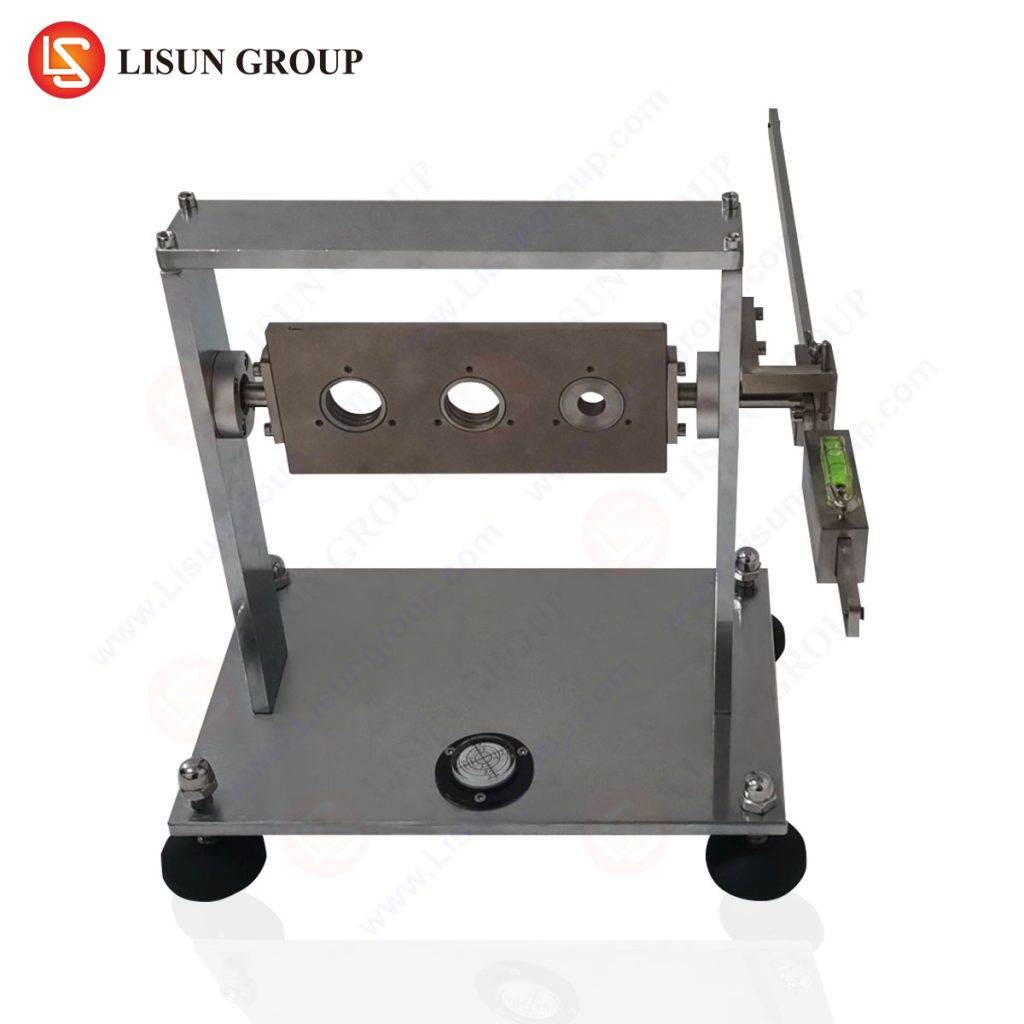

IEC 62560 IEC 60598 Bending Moment Test Device for Lamp Cap

Leave a Message

=
Product Description

The bending moment test device for lamp Cap is designed in accordance with the requirements of standard IEC 62560 section 6.2 and IEC 60598-1 section 4.14.2, and also complies with the requirements of chapter 6.2 of GB 24906-2010 and the corresponding requirements. It is mainly used for testing the torque of light bulbs.

Specification:
• Torque range: 0.1~2.5N•m
• Accuracy: ±5%
• Mechanical type
• Lamp cap torque value (The default configuration is E27, other lamp cap types need to be customized):

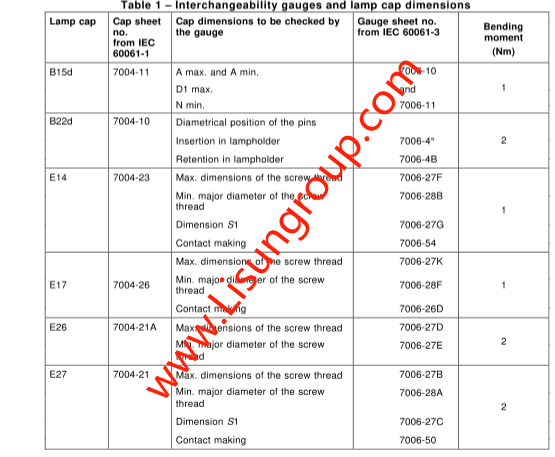

No.Lamp Cap TypeBending moment(Nm)
1B15d1
2B22d2
3E110.5
4E120.5
5E141
6E171
7E262
8E272
9GU100.1
10GZ100.1
11GX530.3
12E391
13E401

3

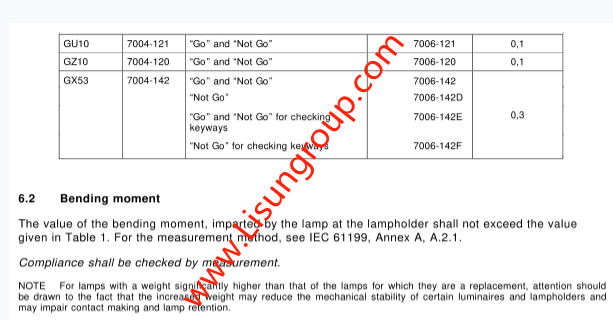

IEC 62560 section 6.2

4

IEC 62560 section 6.2
