An isolation transformer is a transformer with electrical isolation between the input winding and the output winding. Isolation transformers are used to prevent accidental contact with live objects. The isolation of the transformer is to isolate the current of the primary and secondary coils. It is widely used in industrial and mining enterprises, the electronics industry, precision instruments and equipment, medical equipment, and machine tool equipment. LISUN’s Surge Generator series products must be equipped with a matching isolation transformer to work properly.
Specification:
• Input voltage = Output voltage = Customer’s local rated voltage (Please inform the specific value of input voltage when placing an order)
• Single phase output current = Power * 80%/Output voltage
• Three-phase output current = Power * 80%/1.732/Output voltage
• Output Power = Actual power used * 1.5
| Model | Input voltage | Output voltage | Input/Output Power |

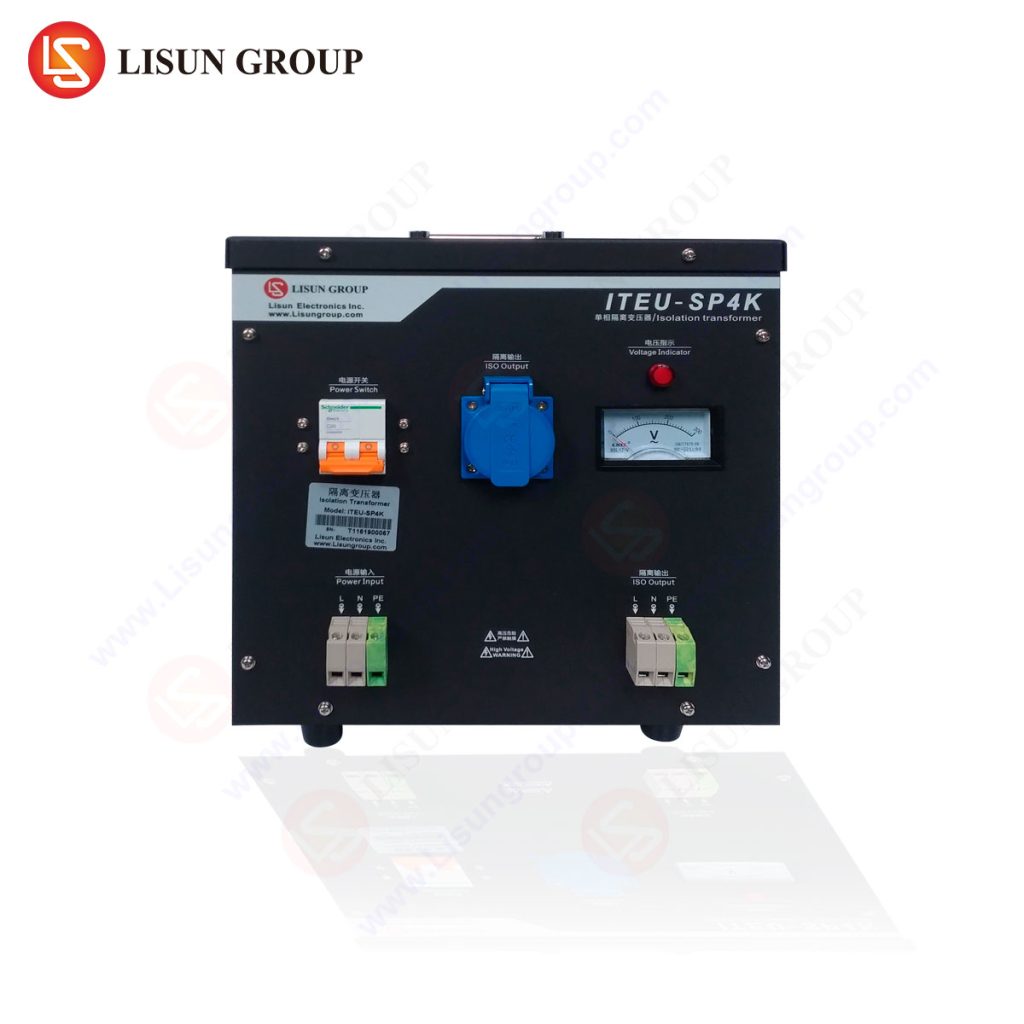

| ITEU-SP4K | 220-240V | 220-240V | Single Phase/4KVA |
| ITEU-SP5K | 220-240V | 220-240V | Single Phase/5KVA |
| ITEU-SP10K | 220-240V | 220-240V | Single Phase/10KVA |
| ITUS-SP2K | 110-120V | 110-120V | Single Phase/2KVA |
| ITUS-SP5K | 110-120V | 110-120V | Single Phase/5KVA |
| ITEU-TP20K | 316-480V | 316-480V | Three Phases/20KVA |
| ITUS-TP10K | 200-260V | 200-260V | Three Phases/10KVA |
