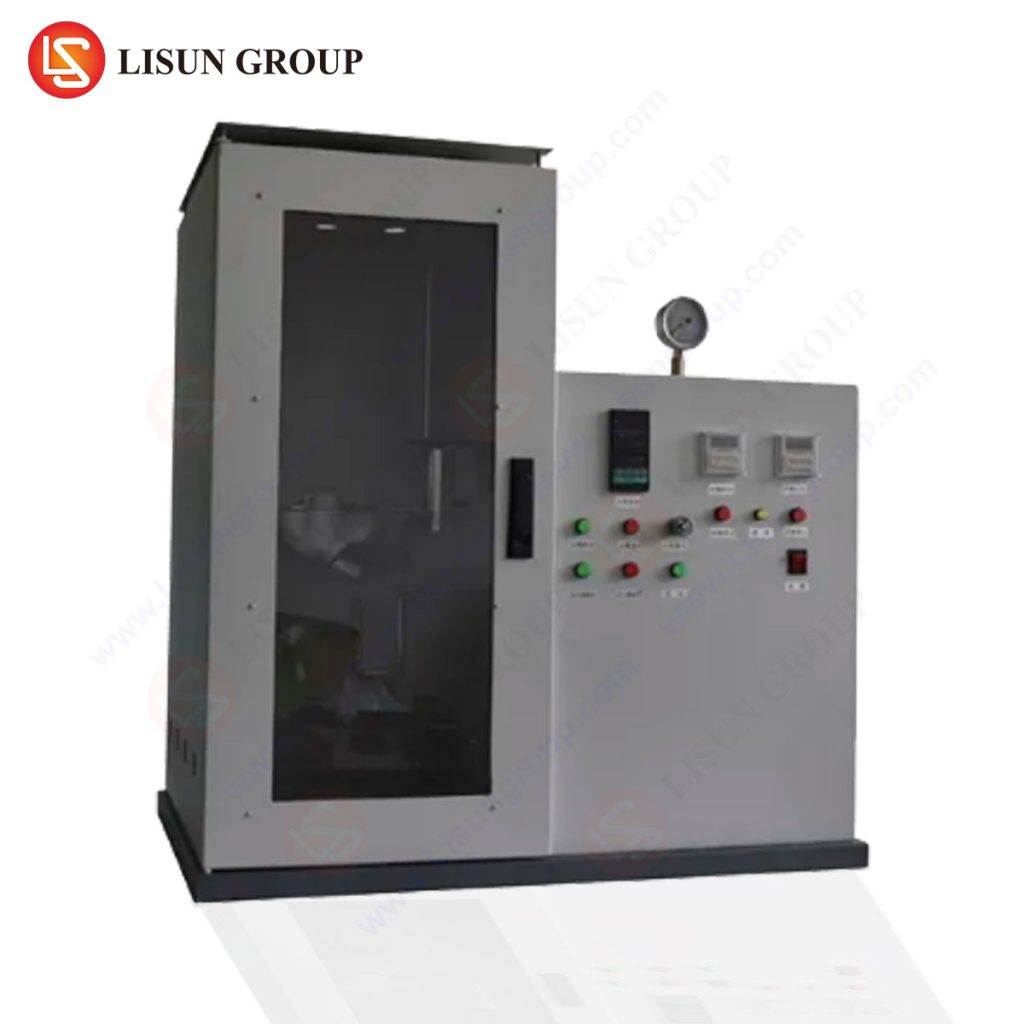

WKS-1208 Masks Flame Retardant Performance Tester is used to test the burning performance of the mask after contacting the flame at a certain linear velocity. It is a special test instrument for the flame retardant performance of masks.
Standard:
GB 19083-2010, YY 0469-2011, GB 2626-2006, GB 19083-2003
Specification:
| Line speed of head mould automatic movement | (60±5)mm/s |
| Flame height | 40±4mm ajustable |
| Height between flame and burner tip | (20±2)mm |
| Temperature between flame and burner tip | (800±50)℃ |
| The distance between the top of the burner and the lowest point of the mask | (20±2)mm |
| Height of burner | Adjustment range: 30mm |
| Wall thickness of the metal head mold | 2～3mm, flame and burning resistance |
| Dimension | 980*550*350mm |
| Continuous ignition time and ignition time timer | 0～9999.9s, accuracy±0.1s |
| Power supply | AC220V, 50Hz, 50W
|
Feature:
- PLC touch screen control system; make the test more convenient, easy to operate and visualize.
- The mask fixture is a metal human head mold which can fully simulate the actual use of the mask.
- The height of the burner is adjustable.
- The burner is automatic timing positioning.
- The burning time and flame retardant time are automatically recorded and displayed digitally.
- Equipped with flame temperature measurement probe and flame temperature indicator.
- Automatic control system, automatic ignition.
- The burner is equipped with combustible gas interfaces such as propane (liquefied petroleum gas).
- Automatic timing, automatic storage of test data, easy to retrieve experiment report.
- Equipped with flame temperature measurement and detection thermocouple.
