What is a ESD test?

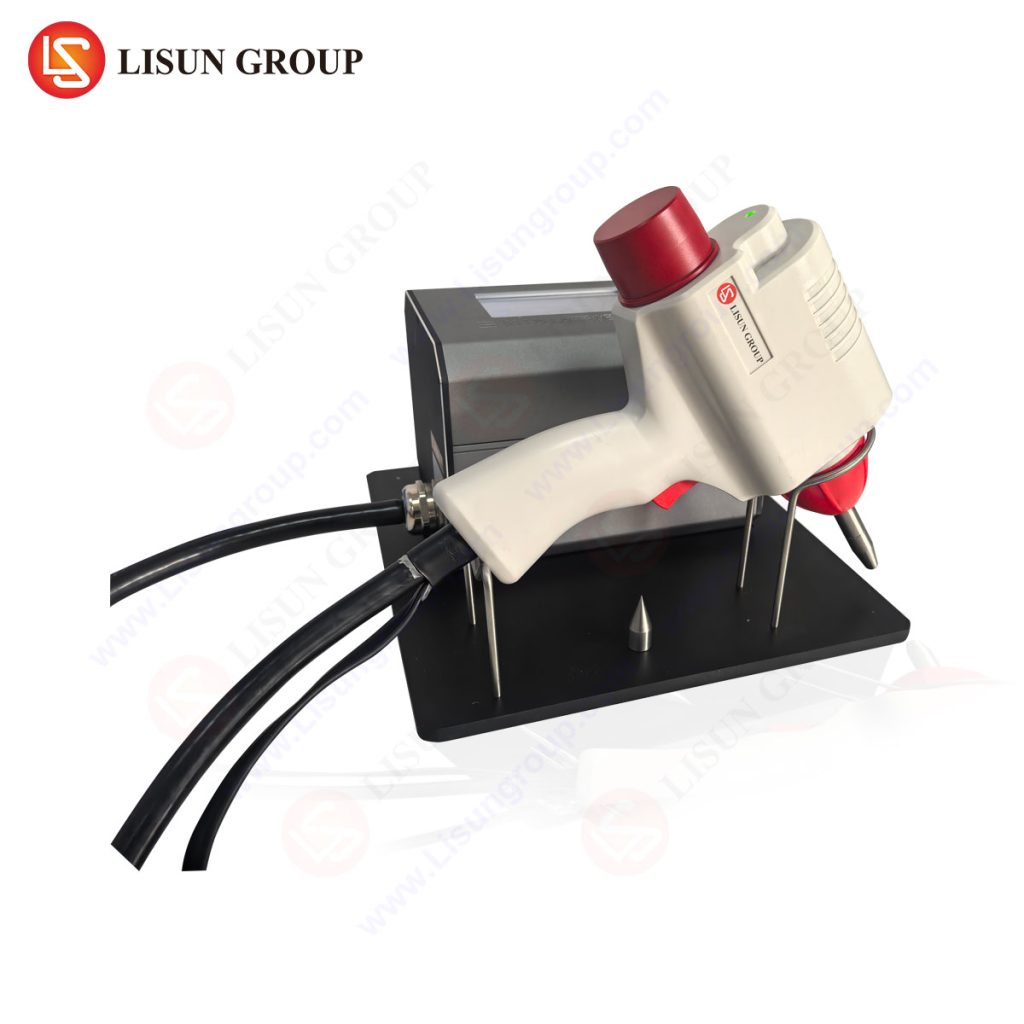

The static electricity generated by the human body to the object or between two objects may cause the electrical and electronic equipment circuits to malfunction or even be damaged. The Portable ESD Generator | Portable ESD Simulation Gun is designed for the withstanding ESD performance measurement for the assessment of electrical and electronic equipment. ESD61000-2P has a LCD touch screen in both English and Chinese.
What is an esd simulator gun used for?
Portable ESD Generator | Portable ESD Simulation Gun is highest electrostatic voltage can be up to 20 kv, which is enough to cover the most severe standard grade of electrostatic voltage requirement (the voltage requirements of the level 4 air discharge electrostatic is 15 KV). The Portable ESD Generator | Portable ESD Simulation Gun can be used for the most of electrical and electronic equipment for electrostatic discharge test, and also can ensure comparability and reproducibility of test.
Standard:
IEC 61000-4-2/EN61000-4-2/GB/T17626.2 “Electromagnetic compatibility (EMC) – Part 4-2: Testing and measurement techniques – Electrostatic discharge immunity test”
ISO10605 “Road Vehicles Test Methods for Electrical Disturbances from Electrostatic Discharge”
GB/T17626.2
GB/T17215.322/IEC 62053-23:2003 “Electricity metering equipment (a.c.) – Particular requirements – Part 23: Static meters for reactive energy (classes 2 and 3)”
Specification:
| Product Model | ESD61000-2P |
| Output Voltage | 0.1~20kV±5% |
| Polarity | Positive/Negative |
| Energy Storage Capacitance | 150pF±10% (Replaceable) |
| Discharge Resistor | 330Ω±5% (Replaceable) |
| Current Rise Time | 0.6~1ns |
| Testing Functions | Single, Count, 20pps, Air, Contact, IEC level |
| Trigger Mode | MANUAL/AUTO |
| Number of Discharge | 1~9999 |
| Repetition | 0.05s~99.99s |
| Working Power | AC110~240V, 50/60Hz |
Calibrate Report:
| Output Voltage (kV) | First Peak Current (A) | Current at 30ns (A) | Current at 60ns (A) | Rise Time (ns) |
| 2 | 7.29 | 4.1 | 2.2 | 0.93 |
| 4 | 15.4 | 7.9 | 4.3 | 0.97 |
| 6 | 23.2 | 12.1 | 6.5 | 0.97 |
| 8 | 29.4 | 16.2 | 9.3 | 0.89 |
| -2 | 7.39 | 3.5 | 2.3 | 0.92 |
| -4 | 15.5 | 7.7 | 4.3 | 0.89 |
| -6 | 23.4 | 11.9 | 6.3 | 0.9 |
| -8 | 31.8 | 16.1 | 8.2 | 0.9 |
