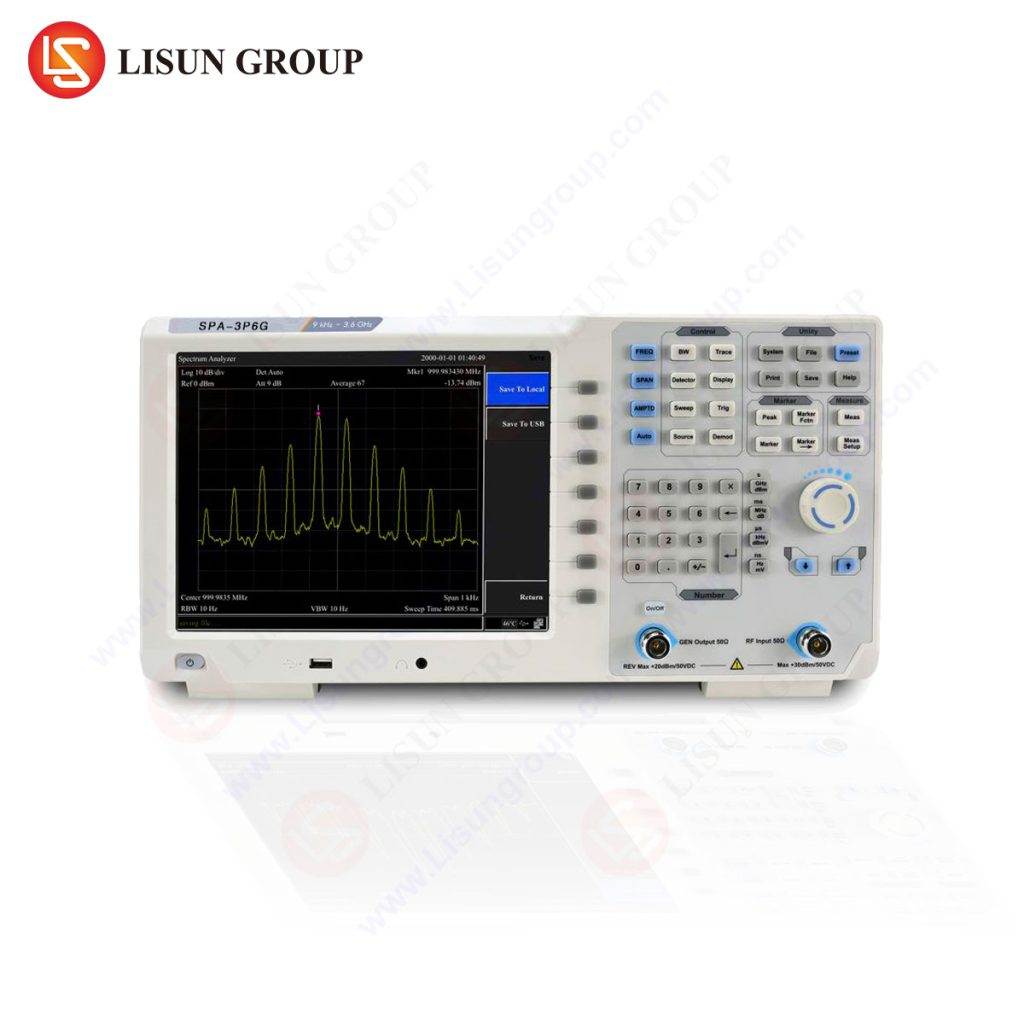

The SPA series Spectrum Analyzer (also called Signal & Spectrum Analyzer, Frequency Analyzers or RF Spectrum Analzers) measures the magnitude of an input signal versus frequency within the full frequency range of the instrument. The primary use is to measure the power of the spectrum of known and unknown signals.
Specification:
| LISUN Model | SPA-1P5G | SPA-3P6G | SPA-7P5G |
| Frequency | |||
| Range | 9kHz-1.5GHz | 9kHz-3.6GHz | 9kHz-7.5GHz |
| Resolution | 1Hz | ||
| Frequency Span | |||
| Range | 0 Hz，100 Hz to maximum frequency of device | ||
| Accuracy | ± span/(swept points -1) | ||
| Internal Reference | |||
| Reference Frequency | 10.000000 MHz | ||
| Reference Frequency Accuracy | ±[(days from last calibrate × freq aging rate) + temperature stability + initial accuracy ] | ||
| Temperature Stability | <2.5ppm (15℃ to 35℃) | <1ppm (15℃ to 35℃) | |
| Aging Rate | <1ppm/year | ||
| Readout | |||
| Marker Frequency Resolution | span / (the number of sweep points -1) | ||
| Uncertainty | ±(freq indication × freq reference uncertainty +1%× span +10%× resolution bandwidth + Marker Frequency Resolution) | ||
| Frequency Counter | |||
| Resolution | 1 Hz, 10 Hz, 100 Hz, 1 kHz | ||
| Accuracy | ±(marker freq × freq reference uncertainty + counter resolution) | ||
| Bandwidth | |||
| Resolution Bandwidth (-3 dB) | 10Hz to 500kHz (in 1 to 10 sequence), 1MHz, 3MHz | ||
| Resolution Filter Shape Factor | <5:1 nominal (Digital implement, similar to Gauss Pattern) | ||
| Accuracy | <5% nominal | ||
| Video Bandwidth (-3 dB) | 10Hz to 3MHz | ||
| Amplitude and Electric Level | |||||
| Amplitude Measurement Range | DANL to +20 dBm, close the preamplifier | ||||
| Reference Electric Level | -80 dBm to +30 dBm, 0.01dBm steps | ||||
| Preamplifier | 20 dB, nominal | ||||
| Input Attenuator Range | 0~40 dB, 1 dB steps | 0~50 dB, 1 dB steps | |||
| Max Input DC Voltage | 50 VDC | ||||
| Max Continuous Power | +30dBm, average continuous power | ||||
| Displayed average noise level（DANL）Input attenuation 0 dB, 1Hz resolution bandwidth | |||||
| Preamp Off | 1 MHz~10 MHz -140dBm (nominated) | ||||
| 10 MHz~1GHz -140dBm (nominated) | |||||
| SPA-1P5G: 1GHz~1.5 GHz -138 dBm (nominated) | |||||
| SPA-3P6G: 1GHz~3.6 GHz -138 dBm (nominated) | |||||
| SPA-7P5G: 1GHz~3.6GHz -138dBm (nominated); 4GHz~5GHz, -133dBm (nominated) | |||||
| 5GHz~6GHz, -128dBm (nominated); 6GHz~7GHz-123dBm (nominated) | |||||
| 7GHz~7.5GHz, -118dBm (nominated) | |||||
| Preamp On | 1 MHz~10 MHz, -160dBm (nominated) | ||||
| 10 MHz~1GHz, -160dBm (nominated) | |||||
| SPA-1P5G: 1GHz~1.5 GHz, -158 dBm (nominated) | |||||
| SPA-3P6G: 1GHz~3.6 GHz, -158 dBm (nominated) | |||||
| SPA-7P5G: 1GHz~4GHz, -158dBm( nominated ); 4GHz~5GHz, -153dBm (nominated) | |||||
| 5GHz~6GHz, -148dBm (nominated); 6GHz~7GHz, -143dBm (nominated) | |||||
| 7GHz~7.5GHz, -138dBm (nominated) | |||||
| Phase Noise | 20 ℃ ~30 ℃, fc=1 GHz | ||||
| Phase Noise | <-82 dBc/Hz @10 kHz offset | <-98 dBc/Hz @10 kHz offset | |||
| <-100 dBc/Hz @100 kHz offset | |||||
| <-110 dBc/Hz @1 MHz offset | |||||
| Level Display Range | |||||
| Log Scale Coordinate | 1dB ~255dB | ||||
| Linear Scale Coordinate | 0 to reference level | ||||
| Level Unit | dBm, dBuW, dBpW, dBmV, dBuV, W, V | ||||
| Points | 201~1001 | ||||
| Number of Traces | 5 | ||||
| Detectors | Positive-peak, negative-peak, sample, normal, RMS | ||||
| Trace Functions | Clear write, Max Hold, Min Hold, View, Blank, Average | ||||
| Frequency response (20℃ ~30℃，30%~70% relative humidity, 20 dB input attenuation, reference 50 MHz) | |||||
| Preamp Off | ±0.8 dB; | ||||
| Preamp On | ±0.9 dB; | ||||
| Accuracy | |||||
| Input Attenuation Switching Uncertainty | 20℃ ~30℃, fc=50 MHz, Preamplifier Off, 20dB RF attenuation, input signal 1~40 dB ±0.5 dB | ||||
| Absolute Amplitude Uncertainty | 20℃ ~30℃, fc=50 MHz, RBW=1 kHz, VBW=1 kHz, peak detector, 20 dB RF attenuation | ||||
| Preamplifier Off ±0.4 dB, input signal= -20dBm | |||||
| Preamplifier On ±0.5 dB, input signal= -40dBm | |||||
| Uncertainty | Input signal range 0dbm~-50dbm | ||||
| ±1.5 dB | |||||
| VSWR | Input 10 dB RF attenuation, 1 MHz~1.5GHz | Input 20 dB, 1 MHz~7.5GHz | |||
| <1.5, nominal | |||||
| Distortion and Spurious Response | |||||
| Second Harmonic Distortion | fc ≥ 50 MHz, Preamp off, signal input -30 dBm, 0 dB RF attenuation, 20 ℃ to 30 ℃ | ||||
| -65dbc | |||||
| Third-order Intermodulation | fc ≥ 50 MHz | ||||
| +2 dBm (NSA1015/NSA1032/NSA1036) | |||||
| +10dBm (NSA1075) | |||||
| 1 dB Gain Compression | fc ≥ 50 MHz, 0 dB RF attenuation, Preamp off, 20 ℃ to 30 ℃ | ||||
| +2 dBm, nominal | |||||
| Residual Response | connect 50 Ω load at input port, 0 dB input attenuation, 20 ℃ to 30 ℃ | ||||
| <-85dBm, nominated | |||||
| Input Related Spurious | -30 dBm signal at input mixer, 20 ℃ to 30 ℃ | ||||
| <-60 dBc | |||||
| Sweep time and triggering | |||||
| Span Range | 100Hz≤SPAN≤3GHz 10ms to 3000s | ||||
| Zero sweep width 1ms to 3000s | |||||
| Mode | Continue, single | ||||
| Trigger | Free run, video | ||||
| Tracking Generator | |||||
| Output Frequency Range | 100 kHz~1.5 GHz | 100 kHz~3.6 GHz (Tracking generator) | 100 kHz~7.5 GHz (Tracking generator) | ||
| 35 MHz~3.6 GHz (Tracking generator) | |||||
| Output Power Level Range | -30 dBm~0 dBm | -40 dBm~0 dBm | |||
| Output Power Level Resolution | 1dB | ||||
| Output FLatness | +/-3 dB | ||||
| Maximum Safe Reverse Level | Average total power: +30 dBm, DC: ±50 VDC | ||||
| Inputs and Outputs | |||||
| Front Panel RF Input Connector | 50 Ω, N-type female | ||||
| Front Panel Track Generator Output | 50 Ω, N-type female | ||||
| 10 M Reference Input | 50 Ω, N-type female | ||||
| Communication Port | USB HOST, USB DEVICE, LAN, earphone port, REF and VGA | ||||
| General technical specification | |||||
| Display | TFT LCD, 10.4 inches | ||||
| Weight (without package) | About 5 kg | ||||
| Dimension (W × H × D) | 421 × 221 × 115 (mm) | ||||
| Working Temperature | 0~40 ℃ | ||||
| Storage Temperature | -20 °C to +60 °C | ||||
| Power | 100V~240V 50/60Hz | ||||

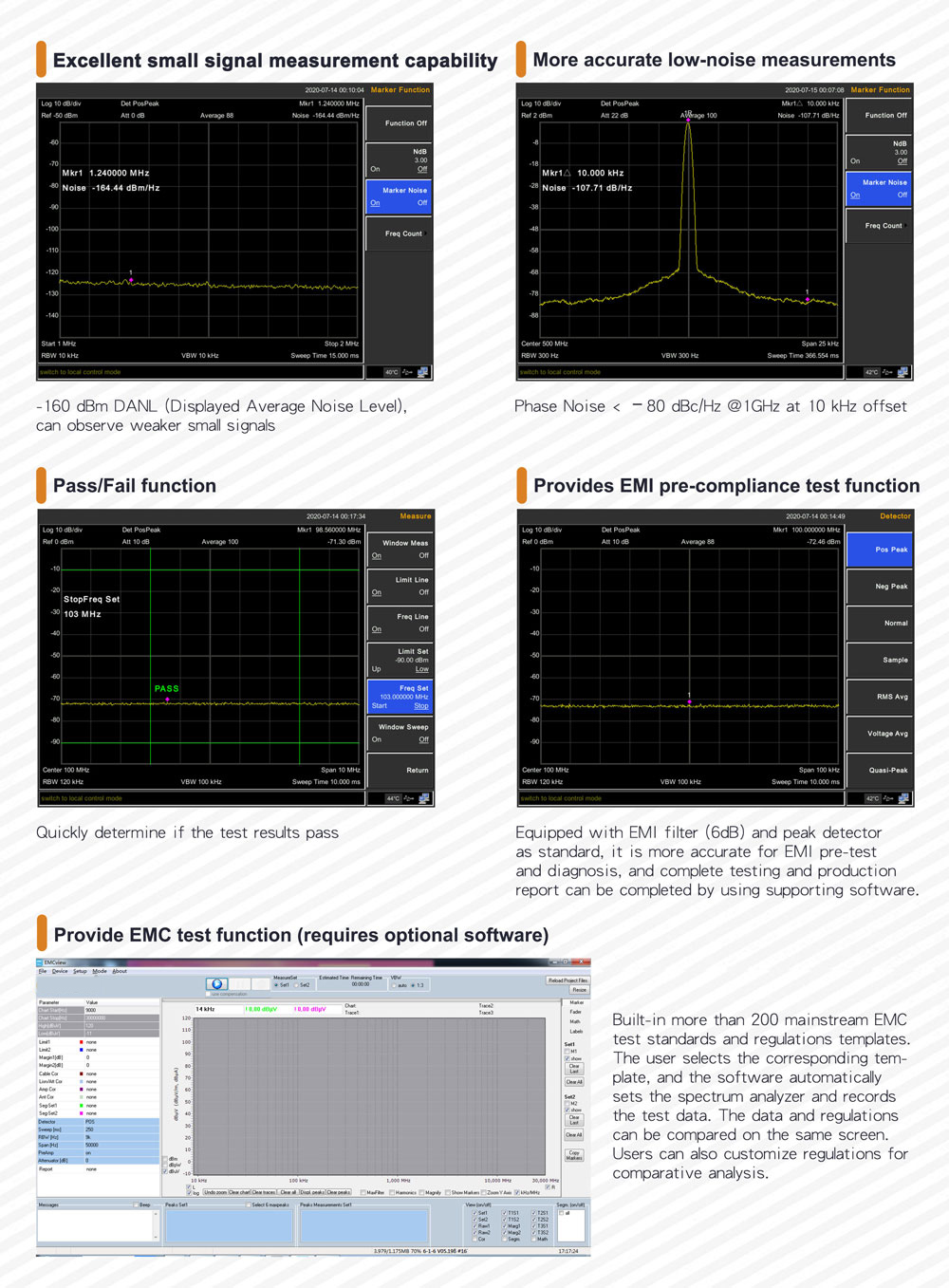

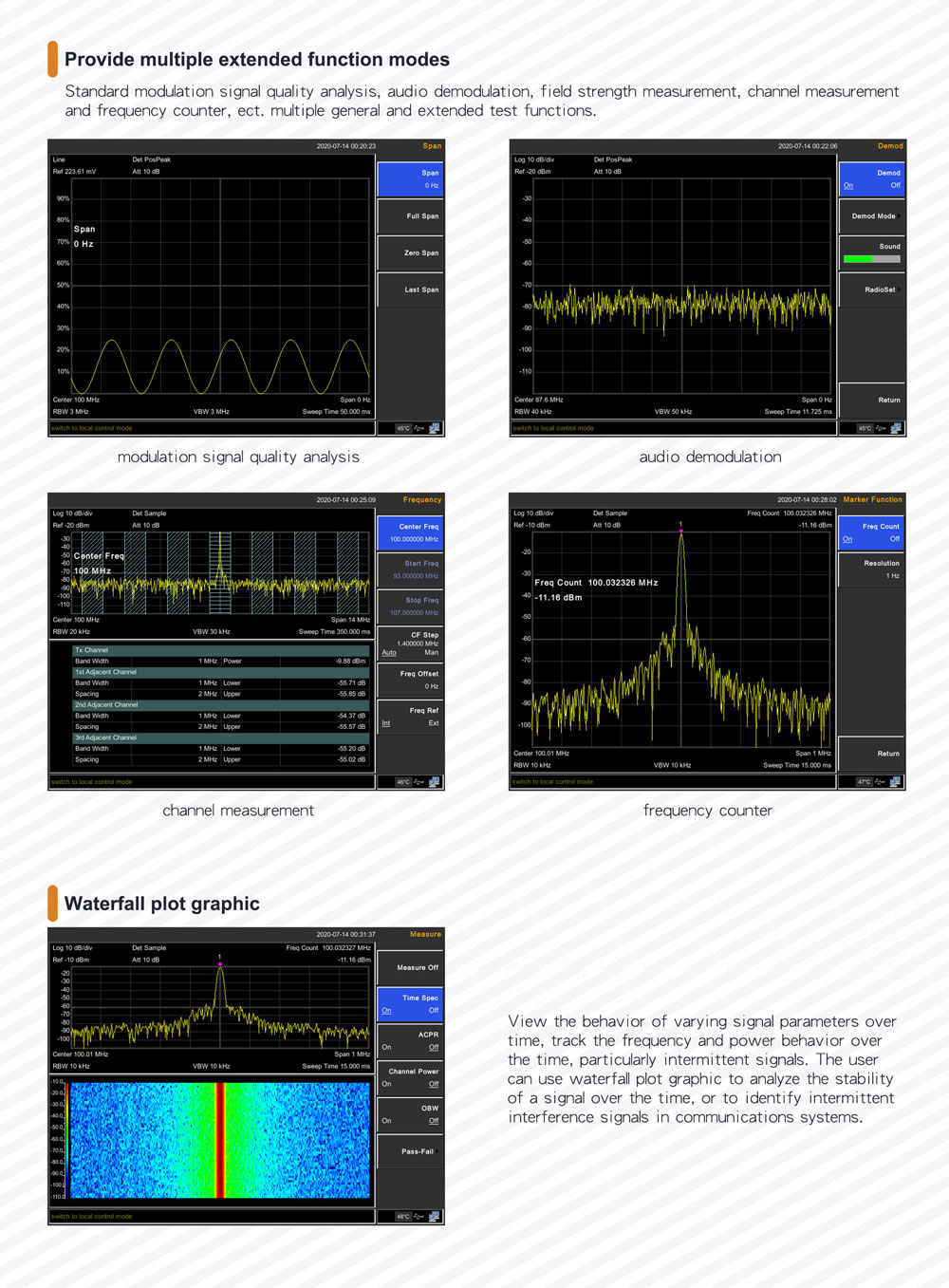

Measuring Screen:
Measuring screen
Measuring screen
