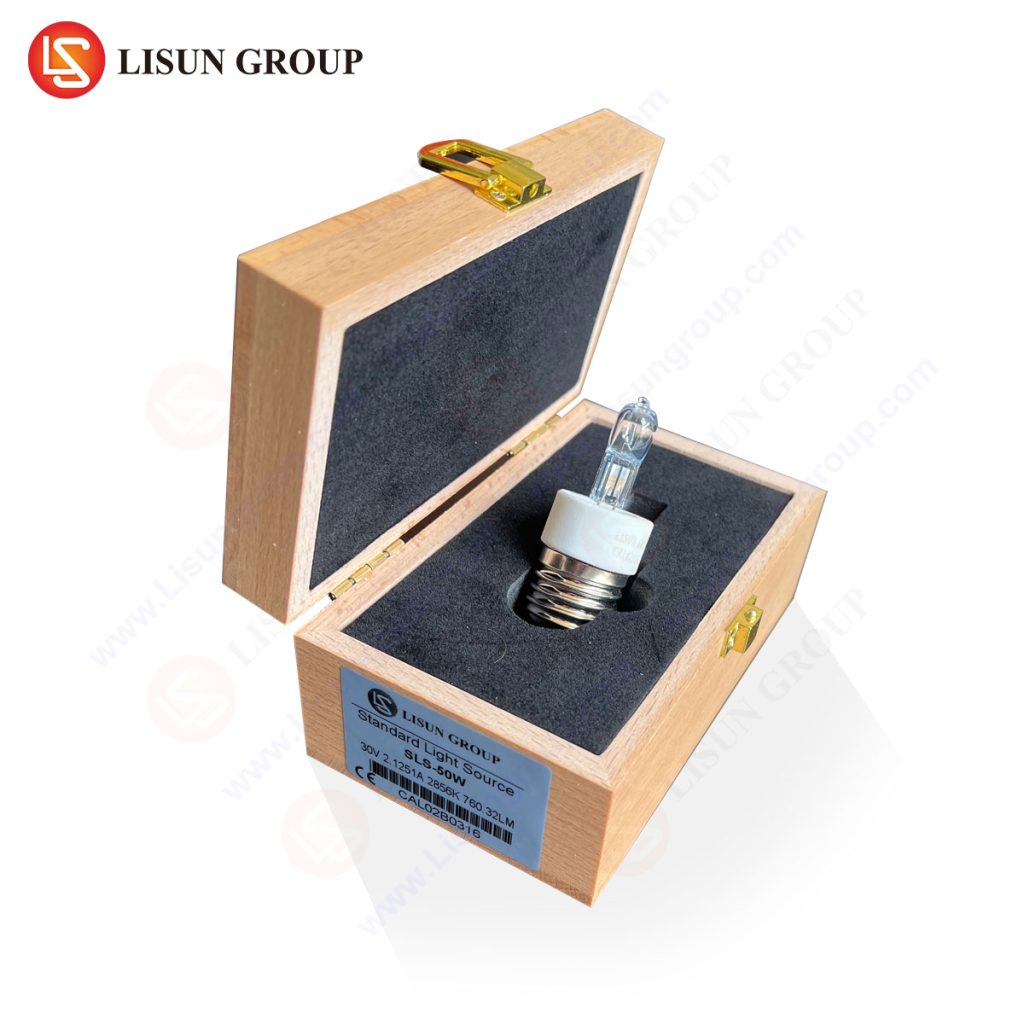

The SLS-50W/SLS-100W Standard Light Source is used to calibrate LISUN LPCE-2 High Precision Spectroradiometer Integrating Sphere System or LPCE-3 CCD Spectroradiometer Integrating Sphere Compact System. The Standard Light Source Calibrate Certificate can be traced to NIM and NIST. Integrating spheres of different sizes require calibration using standard lamps of different powers.
| Integrating Sphere Size | Standard Light Source (350-800nm) | Standard Light Source (350-1050nm) |
| 0.3m/0.5m | SLS-10W | SLS-10WIR |
| 1m/1.5m/1.75m | SLS-50W | SLS-50WIR |
| 2m/2.5m/3m | SLS-100W | SLS-100WIR |

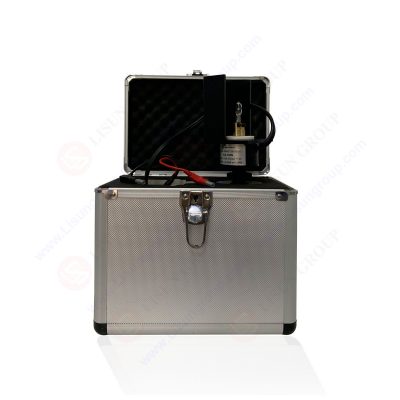

The SLS-150W Standard Intensity Light Source is used to calibrate LSG Series Goniophotometer or Goniospectroradiometer. The Standard Intensity Light Source Calibrate Certificate can be traced to NIM and NIST.
SLS-150W Standard Intensity Light Source
The SLS-UV UV Standard Light Source with Power Source was used to calibrate LISUN UV Lamp Spectroradiometers Test System. The UV spectrum calibration system includes a UV standard light source and a Special power supply for UV standard light source. The standard light source is a deuterium light source. Deuterium lamp spectrum is continuous, it is an ideal UV light source for photometric analysis instruments. In order to ensure the stability of the light source and prolong its service life, the standard light source is equipped with a special power supply.
Specification:
• Preheating voltage: 2.5V
• Preheating current: 4A
• Trigger voltage: 350V
• Lamp current: 300mA
• Wavelength range: 200-400nm
