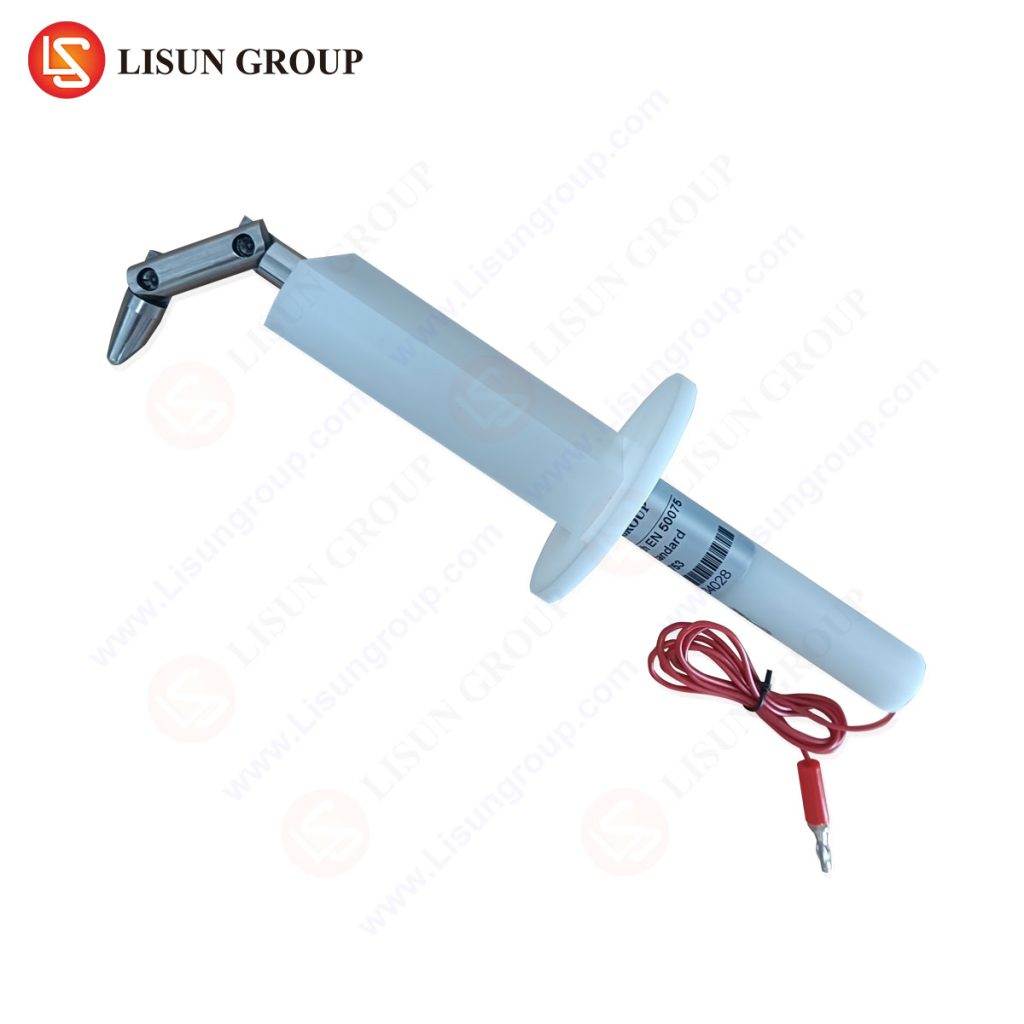

IEC62109-1 Figure D.1 Test Finger
Technical Parameters:
1. Knurled Finger Diameter: 12 mm
2. Knurled Finger Length: 80 mm
3. Baffle Plate Diameter: 50 mm
4. Baffle Plate Length: 100 mm
5. Baffle thickness: 20 mm
Standard:
IEC 62109-1 “Safety of power converters for use in photovoltaic power systems – Part 1: General requirements” Figure D.1

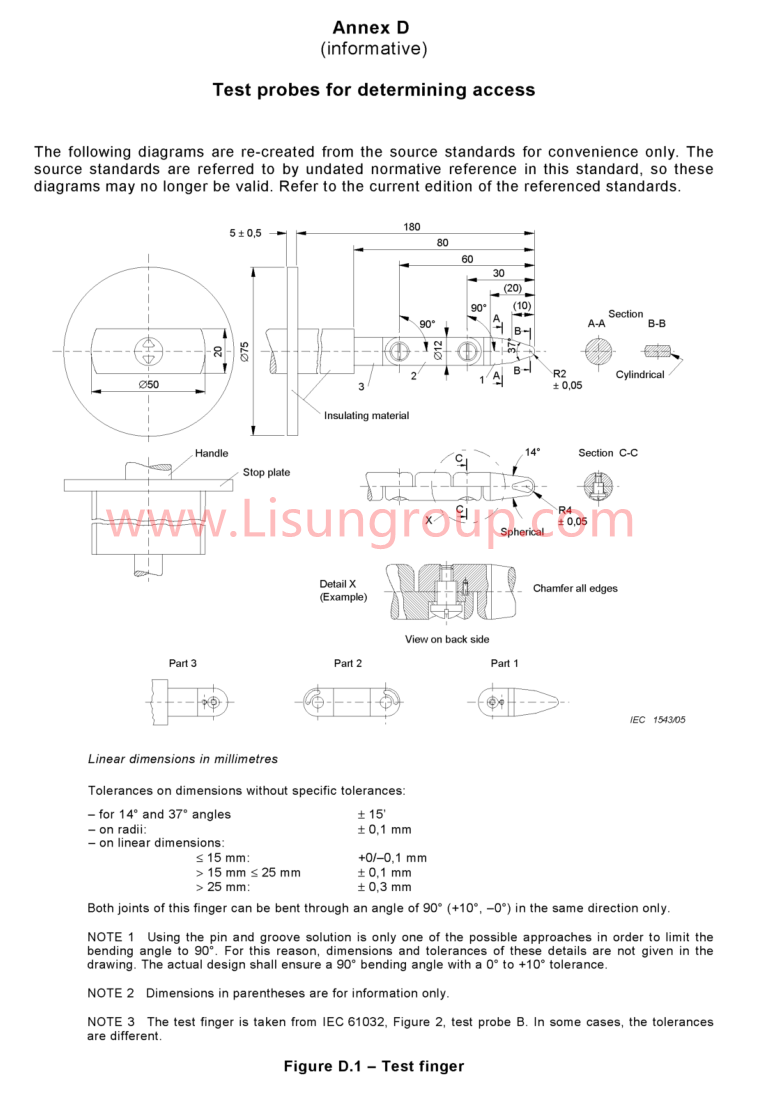

Test Finger of IEC 62109-1 Figure D.1
