Test Probe Kits of IEC 60065

Product No:

Leave a Message

=

Test Probe Kits of IEC 60065

Leave a Message

=
Product Description

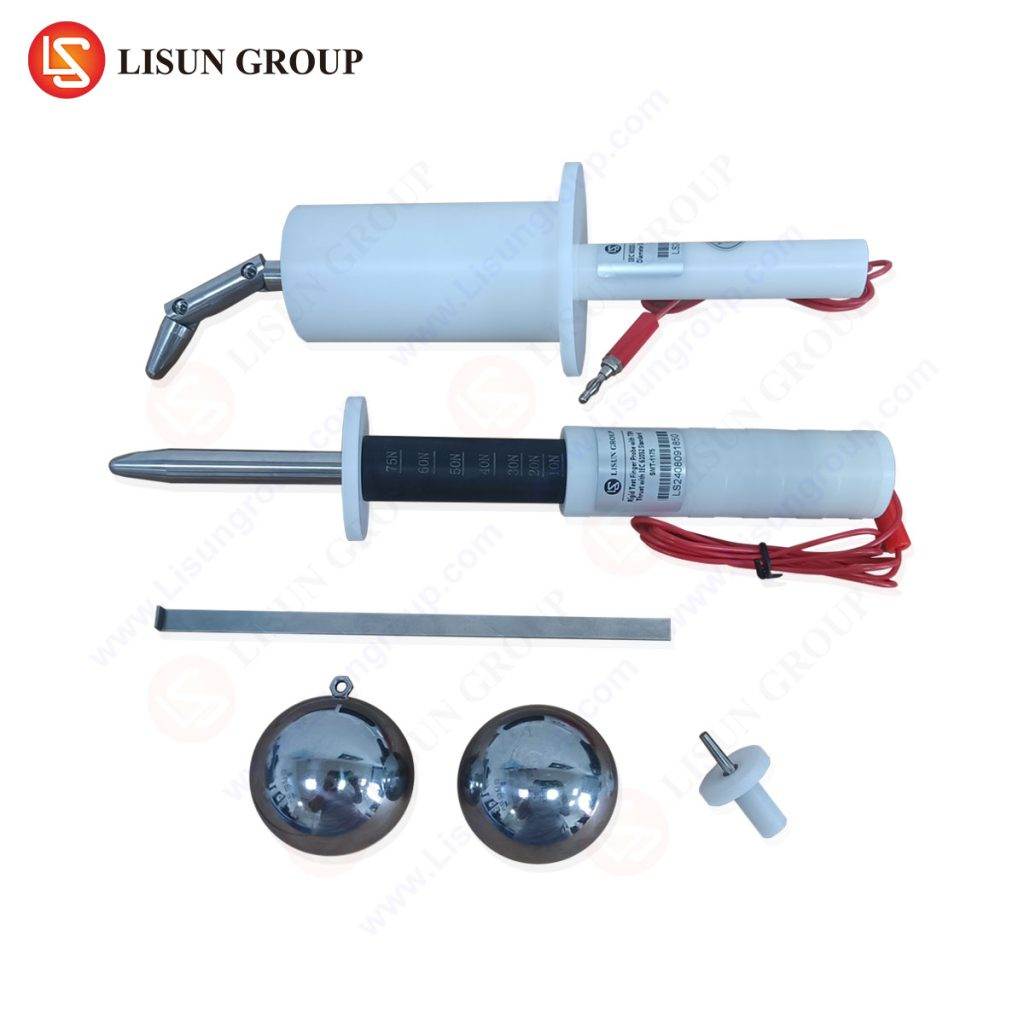

Consists of five test probe:

1.  IEC61032 Figure 2 – Test Finger: LISUN model is SMT-PBC
2.  IEC61032 Figure 9 – Test Pin: LISUN model is SMT-1213
3.  IEC61032 Figure 7 – Rigid Test Finger Probe: LISUN model is SMT-1175
4.  IEC60065:2005 Figure 4 – Test Hook: LISUN model is SMT-S15
5.  IEC60065:2005 Figure 8 – Impact Test Using a Steel Ball: LISUN model is SMT-B50H
6.  IEC61032 Figure 5 – Test Ball: LISUN model is SMT-1205

Standard:
IEC 61032 “Protection of persons and equipment by enclosures – Probes for verification”
IEC 60065 “Audio, video and similar electronic apparatus – Safety requirements”

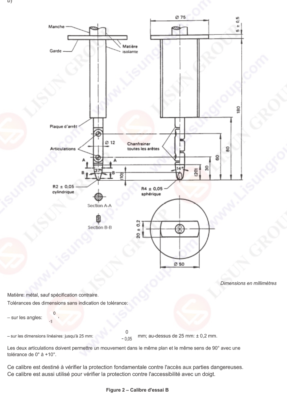

IEC61032 Figure 2 Test Finger

IEC61032 Figure 2 – Test Finger

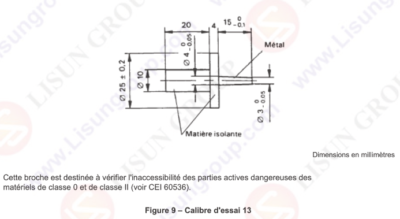

IEC61032 Figure 9 - Test Pin

IEC61032 Figure 9 – Test Pin

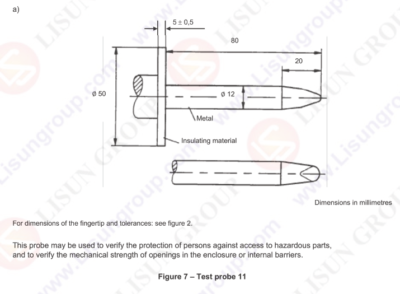

IEC61032 Figure 7 - Rigid Test Finger Probe

IEC61032 Figure 7 – Rigid Test Finger Probe

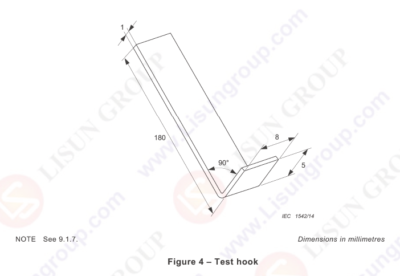

IEC60065:2005 Figure 4 - Test Hook

IEC60065:2005 Figure 4 – Test Hook

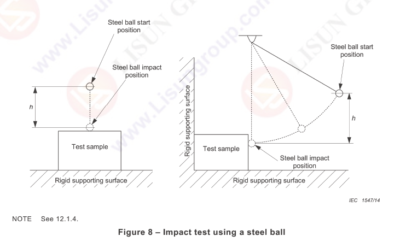

IEC60065:2005 Figure 8 - Impact Test Using a Steel Ball

IEC60065:2005 Figure 8 – Impact Test Using a Steel Ball

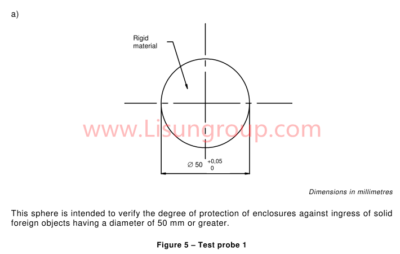

IEC61032 Figure 5 - Test Ball

IEC61032 Figure 5 – Test Ball
