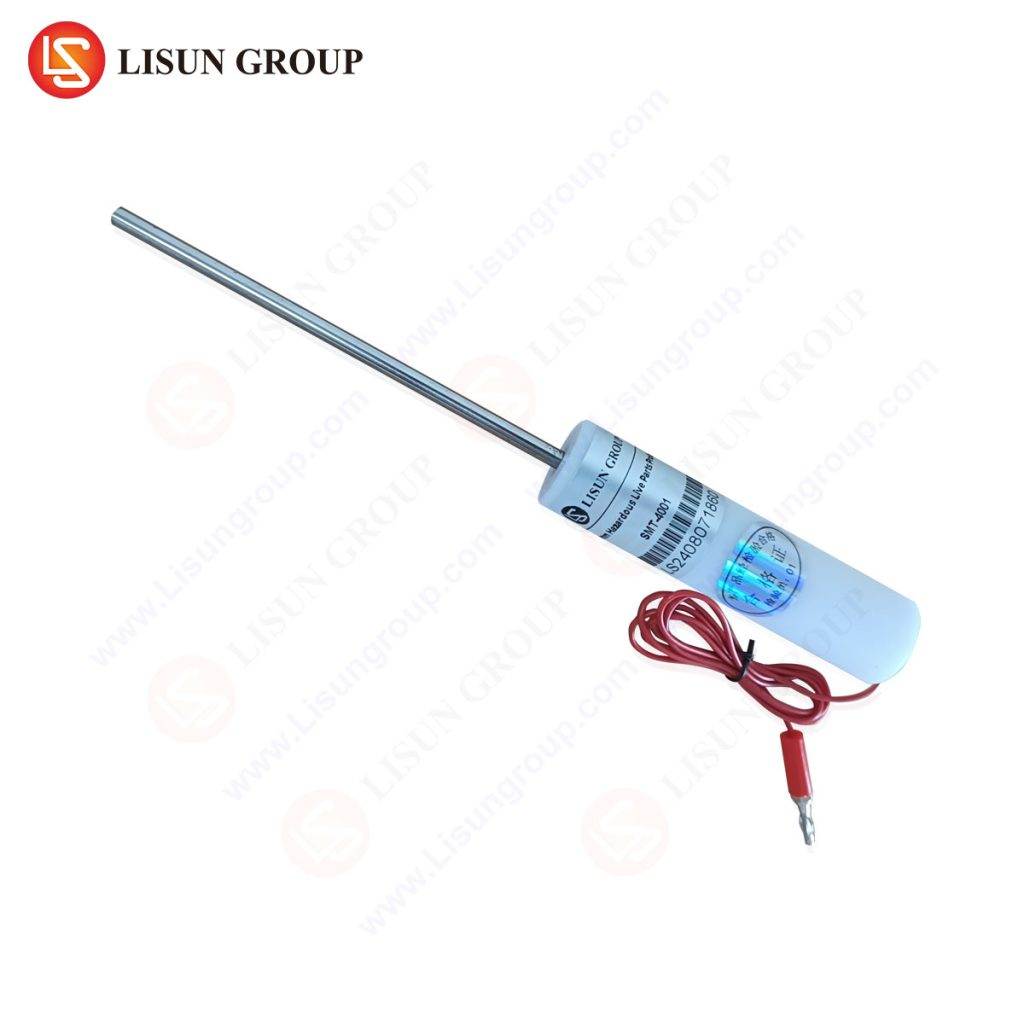

The EN61010-1 6.2.3 test pin is a 4mm diameter, 100mm long pin with a cable. It complies with standards including IEC60065:9.1.3, GB 8898:9.1.3, EN 61010-1, UL 3101-1, and CSA 1010-1.

Technical Parameter:
1. Rod length: 100 mm
2. Rod diameter: 4 mm
3. Handle diameter: 10 mm
4. Handle length: 100 mm

Standard:

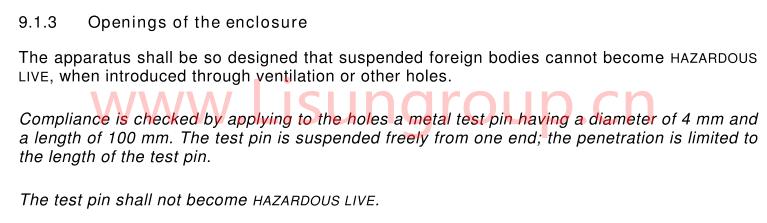

IEC 60065 “Audio, video and similar electronic apparatus – Safety requirements”

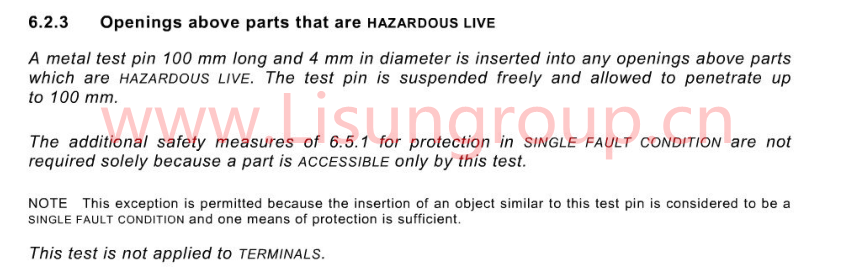

IEC 61010-1 “Safety requirements for electrical equipment for measurement, control, and laboratory use – Part 1: General requirements”
UL 3101-1 “UL Standard for Safety Electrical Equipment for Laboratory Use; Part 1: General Requirements”
CSA 1010-1 “SAFETY REQUIREMENTS FOR ELECTRICAL EQUIPMENT FOR MEASUREMENT, CONTROL, AND LABORATORY USE – GENERAL REQUIREMENTS”
