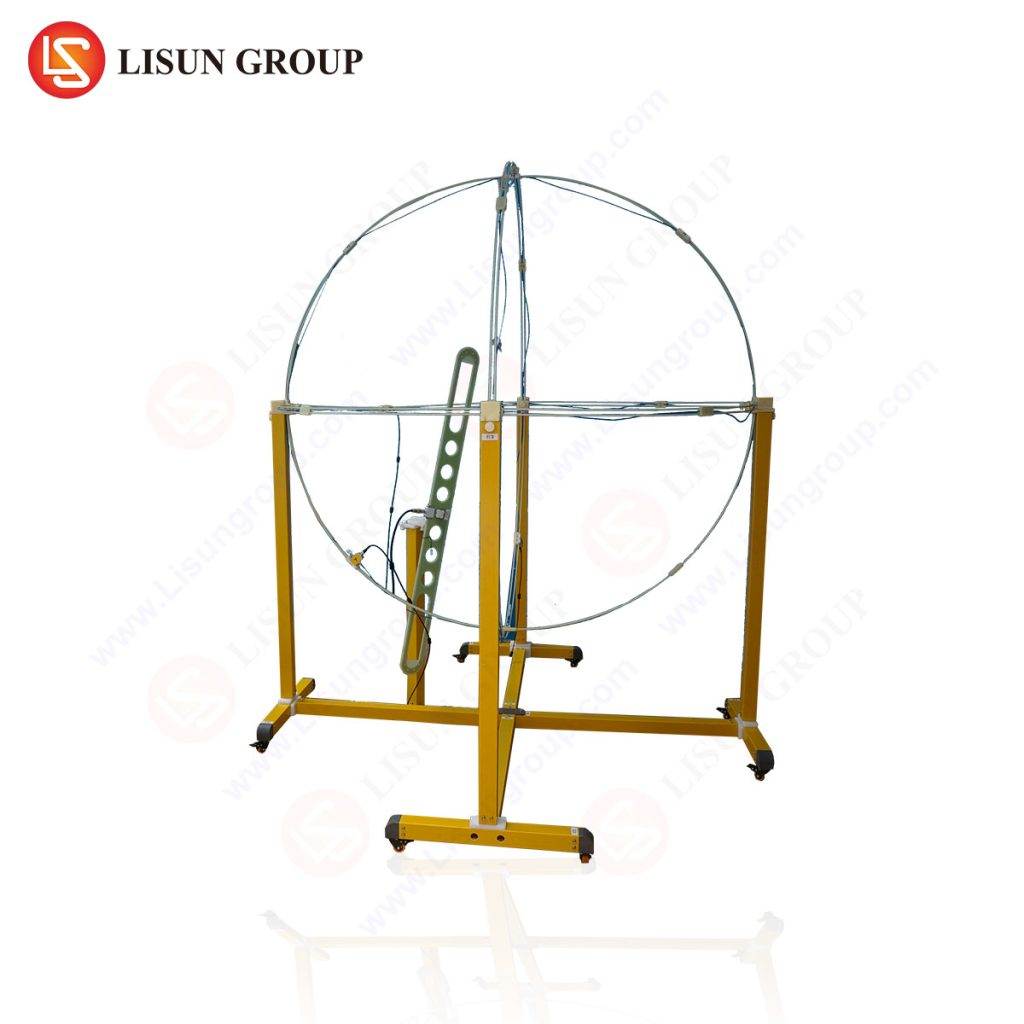

The three loop antenna VVLA-30M  is a standard measurement antenna according to CISPR15-2018/GB17743-2007 , EN55015 standard <Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment>. It can work with LISUN EMI-9KA / EMI- 9KB EMI Receiver System for EUT magnetic field radiation measurement between X, Y and Z planes. The antenna measurement is with high accruacy. For details on LISUN’s new three-loop antenna design, please click here. It not only greatly facilitates installation, but also includes a liftable and expandable test platform with a maximum load of 50kg (customers do not need to prepare a test table) .

Standard:
CISPR15-2018/EN55015, GB17743-2007 “Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment “

Characteristic:
• Frequency range: 9KHz ~30MHz;
• Diameter: 2m;
• It can switch between X, Y and Z planes; No need to move EUT or loop during measurement process;
• The sensor coefficient of current probe: 0dB;
• Impedance: 50Ω/BNC;
• The three-loop antenna already includes a self-calibrating antenna. The antenna has been calibrated in the factory, and users can also use it for recalibration.
