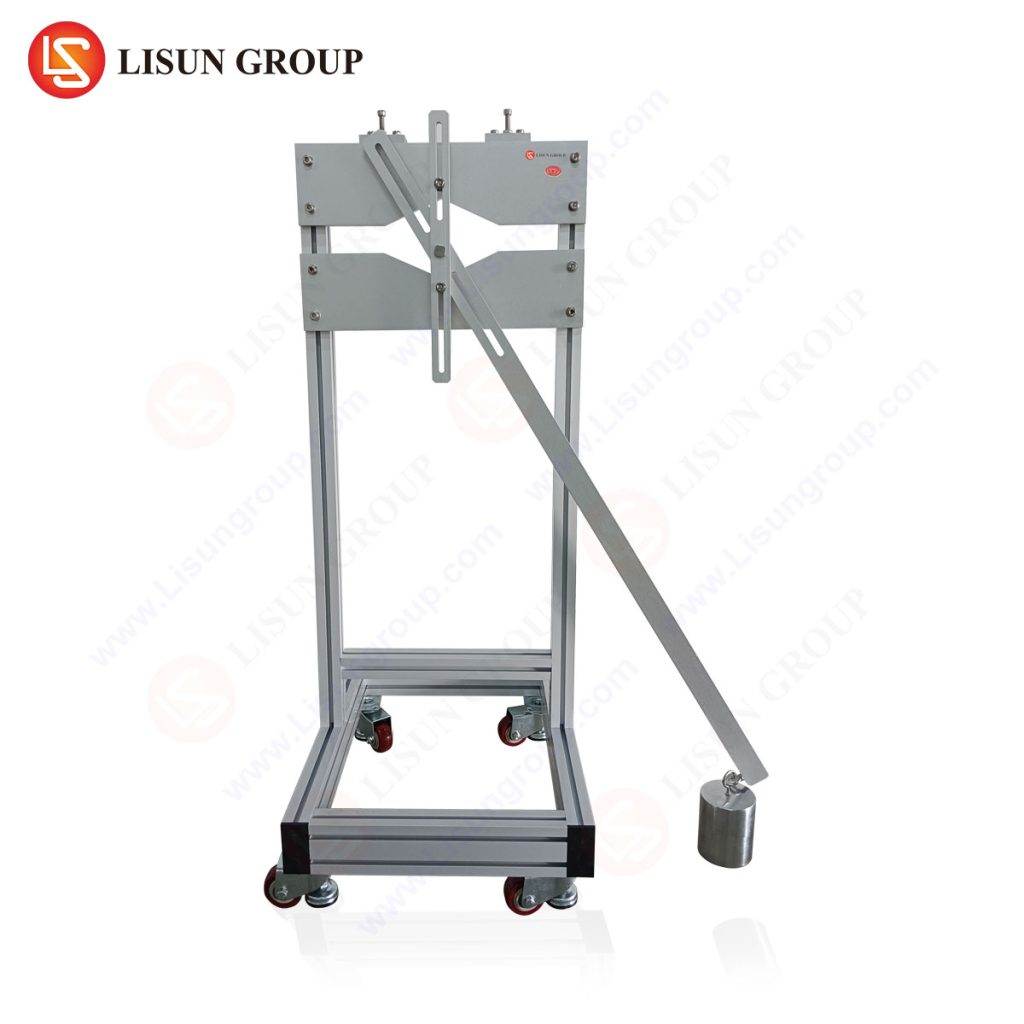

The torque test apparatus for ground recessed luminaires is designed and manufactured in full compliance with IEC 60598-2-13: 2016 Clause 13.6.2.1 Figure 3 (GB 7000.213-2008 Clause 6.2.1 Torque Test Figure 3), and is suitable for testing the torque resistance requirements of ground recessed luminaires.
Specification:
| Item Name | Specification |
| Frame | Aluminum profile and aluminum plate composite structure, equipped with movable brake casters |
| Weight | 50N with hook |
| Dimensions | L1220mm*W450mm*H1250mm |
Standard:
IEC 60598-2-13 (GB 7000.213) “Luminaires – Part 2-13: Particular requirements – Ground recessed luminaires” Clause 13.6.2.1 Figure 3

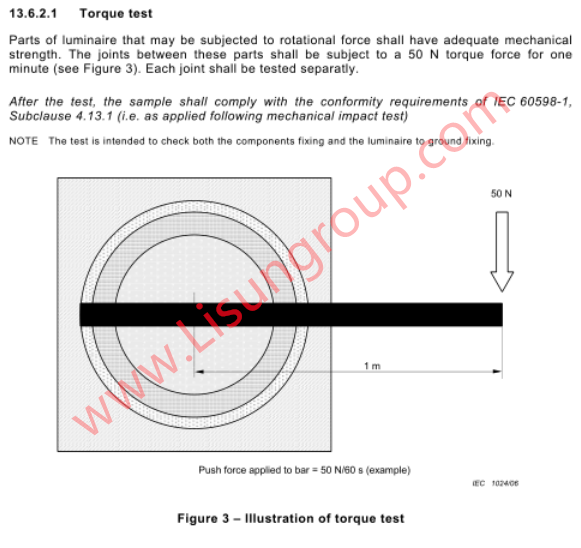

IEC 60598-2-13: 2016 Figure 3
