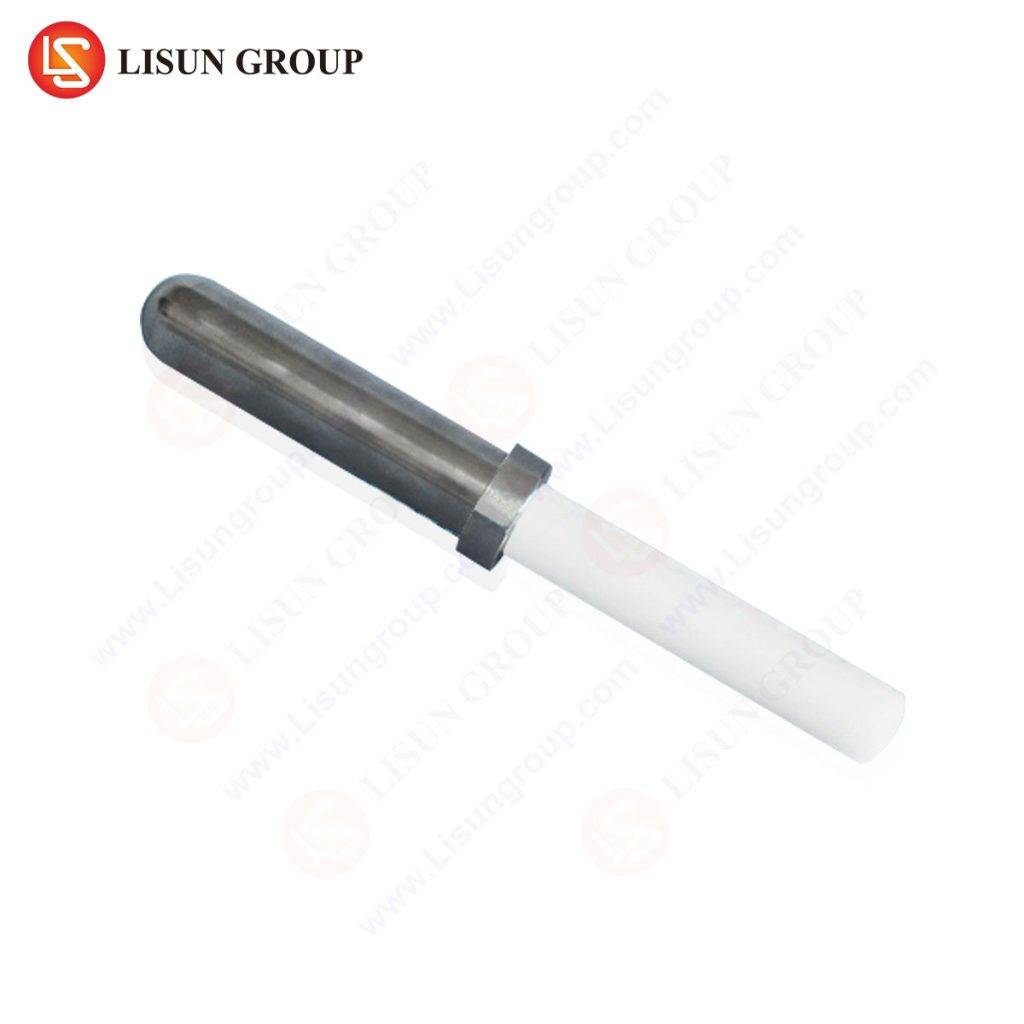

UL 507 Figure 8.2 S2140ATest Probe for Moving Pars of Stationary Fans

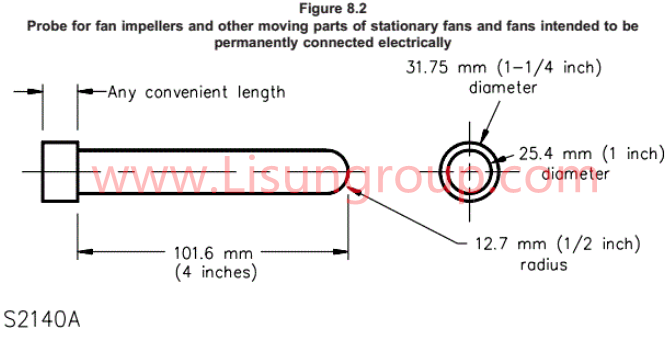

Probe for fan impellers and other moving parts of stationary fans and fans intended to be permanently connected electrically.
Technical parameters:
1, Straight Finger Diameter:25.4 mm(1 inch)
2, Straight Finger Total Length:101.6 mm(4 inch)
3, Head Radius: R12.7 mm(1/42 inch)
4, Tail Diameter:31.75 mm(1-1/4 inch)
5, According to: UL507 (S2140A)Fig.8.2, UL1278, UL1026.
UL Test Probe of UL507
